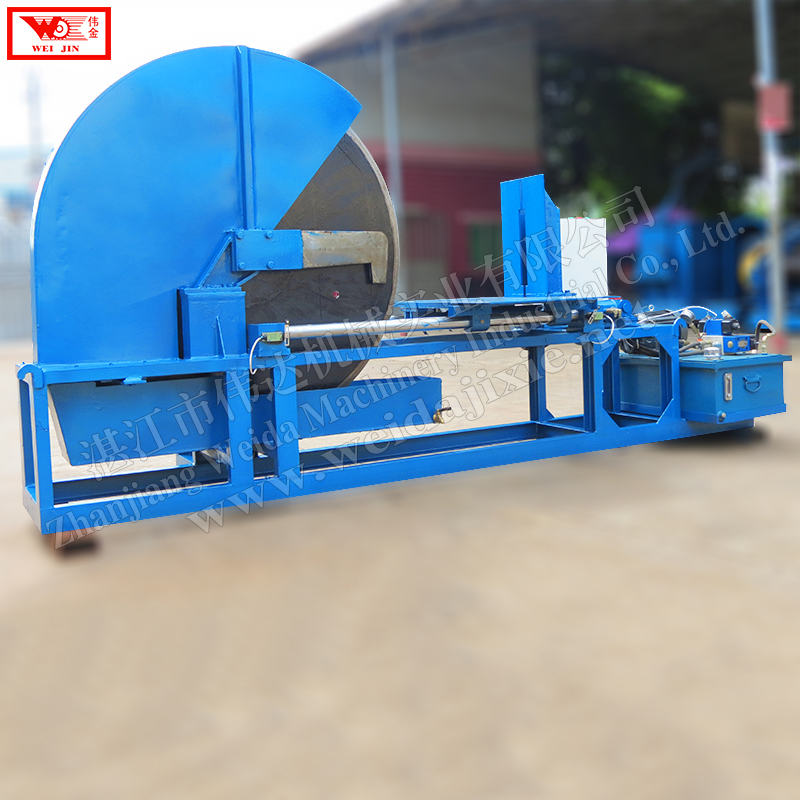

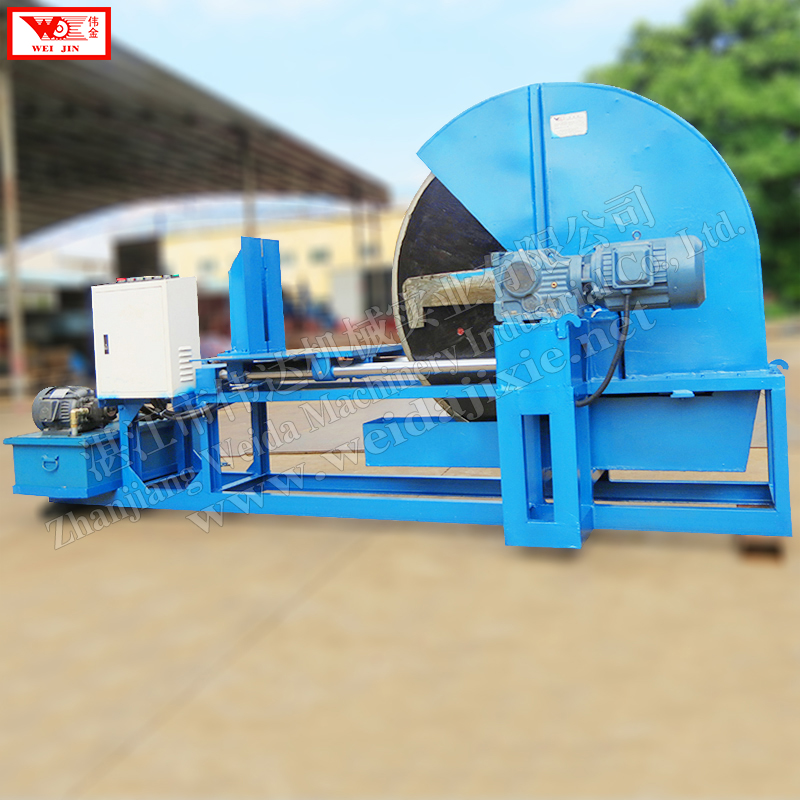

Rotating Disc Rubber Cutting Machine
This rotating-disc type cutting machine is designed for processing natural, synthetic, and reclaimed rubber. It cuts rubber blocks into slices, granules, and bars, and can also process other materials.
Technical Specifications
Product Overview
Versatile Rubber Processing

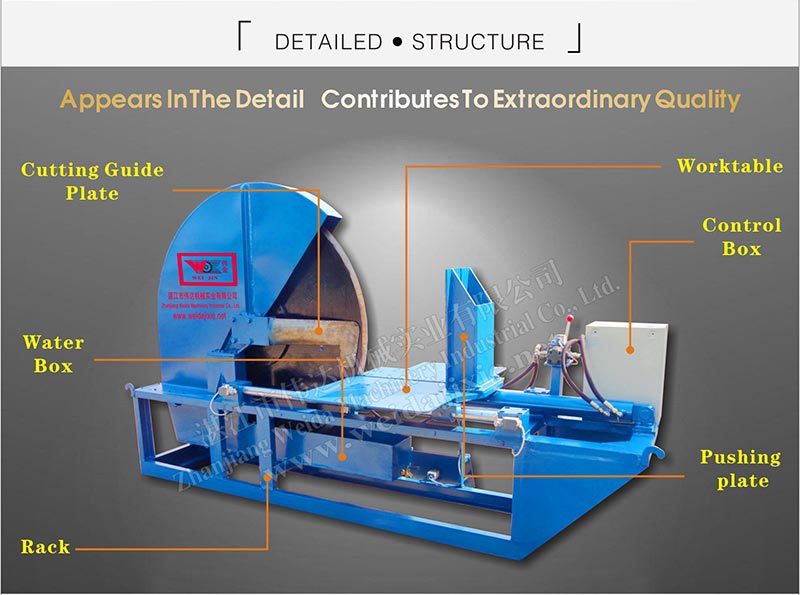

This rotating-disc cutting machine is engineered for the efficient processing of natural, compound, reclaimed, and synthetic rubber blocks. It features a robust design that allows for precise cutting into various forms including blocks, slices, granules, and bars. The machine utilizes a hydraulic-controlled worktable with self-lubricating moving parts to ensure minimal friction and extended service life.
- Machine Type
- Rotating-disc rubber cutting machine
Technical Specifications
Key Performance Metrics
50 r/min
Rotational Speed
5 Mpa
Working Pressure
Comparison Table
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Power Consumption | 4+2.2kw | 4+2.2kw |
| Production Capacity | 2t/h | 3t/h |
Applications

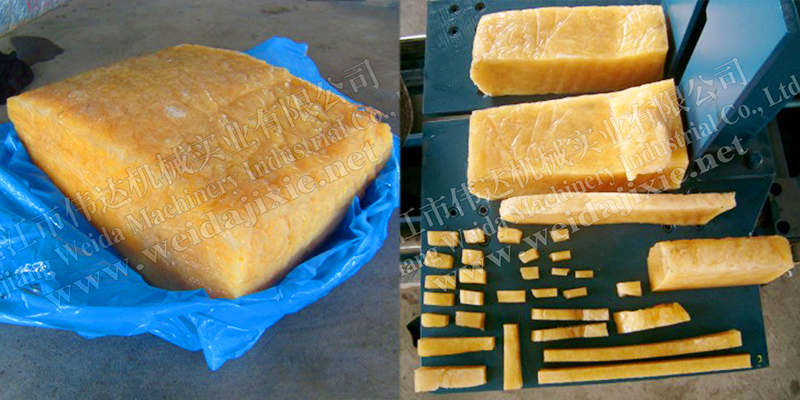

Output Forms
- Blocks
- Slices
- Granules
- Bars
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic Rubber
