Rotary Table and Swivel Set for Drilling Rigs
This set includes rotary tables and swivels used in drilling operations. The rotary table provides rotational force, while the swivel allows the drill string to rotate while remaining stationary.
Technical Specifications
Overview
High-Performance Drilling Components
This professional-grade rotating system set includes precision-engineered rotary tables and heavy-duty swivels designed for demanding drilling operations. With rotary table openings ranging from 17 1/2" to 49 1/2" and swivel capacities from 135 to 675 metric tons, these components provide the reliability needed for petroleum prospecting. These systems support advanced drilling techniques by ensuring smooth rotation and stable suspension for the drill string.

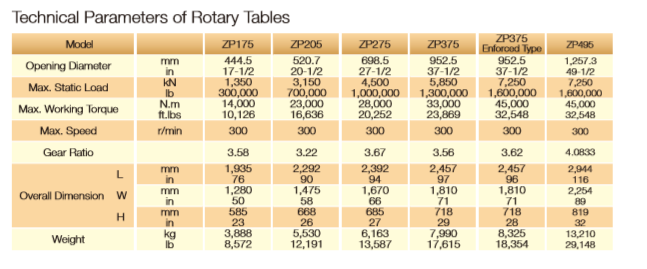

Rotary Table Specifications
Key Performance Data
| Model | Opening (in) | Max Static Load (kN) | Max Speed (r/min) |
|---|---|---|---|
| ZP175 | 17-1/2 | 1,350 | 300 |
| ZP205 | 20-1/2 | 3,150 | 300 |
| ZP275 | 27-1/2 | 4,500 | 300 |
| ZP375 | 37-1/2 | 5,850 | 300 |
| ZP375 Enforced | 37-1/2 | 7,250 | 300 |
| ZP495 | 49-1/2 | 7,250 | 300 |
- Available Models
- ZP175ZP205ZP275ZP375ZP375 EnforcedZP495

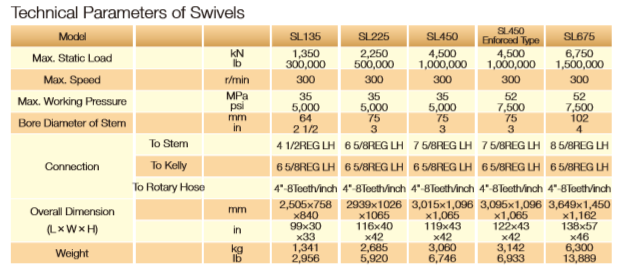

Swivel Specifications
Swivel Series
- SL135
- SL225
- SL450
- SL450 Enforced
- SL675
Swivel Performance
675 Metric Tons
Max Capacity
300 r/min
Max Speed
52 MPa
Max Pressure
