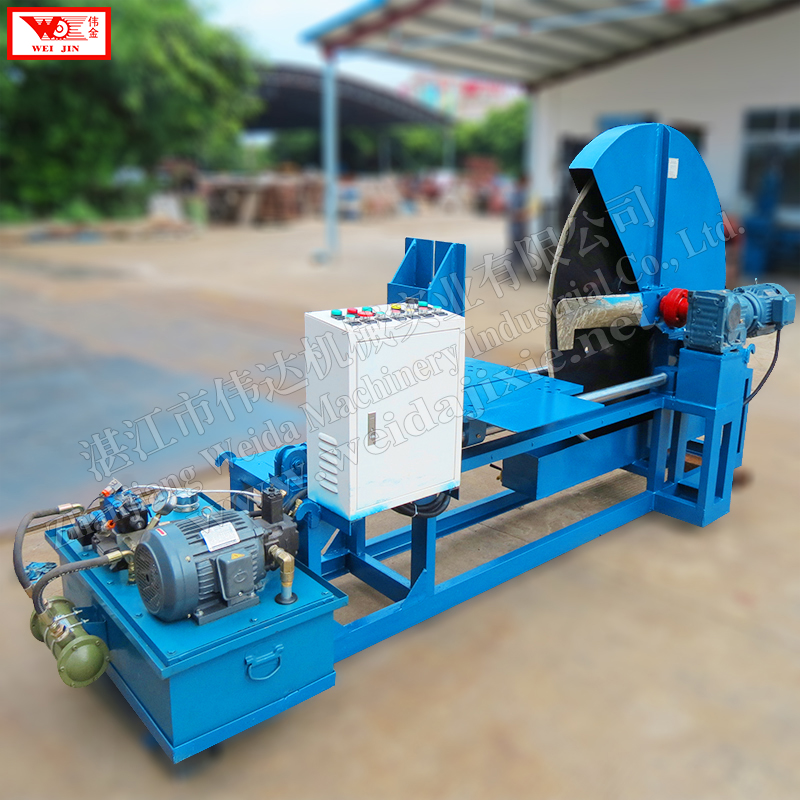

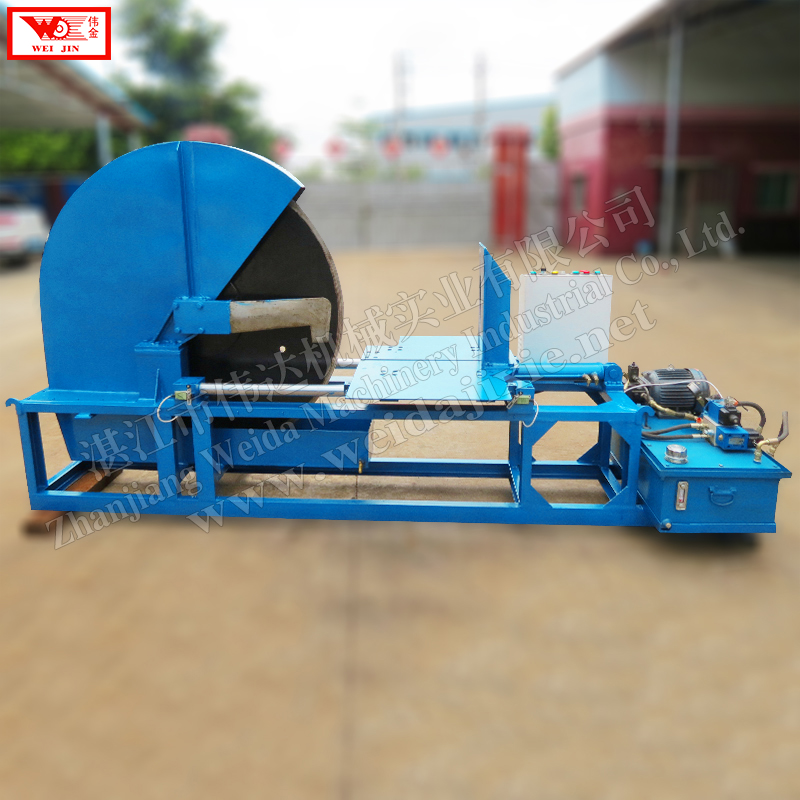

Rotary Rubber Cutting Machine
This rotating-disc cutting machine is designed for processing various types of rubber. It cuts rubber blocks into smaller pieces like blocks, slices, granules, and bars.
Technical Specifications
Overview
High-Efficiency Rotary Rubber Cutting

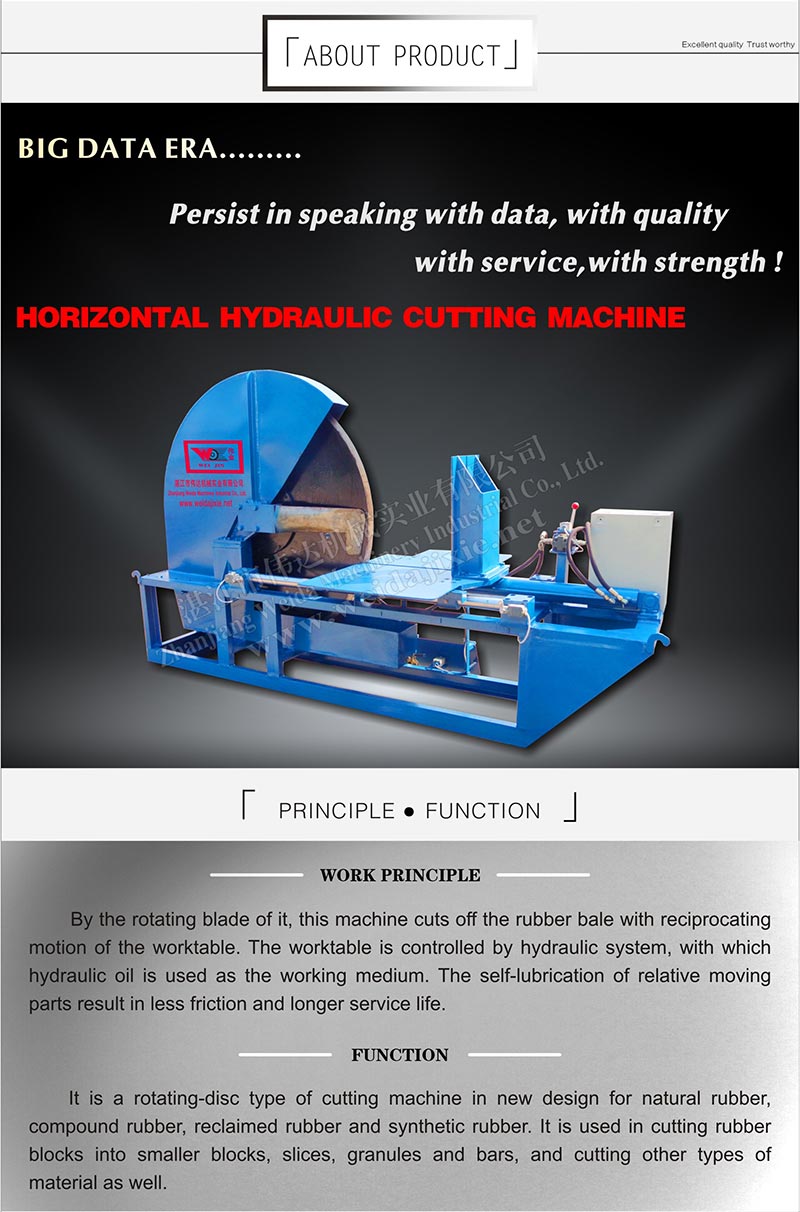

This industrial-grade, rotating-disc rubber cutting machine is engineered to process various rubber materials, including natural, synthetic, compound, and reclaimed rubber. Designed for high-performance size reduction, it efficiently transforms large rubber blocks into manageable slices, granules, bars, or smaller blocks. Its robust construction and reliable hydraulic system ensure consistent performance and operational durability in demanding manufacturing environments.
Technical Specifications
Model Specifications
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
| Production Capacity | 2t/h | 3t/h |
Capabilities
- Compatible Materials
- Natural RubberSynthetic RubberCompound RubberReclaimed Rubber
- Output Forms

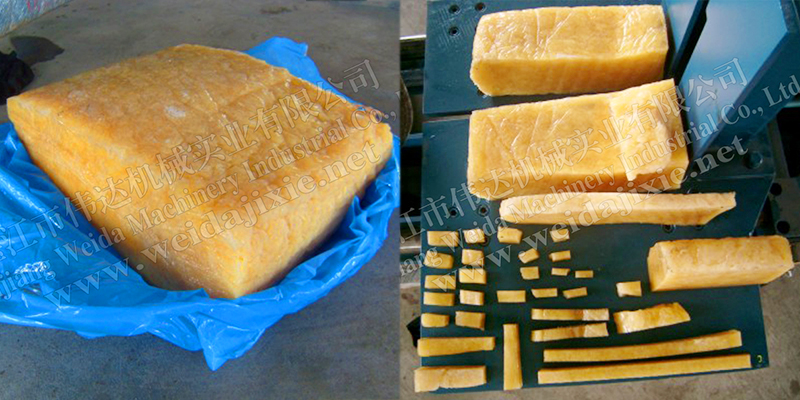

- BlocksSlicesGranulesBars
Key Features
Performance Highlights
50 r/min
Rotational Speed
5 Mpa
Working Pressure
Operational Details

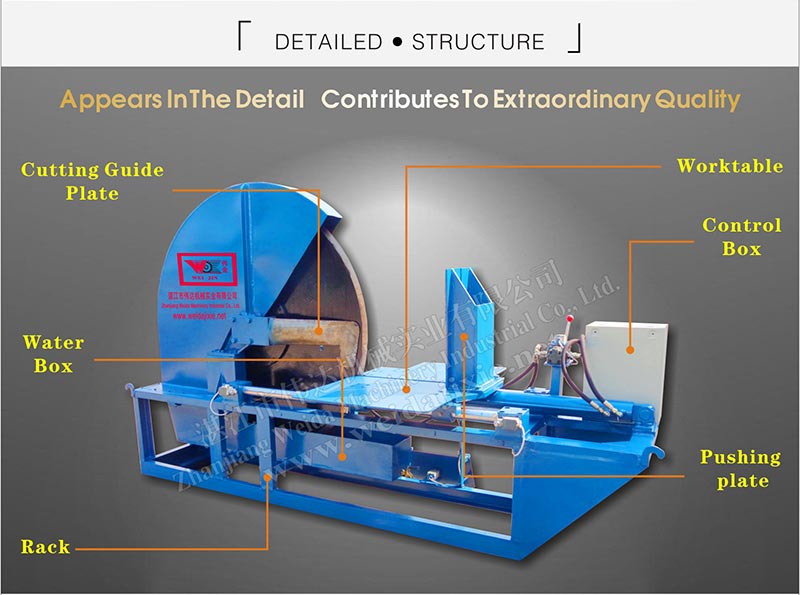

Key Design Elements
- Hydraulic-controlled worktable for precise material feeding
- Rotating-disc cutting mechanism
- Integrated water cooling and lubrication system
- Self-lubricating moving parts to minimize friction
- Sturdy industrial-grade rack construction
