Technical Specifications

Overview

Industrial Rubber Cutting Solution

This rotating-disc cutting machine is engineered for the efficient processing of natural, compound, reclaimed, and synthetic rubber. Utilizing a robust hydraulic system, it precisely transforms large rubber blocks into smaller, uniform slices, granules, or bars. Designed for industrial-scale operations, the machine combines high-speed performance with reliable, low-friction operation to enhance productivity in rubber manufacturing facilities.

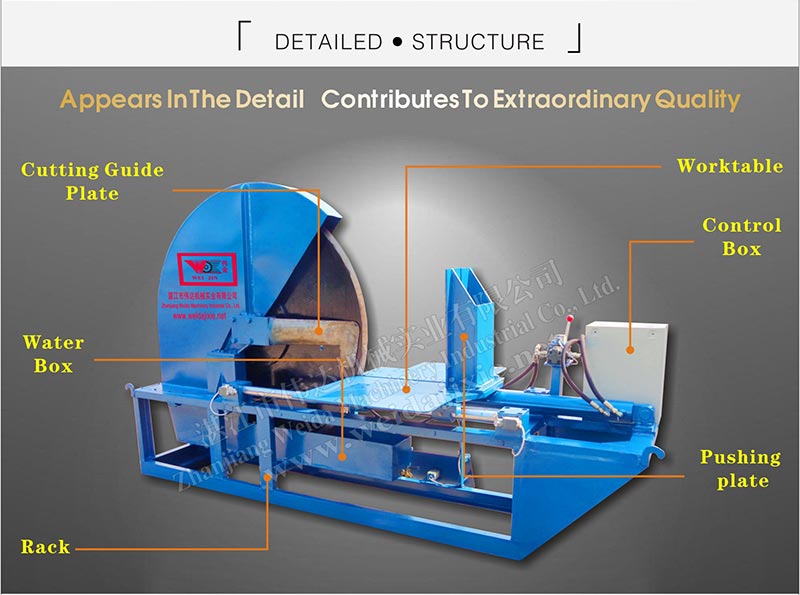

Detailed view of the rubber cutting machine components including guide plate and worktable — Key components including the cutting guide plate, worktable, and hydraulic control box.

Technical Specifications

Key Performance Metrics

50 r/min

Rotational Speed

5 MPa

Working Pressure

6.2 kW

Total Power

Model Specifications

Feature	WQJ-1000	WQJ-1300
Blade Diameter	1000mm	1300mm
Production Capacity	2 t/h	3 t/h

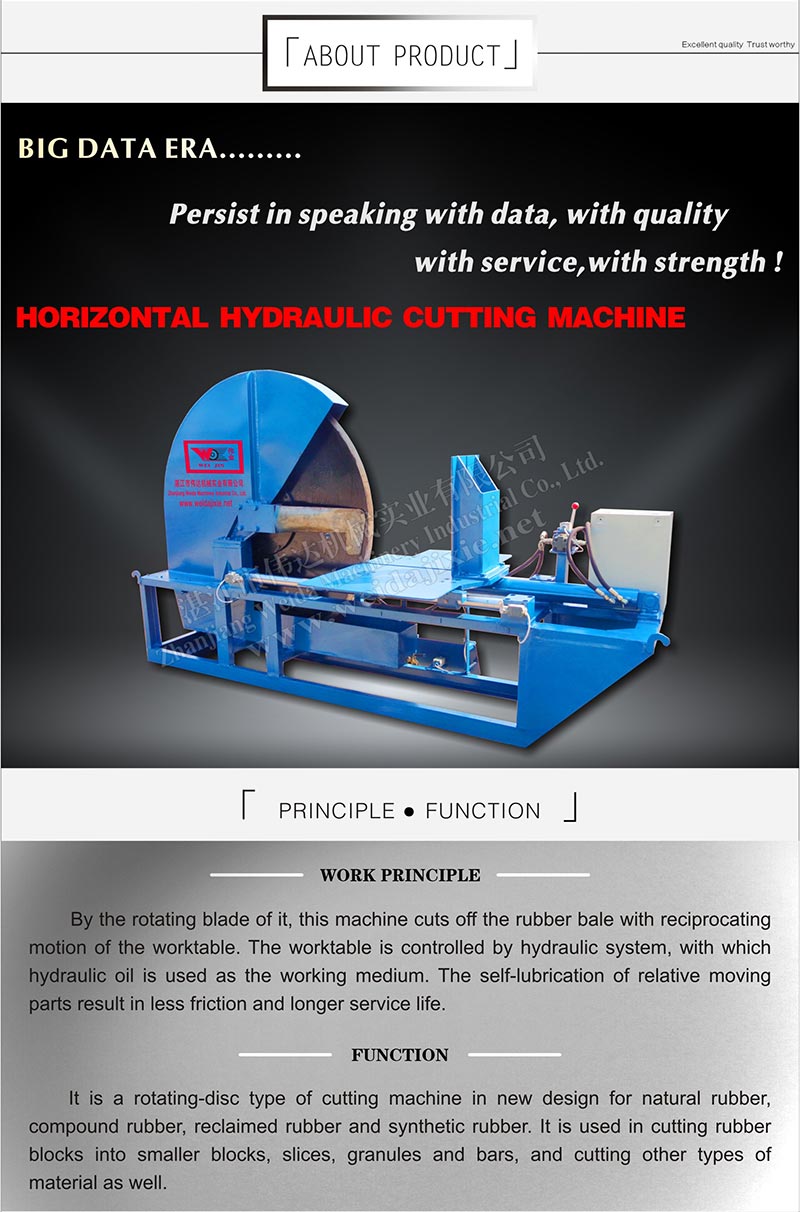

Horizontal hydraulic cutting machine diagram and principle — The horizontal hydraulic design utilizes self-lubricating parts to ensure reduced friction and extended service life.

Capabilities

Output Forms

Blocks
Slices
Granules
Bars

Processable Materials: Natural RubberCompound RubberReclaimed RubberSynthetic Rubber

Various rubber materials and finished products processed by the machine — The machine is highly versatile, capable of processing various raw rubber forms into finished products.
