Rotary Rubber Block Cutting Machine

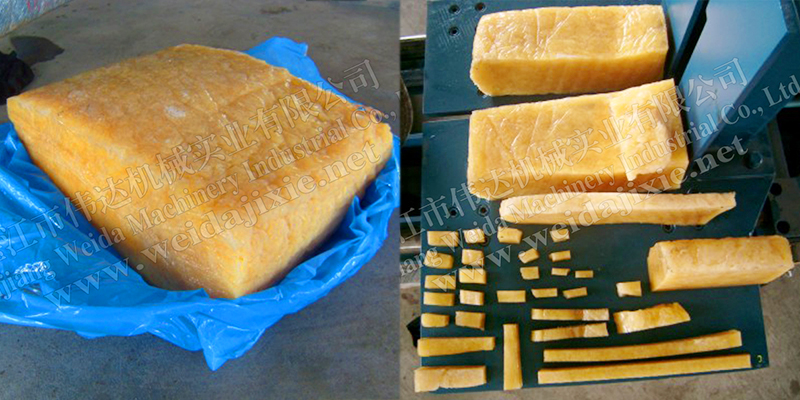

This rotating-disc cutting machine is designed for processing natural, compound, reclaimed, and synthetic rubber. It cuts rubber blocks into smaller blocks, slices, granules, and bars.
Technical Specifications
Overview
High-Efficiency Rotary Rubber Cutting

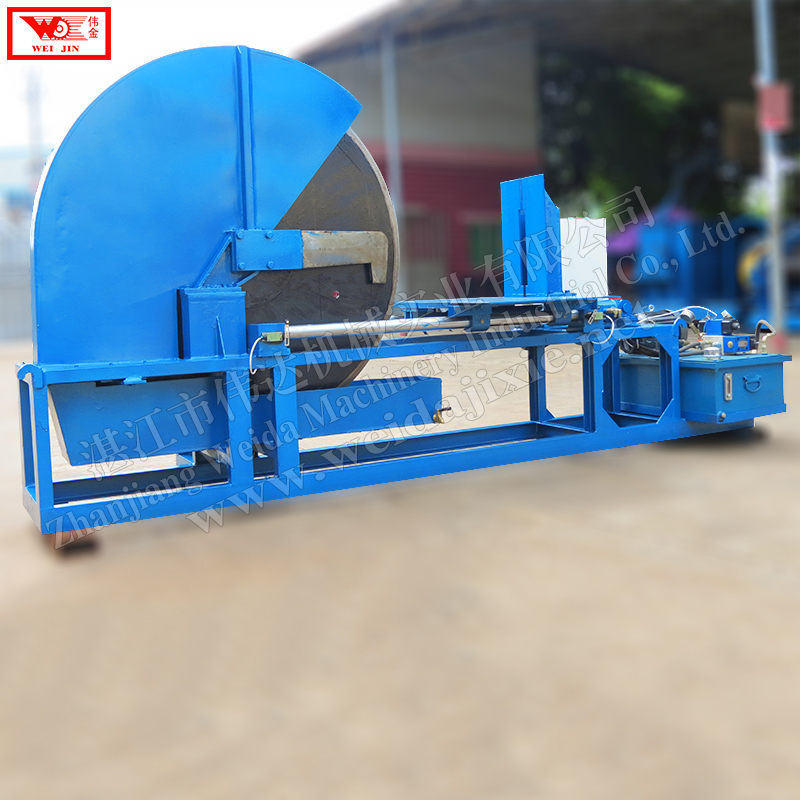

This rotary-disc type cutting machine is designed for the precise processing of natural, compound, reclaimed, and synthetic rubber blocks. It efficiently transforms raw rubber into smaller blocks, slices, granules, or bars, making it an essential tool for downstream manufacturing. The system utilizes a hydraulic-controlled worktable and a rotating blade to ensure well-distributed cuts and high-volume production capacity.
Technical Specifications
Model Performance Comparison
| Model | Blade Diameter (mm) | Production Capacity (t/h) | Power (kw) |
|---|---|---|---|
| WQJ-1000 | 1,000 | 2 | 4+2.2 |
| WQJ-1300 | 1,300 | 3 | 4+2.2 |
- Blade Rotational Speed
- 50 r/min
- Hydraulic Working Pressure
- 5 Mpa
Key Features

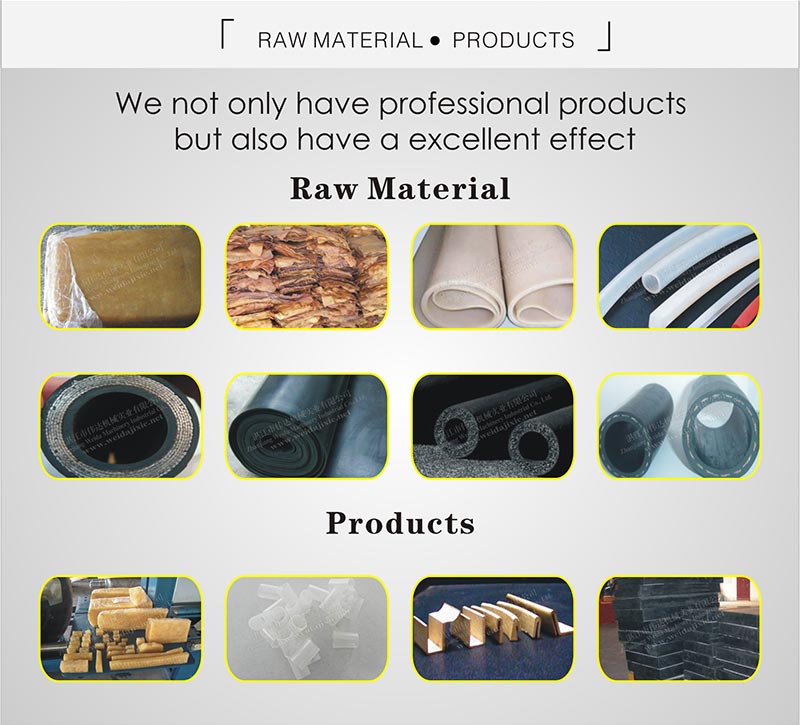

Compatible Materials
- Natural Rubber
- Compound Rubber
- Reclaimed Rubber
- Synthetic Rubber
- Output Shapes
- BlocksSlicesGranulesBars
Design & Construction

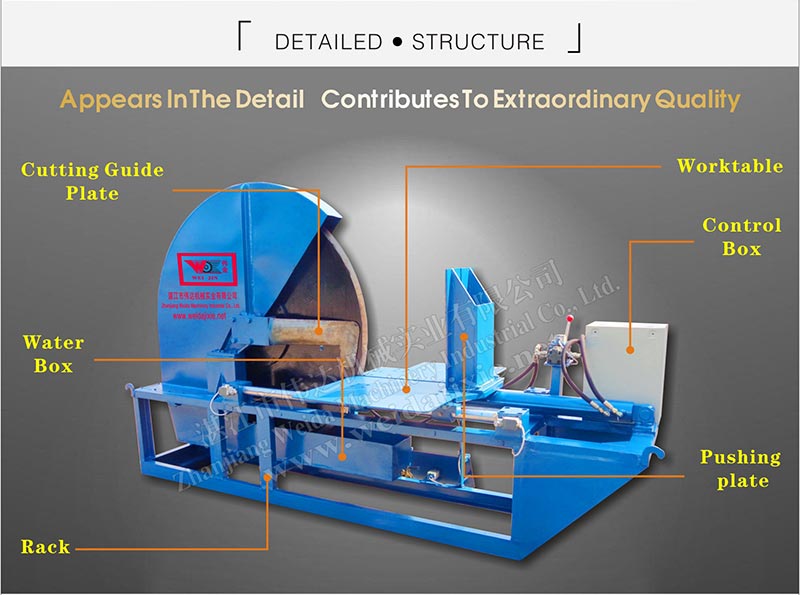

Structural Components
- Cutting Guide Plate
- Hydraulic Worktable
- Pushing Plate
- Water Box (Cooling/Lubrication)
- Control Box
- Sturdy Support Rack
Hydraulic Reciprocating Motion
The machine operates via a rotating blade that cuts the rubber bale as the worktable moves in a reciprocating motion. This worktable is driven by a hydraulic system using oil as the working medium, which provides self-lubrication to moving parts, reducing friction and extending the machine's service life.
Support & Installation
Ready-to-Use Delivery
The unit is delivered as a whole machine. Upon receipt, users simply need to fix the machine to the ground according to the manual and connect it to a power supply. No specialized technician is typically required for standard setup.
