Rotary Rubber Block Cutter
This rotating-disc cutting machine is designed for processing rubber blocks. It cuts natural, compound, reclaimed, and synthetic rubber into slices, granules, and bars.
Technical Specifications
Overview
Rotary Rubber Block Cutter

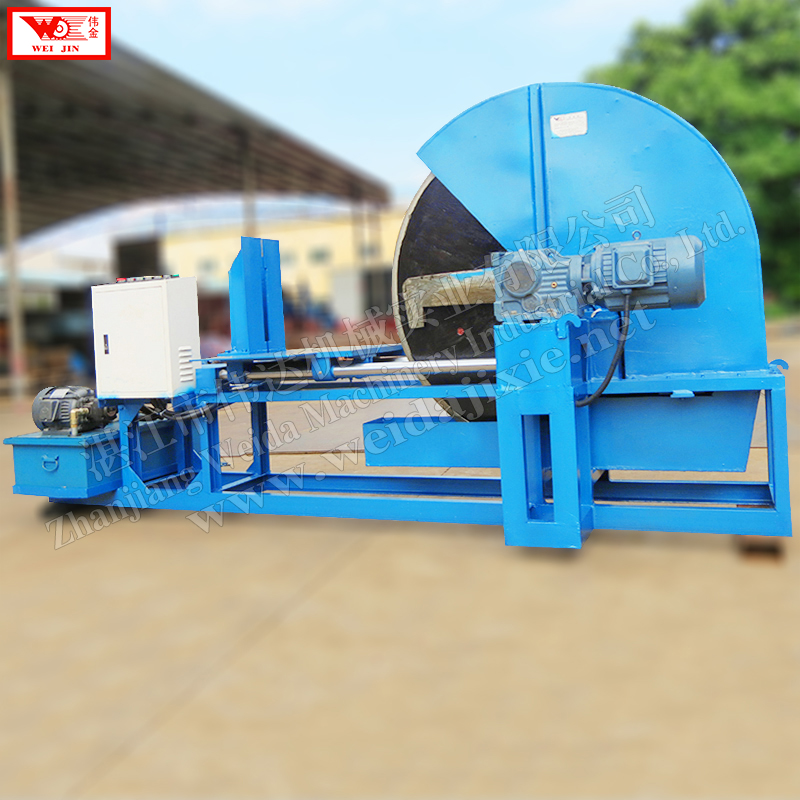

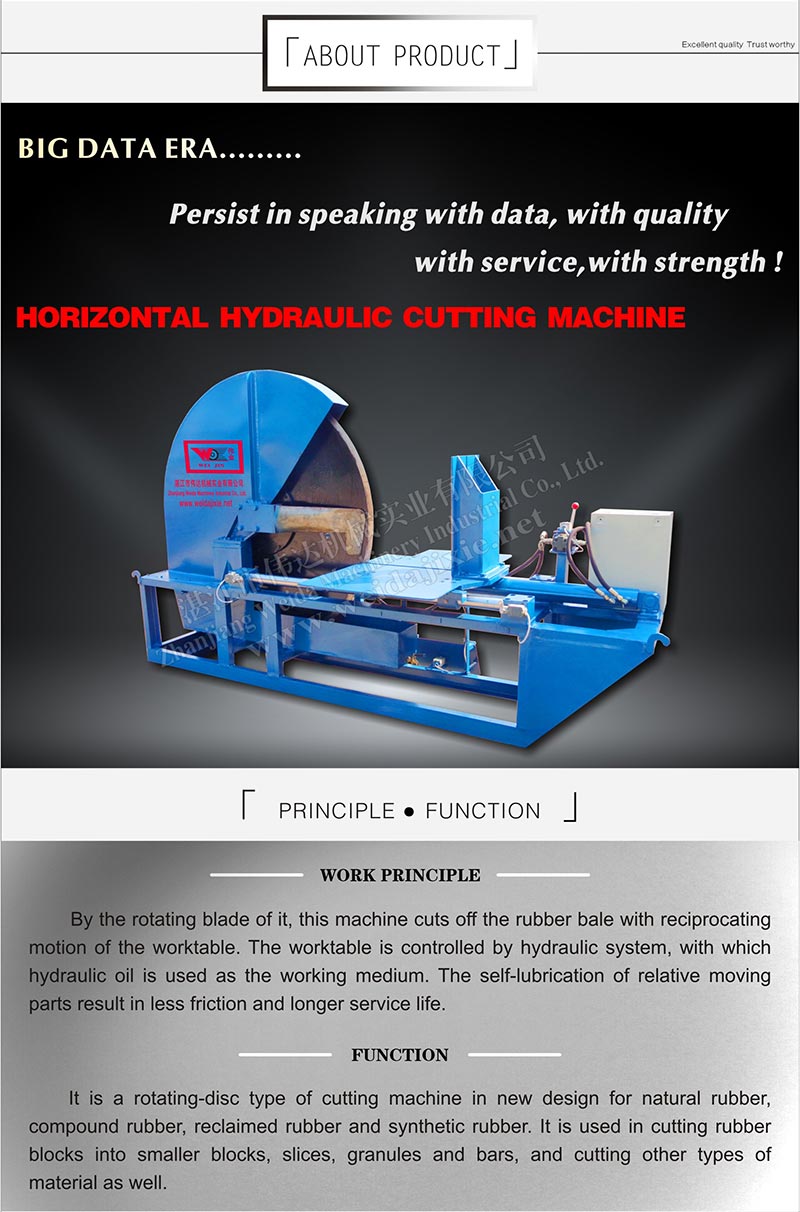

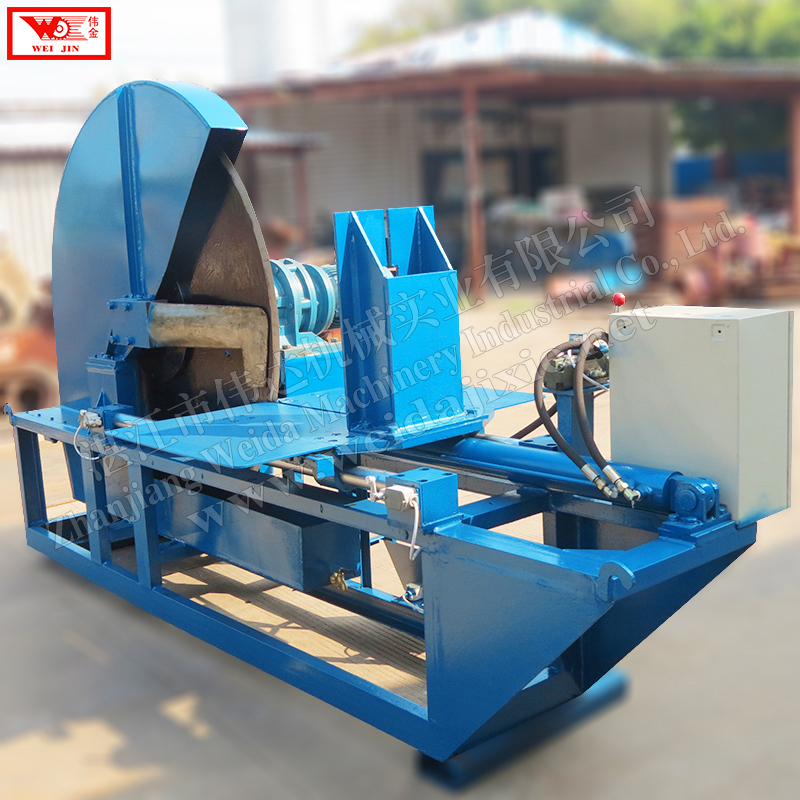

This high-performance rotary-disc cutting machine is engineered for the efficient processing of natural, compound, reclaimed, and synthetic rubber. Designed for versatility, it effectively transforms large rubber blocks into smaller, manageable forms including slices, granules, and bars. Its robust hydraulic system and durable construction ensure consistent, reliable operation in demanding industrial environments.
Technical Specifications
Model Comparison
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Production Capacity | 2t/h | 3t/h |
| Rotational Speed | 50r/min | 50r/min |
| Power Rating | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
Key Features

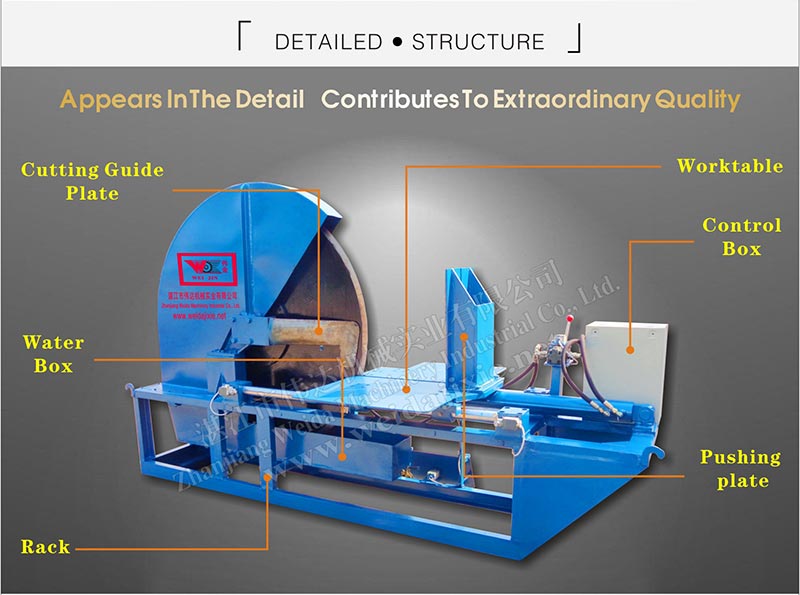

Design Advantages
- Rotating-disc cutting mechanism
- Hydraulic system-controlled worktable
- Self-lubricating moving parts for reduced friction
- Extended service life
- Robust, heavy-duty frame construction
- Processing Capabilities
- Natural RubberCompound RubberReclaimed RubberSynthetic RubberBlock CuttingSlicingGranulatingBar Cutting
Operations
Installation and Maintenance
The machine is typically delivered as a complete unit. Installation involves securing the unit to the ground according to the provided manual and connecting it to the power supply, usually requiring no specialized technician. The equipment includes a one-year warranty on structural components, excluding fragile parts unless quality issues are identified during initial setup.
