Rotary Automatic Screen Printing Machine for Balloons
This automatic screen printing machine is designed for balloons. It features a computerized central control system with a touch screen interface and imported servo motor drive for stability and printing accuracy.
Technical Specifications
Overview
High-Efficiency Rotary Balloon Printing
This rotary automatic screen printing machine is designed for high-volume balloon decoration with a computerized central control system and a user-friendly touch screen interface. It features an imported servo motor drive to ensure overall stability and a high printing accuracy of ±0.05 mm. Engineered for reliability, the machine components undergo strict quality control to ensure minimal maintenance and a long service life in industrial environments.
Performance Metrics
Key Performance Metrics
3,600 pcs/h
Max Output
0.05 mm
Printing Accuracy
1.5 kW
Main Engine Power
Technical Specifications
- Production Capacity
- 3200-3600 A/H
- Physical Dimensions
- L 7.5m x W 1.2m x H 1.7m
- Atmospheric Pressure
- 0.8 MPa
- Air Consumption
- 0.6 m3/H
- Control System
- Computerized central control with graphic touch screen interface
- Drive System
- Imported servo motor drive
Required Equipment
Required Air Compressor
| Requirement | Specification |
|---|---|
| Pressure | 0.8 MPa |
| Flow Rate | 0.4 m3/h |
| Note | Separate purchase required |
Features & Capabilities
Key Features

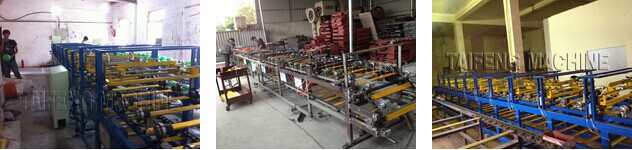

- Rotary multi-station configuration
- Automated inflation and deflation capabilities
- Conveyor system for continuous feeding
- Adjustable printing stations for various balloon sizes
- Pneumatic components for smooth operation
- Multi-color design support
Compliance
Certifications
CE
