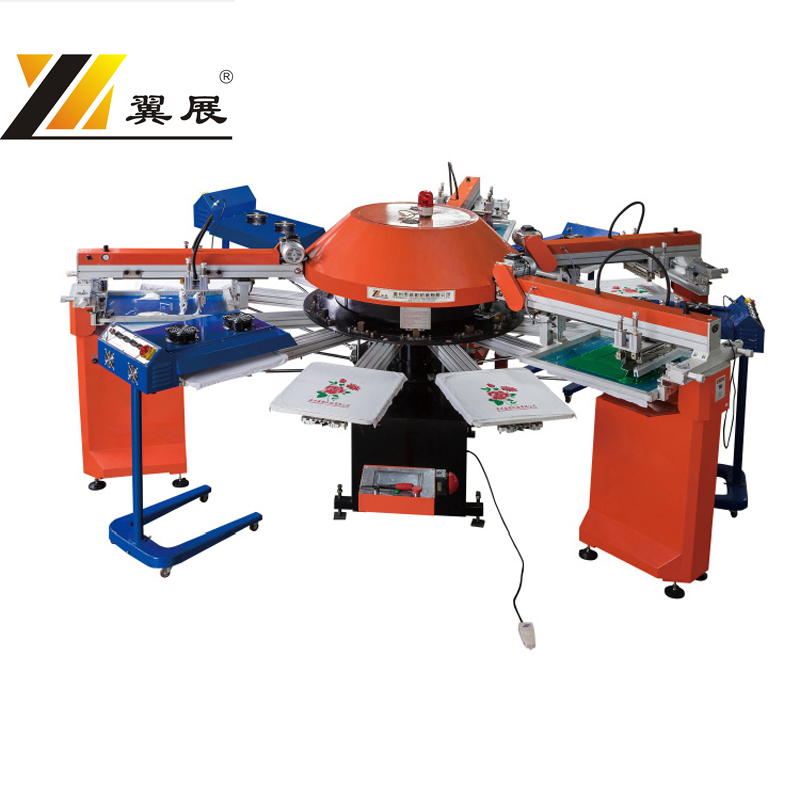

Rotary Automatic Screen Printing Machine
This multi-functional rotary automatic screen printing machine integrates advanced automation technology. It ensures consistent print quality and high throughput for various materials, including textiles, plastics, and ceramics.
Technical Specifications
Overview
High-Precision Rotary Automatic Screen Printing Machine
This advanced rotary automatic screen printing machine features a computerized central control system with an intuitive touch-screen interface for streamlined operation. Engineered for stability and versatility, it utilizes imported servo motors to achieve printing registration accuracy of +/- 0.05 mm. The robust design supports various printing processes while minimizing maintenance requirements to ensure reliable, high-output industrial performance.
Performance Metrics
Operational Performance
600 pcs/h
Production Output
0.05 mm
Registration Accuracy
0.6 Mpa
Air Pressure
Technical Specifications
Model Specifications
| Model | Colors/Dryers/Stations | Max Print Area | Main Motor Power |
|---|---|---|---|
| SPG2030/10 | 4/4/10 | 200*300mm | 4.5kw |
| SPG3040/12 | 6/4/12 | 300*400mm | 5.2kw |
| SPG4060/14 | 6/6/14 | 400*600mm | 5.8kw |
| SPG5070/16 | 8/6/16 | 500*700mm | 5.8kw |
| SPG4060/18 | 8/8/18 | 600*800mm | 7.8kw |
Key Features
Advanced Capabilities
- Synchronous servo drive system for high speed and stability
- Automatic rotary workbench with precision station positioning
- Independent frequency conversion control for each scraper and print head
- Fully adjustable parameters for squeegee pressure, angle, speed, and cycle count
- Compatible with various screen frame sizes for on-line printing
- Operational Tags
- Computerized ControlServo DrivenHigh AccuracyLow MaintenanceMulti-Functional
