Technical Specifications
Overview

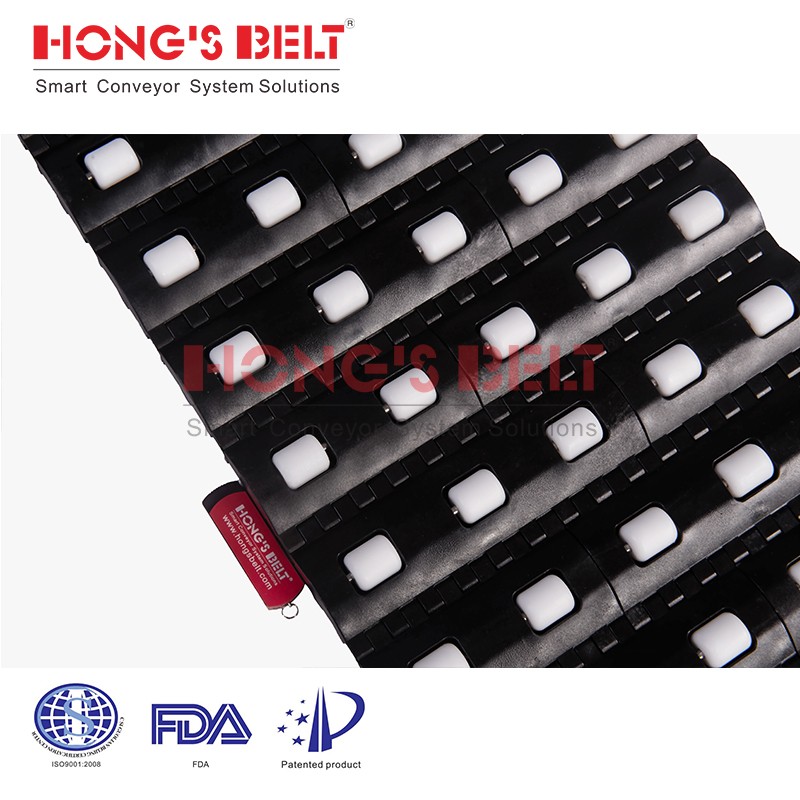

High-Efficiency Roller Top Conveyor Belt
This modular plastic conveyor belt features an integrated roller-top design, engineered to facilitate smooth and efficient product movement while significantly reducing friction. Designed for diverse industrial applications, it offers exceptional durability with a load capacity of up to 1.2 tons per square meter. Its modular construction allows for easy customization and maintenance, making it a reliable solution for warehousing, food processing, and logistics operations.
Technical Specifications
- Pitch
- 50.8 mm
- Thickness
- 26.5 mm
- Minimum Width
- 251 mm
- Rod Diameter
- 5.8 mm
- Open Area
- 0%
- Available Materials
- PPPOMPEPA
- Working Temperature Range
- -40°C to 260°C
Performance Metrics
Maximum Load Capacity
1.2 tons/m²
Load Capacity
Regulatory Approvals
FDAEU
Configuration
Available Colors
- White
- Blue
- Gray
- Nature
- Dark-brown

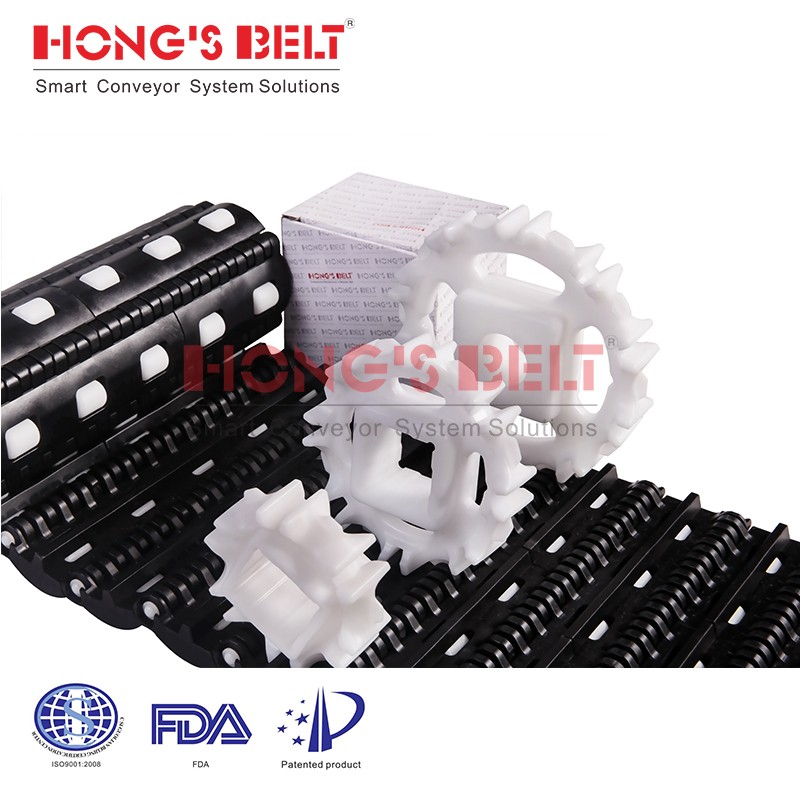

Compatible Sprockets
- 6T
- 8T
- 10T
- 12T
- 6T-N
- 8T-N
- 10T-N
- 12T-N
Application
Suitable Industries
| Category | Industries |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire, Packaging, Printing/Paper, Postal, Corrugated Cardboard, Can, PET, Textile |
