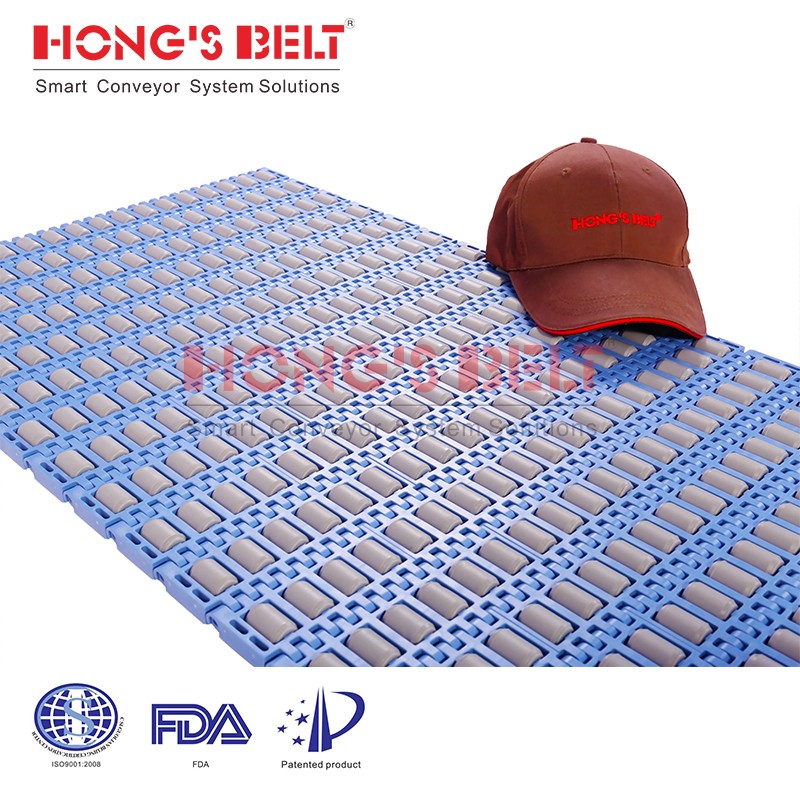

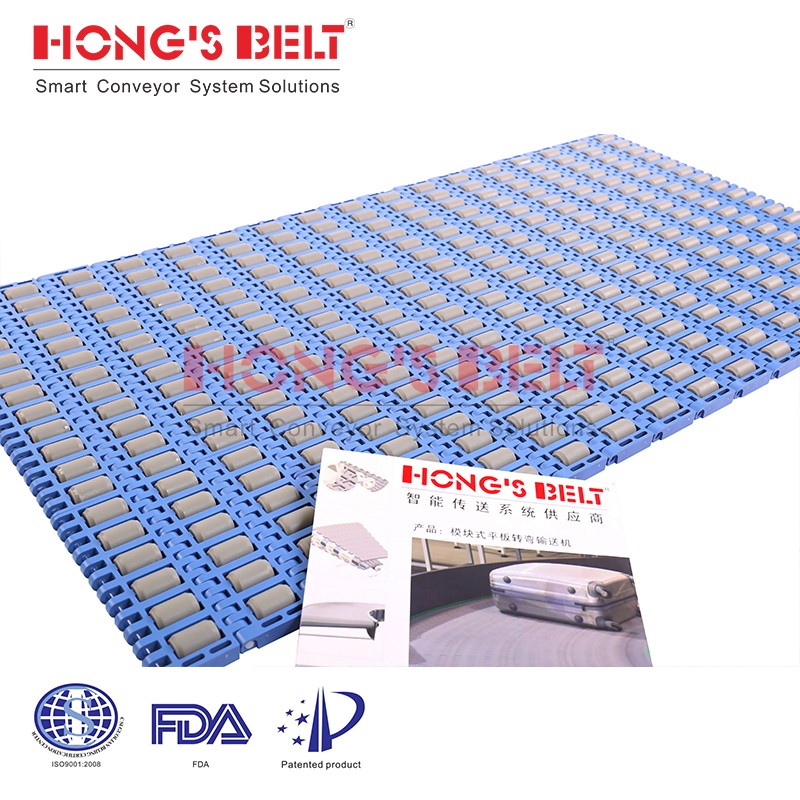

High-Performance Roller Top Conveyor Belt
This modular plastic conveyor belt is engineered specifically for sorting applications, featuring a roller-top surface that facilitates smooth, efficient material handling while reducing friction and wear. Designed for durability in demanding industrial environments, it offers a load capacity of up to 1.2 tons per square meter and is compatible with various food-grade and non-food industrial processes. Its modular construction ensures easy assembly, maintenance, and long-term reliability.
Technical Specifications
- Model Type
- HS-3800-3C
- Pitch
- 50.8 mm
- Thickness
- 19 mm
- Minimum Width
- 222 mm
- Open Area
- 3 %
- Rod Diameter
- 5.8 mm
- Working Temperature
- -40°C to 260°C
- Material Options
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Features
Certifications
FDA ApprovedEU Approved
Key Advantages
- Floating capability in water
- Suitable for food defrosting
- Maintenance-free design
- Easy to clean
- High load capacity (up to 1.2 tons/sqm)
Configuration
System Limitations
- No Flight
- No Side Guard
- No Curve
- Sprocket Dimensions
- Sizes: 6T, 8T, 10T, 12T, 16T, 17T, 8T-Split; Bore: Square or Round
Applications
Industry Applications
| Food Industry | Non-Food Industry |
|---|---|
| Meat (beef & pork) | Automotive |
| Poultry | Tire manufacturing |
| Sea Food | Packaging |
| Bakery | Printing/Paper |
| Snack Food | Postal |
| Fruit & vegetables | Can/PET manufacturing |
