Technical Specifications
Overview
High-Performance Modular Conveyor Solution

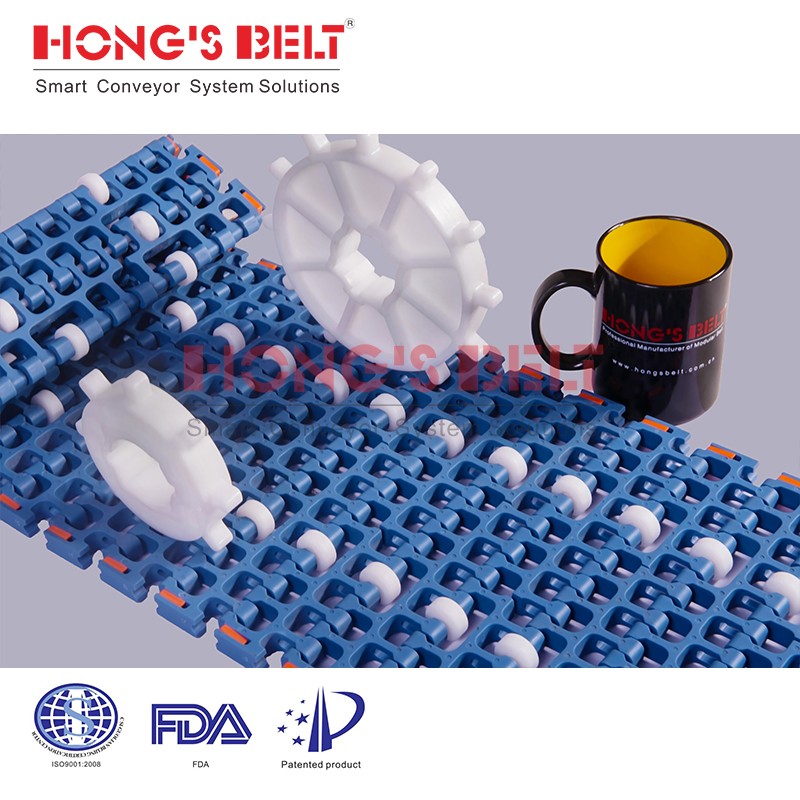

This roller top modular plastic conveyor belt is engineered for efficient box and flat-bottomed item transport across diverse industrial environments. Its modular design facilitates easy maintenance and customization, while the integrated roller top surface significantly minimizes friction during operation. Built with food-grade compatible materials, it offers exceptional durability, chemical resistance, and a high load-bearing capacity of up to 1.2 tons per square meter.
Technical Specifications
Max Load Capacity
1.2 tons/m²
Load Capacity
- Pitch
- 45 mm
- Thickness
- 19.5 mm
- Minimum Width
- 195 mm
- Open Area
- 52 %
- Rod Diameter
- 5.8 mm
- Working Temperature
- -40°C to 260°C
Configuration & Materials
Available Colors
WhiteBlueGrayNatureDark-brown
Sprocket Options
- 8T Sprocket
- 12T Sprocket
- Square Bore
- Round Bore
- Material Options
- PPPOMPEPA
Features & Compliance
Design Capabilities
| Feature | Status |
|---|---|
| Curve Compatibility | Yes |
| Flight | No |
| Side Guard | No |
- Regulatory Approval
- FDAEU
Applications
Industry Applications
- Meat & Poultry Processing
- Seafood
- Bakery
- Snack Food
- Fruit & Vegetable
- Automotive
- Tire Manufacturing
- Packaging
- Printing & Paper
- Postal
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
