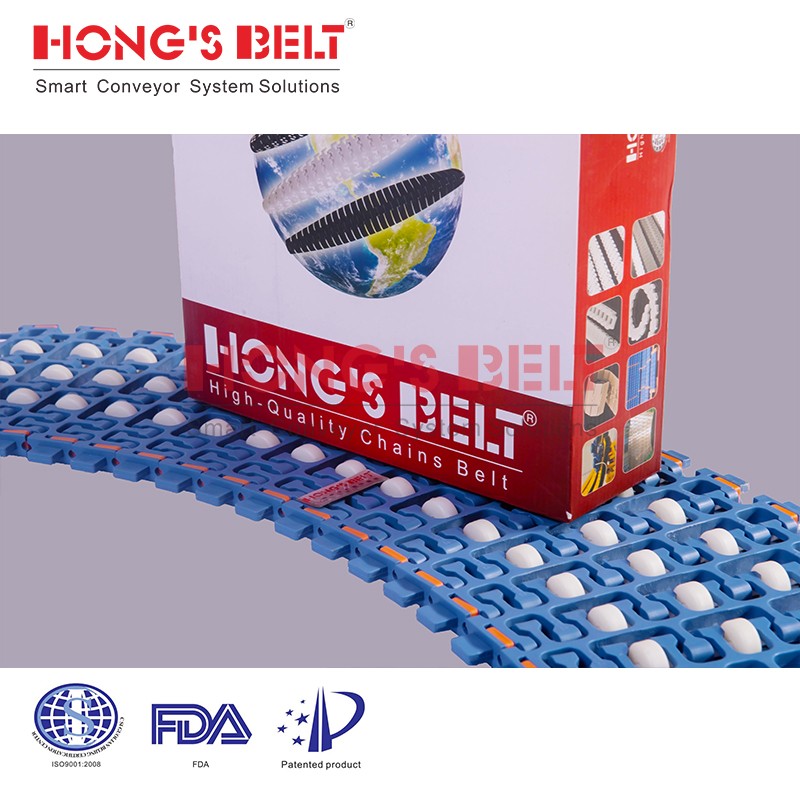

Roller Top Modular Plastic Conveyor Belt
This roller top modular plastic conveyor belt is designed for efficient box transporting. The modular design allows for easy assembly and customization for use in packaging, warehousing, and distribution applications.
Technical Specifications
Overview
High-Performance Roller Top Conveyor Belt
This modular plastic conveyor belt is engineered for efficient, low-friction box transportation in demanding industrial environments. Featuring a robust roller top surface, it minimizes contact resistance to protect goods while optimizing throughput. With a wide operational temperature range and food-safe material options, it is a versatile solution for both food processing and general manufacturing logistics.
Technical Specifications
- Pitch
- 45 mm
- Thickness
- 19.5 mm
- Minimum Width
- 242 mm
- Open Area
- 52 %
- Rod Diameter
- 5.8 mm
- Curve Capable
- Yes
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Performance & Compliance
Compliance
FDA ApprovedEU Compliant
Max Load Capacity
1.2 tons/m²
Load Capacity
- Working Temperature
- -40°C to 260°C
Configuration

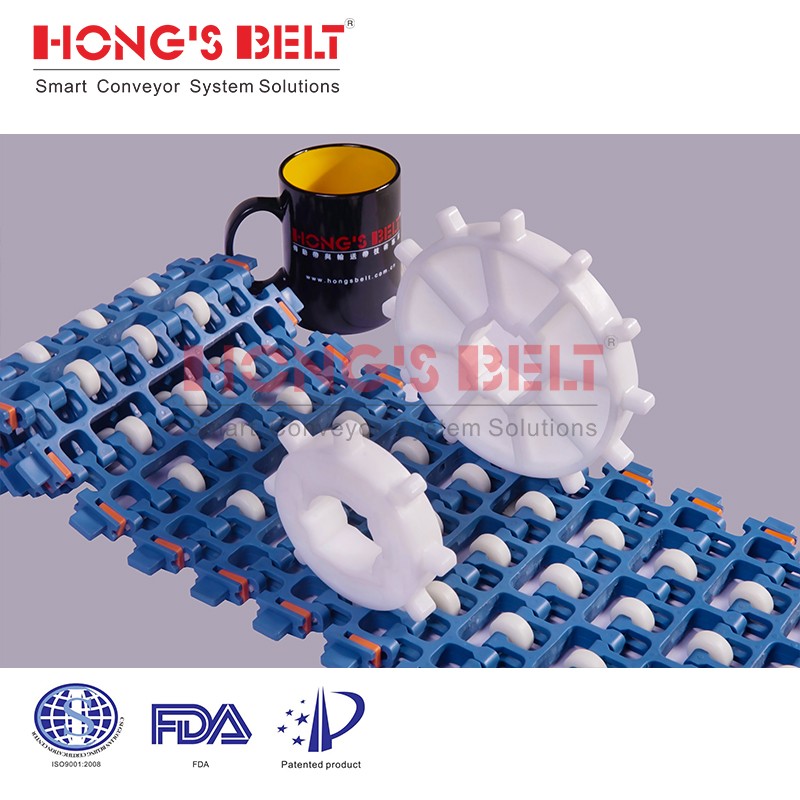

Sprocket Configuration
- 8T Sprocket
- 12T Sprocket
- Square Bore
- Round Bore
Applications
Industry Compatibility
| Sector | Industries |
|---|---|
| Food | Meat, Poultry, Seafood, Bakery, Snacks, Produce |
| Non-Food | Automotive, Tire, Packaging, Printing, Postal, Cardboard, Can/PET Mfg, Textile |
