Rock Drilling Bucket with Collar Plate
This rock drilling bucket is designed for drilling hard rock formations. It features a robust collar plate for enhanced stability and durability during drilling operations.
Technical Specifications
Product Overview
Robust Rock Drilling Solutions
The SBSF-K Rock Type Drilling Buckets are precision-engineered for high-performance drilling in hard rock formations. Featuring an integrated collar plate for superior stability, these buckets are designed to maximize efficiency in rock fragmentation and soil removal. Available in three distinct power series to accommodate torques up to 35000 KN.m, they provide long-lasting durability for challenging geotechnical and construction environments.
Technical Specifications
Diameter Range
520 mm
Minimum Diameter
3,500 mm
Maximum Diameter
Configuration Overview
| Bucket Type | Application | Key Benefit |
|---|---|---|
| SBLS | Rock Drilling | Standard FZ teeth |
| SBLSF | Rock Drilling | Enhanced FZ teeth |
| SBLSF-K | Hard Rock | High performance R teeth |
- Torque Series Availability

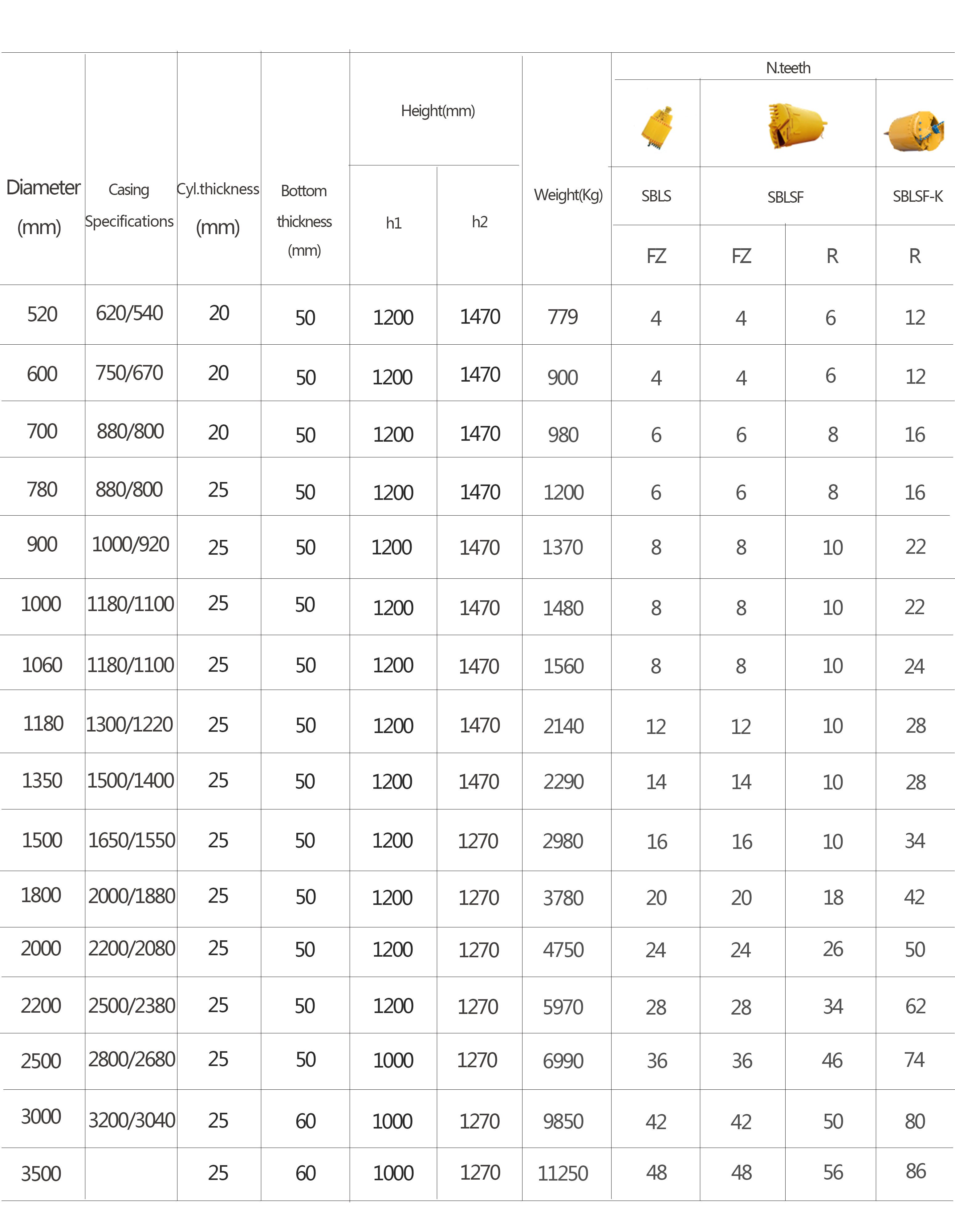

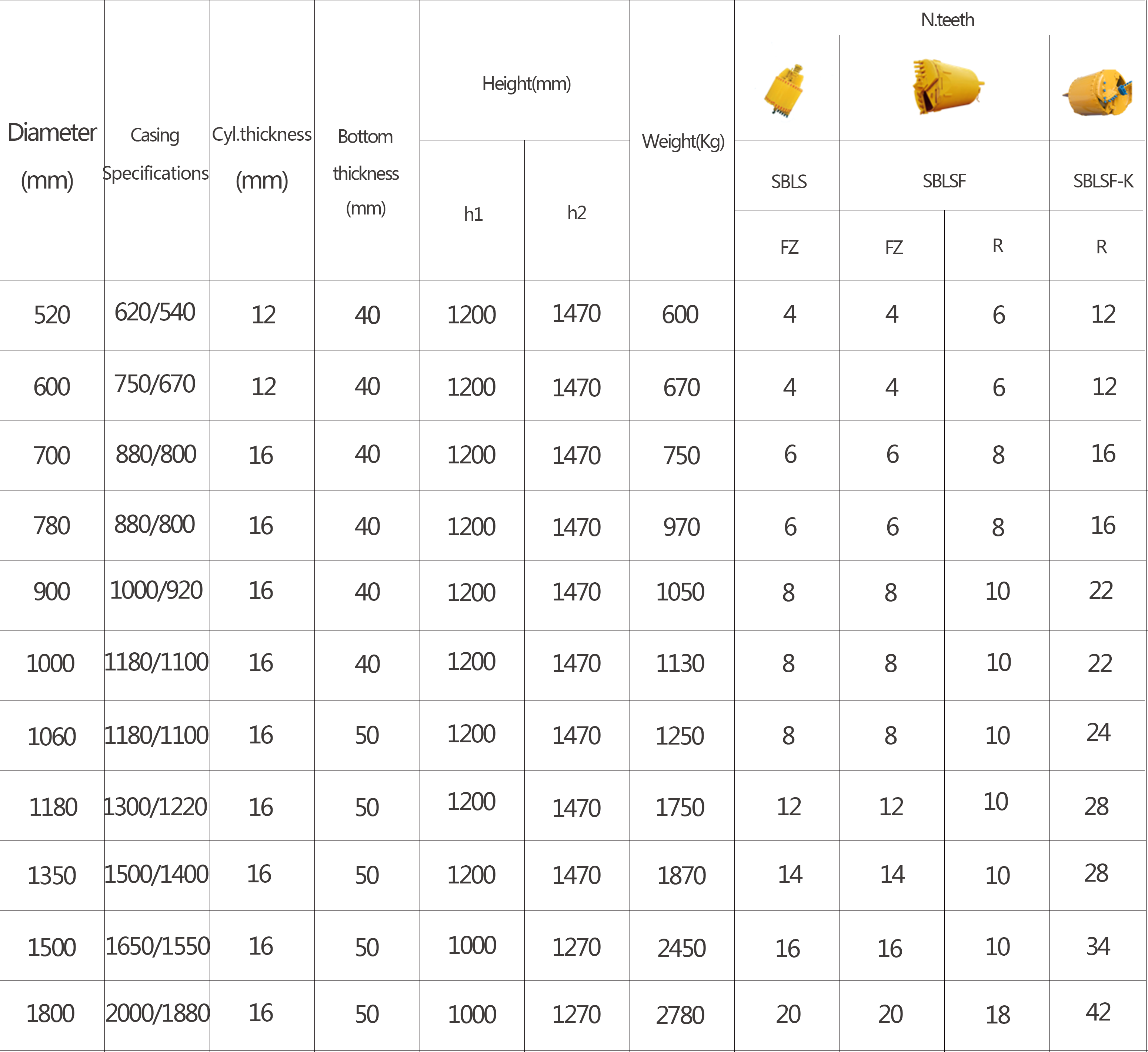

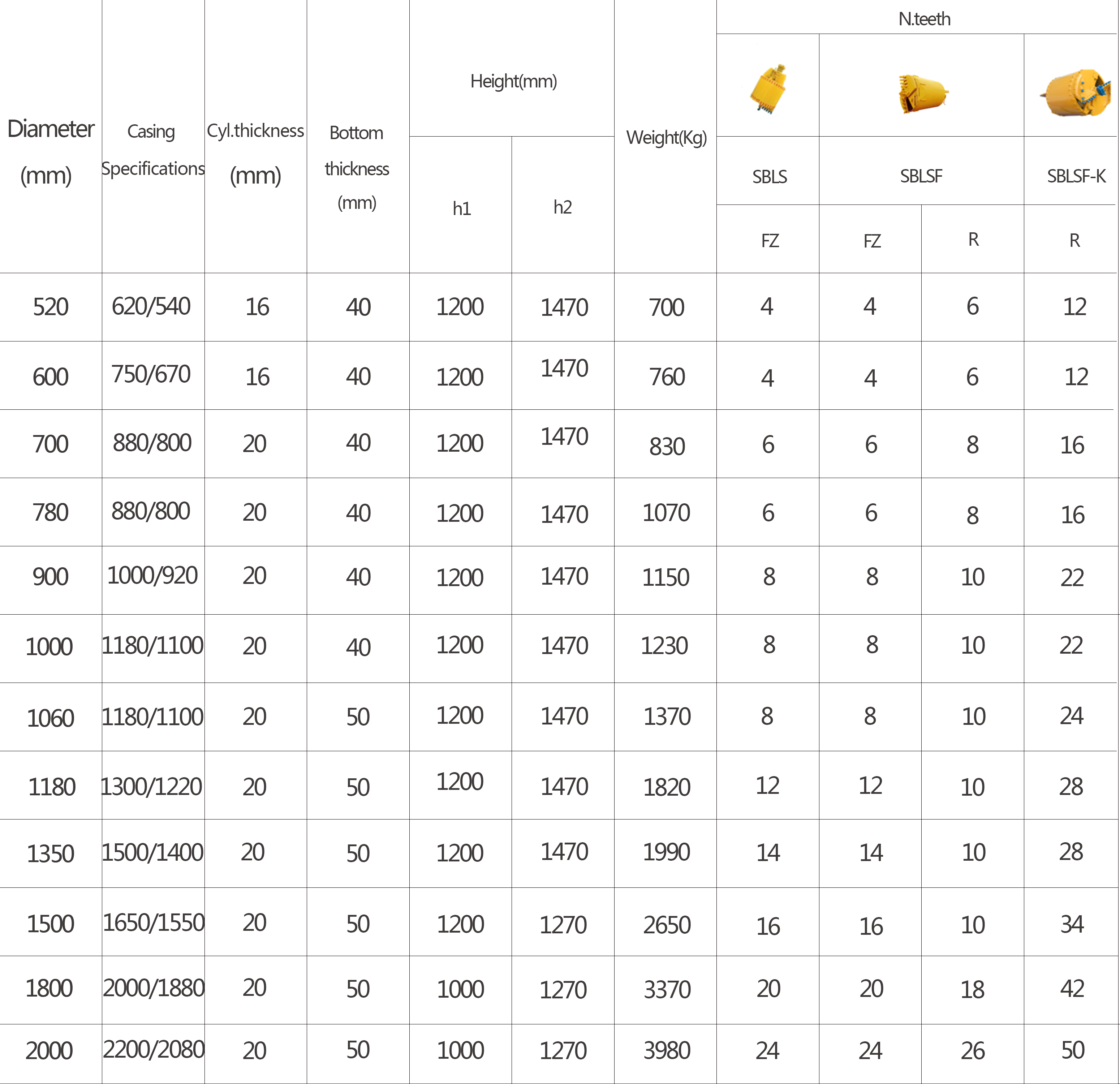

- A Series (up to 12000 KN.m)B Series (12000-20000 KN.m)C Series (20000-35000 KN.m)
Key Features
Design Advantages
- Integrated collar plate for enhanced stability
- Specialized cutting tools for efficient fragmentation
- High-strength cylinder and bottom plate construction
- Versatile range for multiple torque requirements
