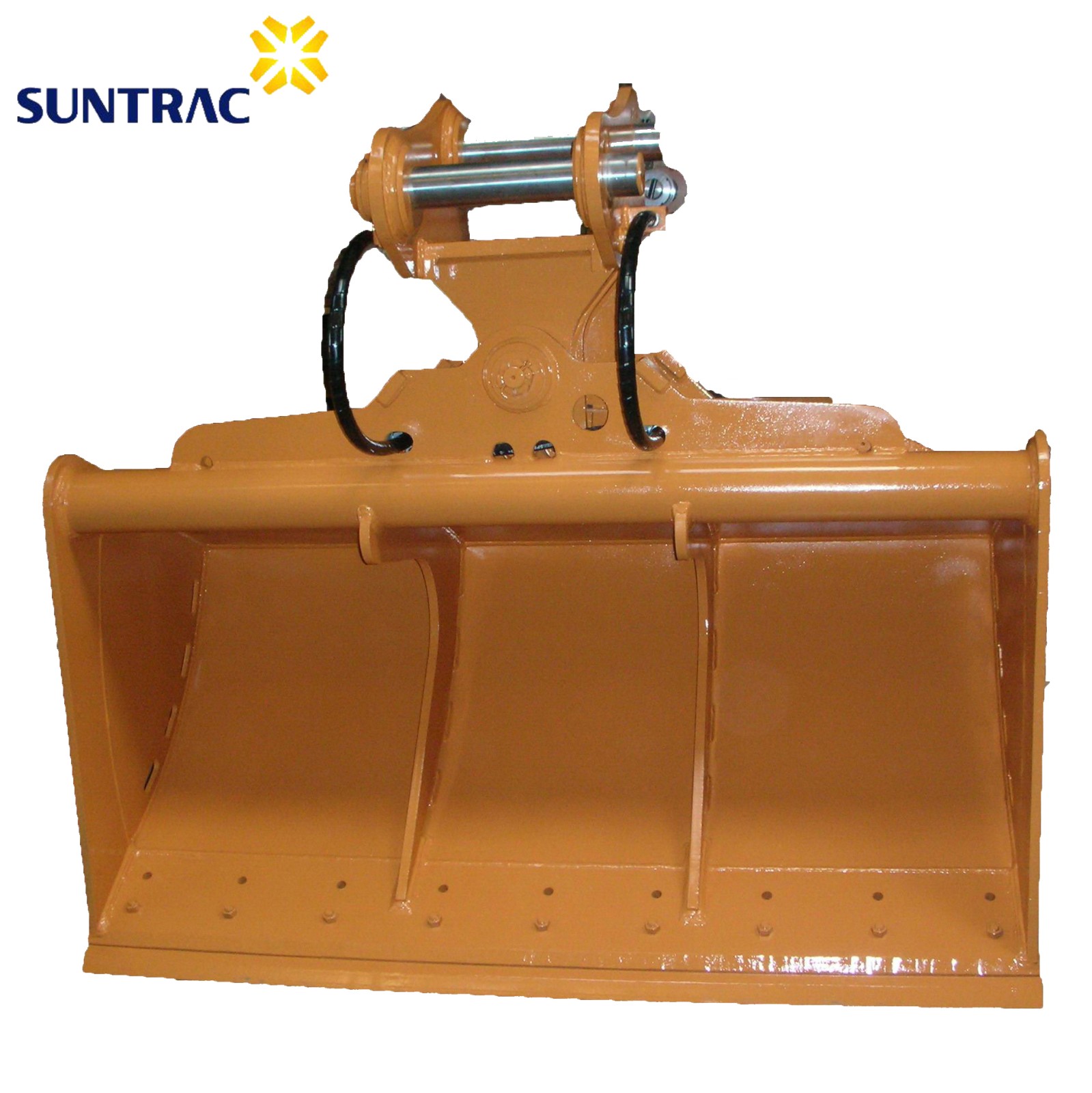

Excavator Hydraulic Tilting Bucket
Tilting bucket can be angled up to 45 degrees in either direction, for a total range of 90 degrees. High-grade steel and integrated side-cutters provide durability in harsh conditions.
Technical Specifications
Product Overview
Versatile Excavator Tilting Bucket
This hydraulic tilting bucket is engineered to provide exceptional versatility for grading, contouring, and material handling tasks. With a tilting capability of 45 degrees in each direction, it offers a total 90-degree range for precise operation. Built for durability, it features high-grade steel construction, reinforced side-cutters, and wear strips to withstand harsh working conditions.
Key Features
- Key Features
- 45° Tilt Each WayHigh-Grade SteelReinforced Side-CuttersBolt-on Cutting EdgeWear StripsEasy Maintenance
Technical Specifications
Model Specifications
| Model | Machine Ton | Capacity (m³) | Width (mm) | Weight (kg) |
|---|---|---|---|---|
| TB030 | 3-4 Ton | 0.142 | 1,200 | 270 |
| TB050 | 5 Ton | 0.192 | 1,200 | 306 |
| TB080 | 8 Ton | 0.306 | 1,500 | 468 |
| TB130 | 12-14 Ton | 0.698 | 1,700 | 850 |
| TB200 | 20-25 Ton | 0.945 | 1,900 | 1,202 |
| TB300 | 30 Ton | 1.667 | 2,000 | 2,061 |
| TB450 | 40-45 Ton | 1.924 | 2,200 | 2,513 |
- Tilting Angle
- 2x45° (90° total)
