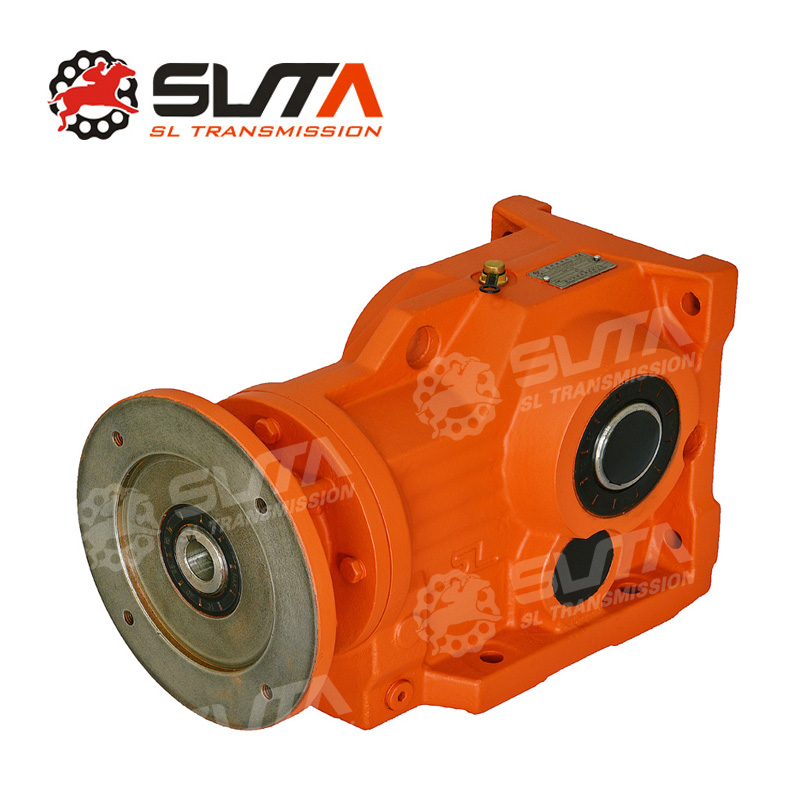

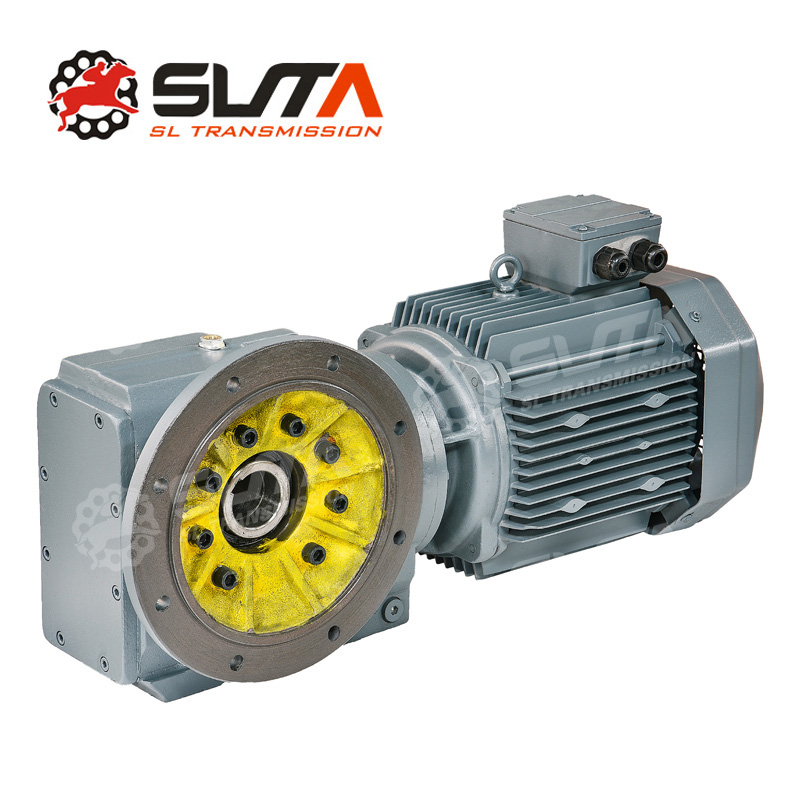

Right Angle AC Gear Motor
This AC gear motor features a right angle gear configuration for efficient power transmission. It is ideal for applications requiring low speed and high torque, such as automation systems and industrial machinery.
Technical Specifications
Overview
High-Performance Helical Gearmotors
This new generation of helical gearmotors features a modularized design with hard teethface gears for superior reliability. Engineered for compact construction and high mechanical efficiency, these units deliver great transmission torque while maintaining low noise levels. They are ideal for demanding industrial environments including chemical, mining, and metallurgy sectors.
Performance Metrics
Key Performance Metrics
94 %
Mechanical Efficiency
68 dB
Max Noise Level
20 μm
Max Vibration
Material Specifications
Construction Materials
| Component | Material | Hardness |
|---|---|---|
| Housing | HT250 High-strength Cast Iron | HBS190-240 |
| Gears | 20CrMnTi Alloy Steel | Surface: HRC58°-62° / Core: HRC33-40 |
| Input/Output Shaft | 42CrMo Alloy Steel | HRC25-30 |
Technical Features
- Gear Machining Precision
- Accurate grinding, Grade 6~5
- Backlash
- 20 Arcmin
- Heat Treatment Processes
- TemperingCementitingQuenching
Operational Limits
Maximum Temperature Rise
- Ambient Temperature Rise: 40℃
- Oil Temperature Rise: 50℃
Components & Maintenance
Recommended Lubricating Oil
- GB L-CKC220-460
- Shell Omala 220-460
Applications
Target Industries
Paper MakingChemical MachineryMiningMetallurgyPetroleumPharmaceutical AgitatorsCeramic Production
