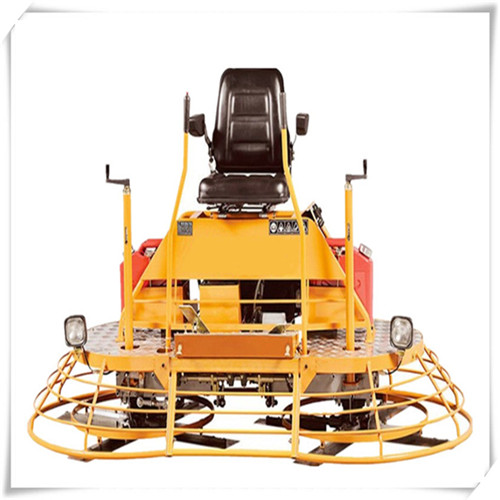

Ride-On Concrete Power Trowel
This ride-on power trowel is designed to reduce labor intensity and increase work efficiency. Its double disc machine provides heavier weight and better compaction compared to walk-behind models.
Technical Specifications
Overview
High-Efficiency Concrete Finishing

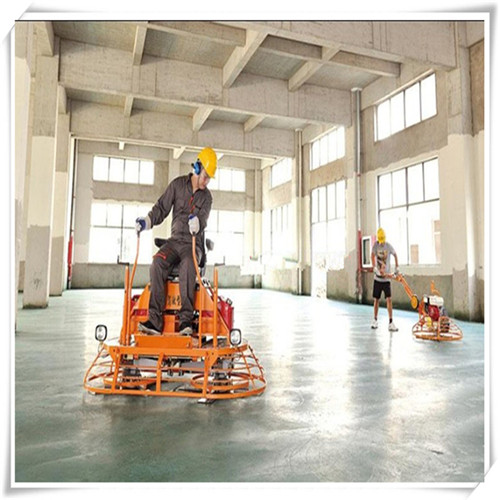

This ride-on power trowel is engineered for the efficient floating and finishing of large-scale concrete surfaces, such as warehouses, parking lots, and airports. Its ride-on design significantly reduces labor intensity while increasing work efficiency compared to walk-behind alternatives. Featuring a low center of gravity and mechanical steering, it offers stable, precise control for achieving smooth, high-quality concrete floors.
Key Features
Operational Advantages
- Ride-on operation for reduced labor intensity
- Double disc design for superior compaction
- Mechanical steering system for sensitive, easy control
- Low center of gravity for stable operation
- Integrated water spray device and lighting for enhanced construction convenience
- Adjustable lift wheel for easy accessory changes
Technical Specifications
Engine Specifications
9.6 KW
Power Output
13 HP
Horsepower
3,600 rpm
Max Speed
6.5 L
Fuel Tank Capacity
Dimensions and Weight
| Parameter | Value |
|---|---|
| Operating Weight | 295 kg |
| Working Diameter | L1570 x W750 mm |
| Overall Dimensions | 1710 x 940 x 1150 mm |
Performance
140 rpm
Forward Speed
Applications
- Suitable Applications
- WarehousesParking LotsPublic SquaresAirportsLarge Concrete Slabs
