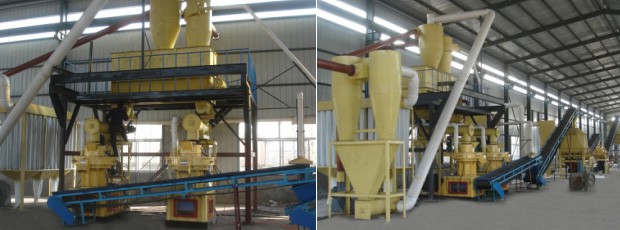

Rice Straw Pellet Mill
This rice straw pellet mill features a unique structure that provides high pressure, low energy consumption, and high efficiency. It is professionally used for rice straw particle pelleting.
Technical Specifications
Overview
High-Efficiency Biomass Processing
This rice straw pellet mill utilizes advanced technology to deliver high-pressure pelleting with low energy consumption. Featuring a unique dual-die structure, it allows for versatile pellet production and adjustable die intervals to suit various biomass materials. The system is designed for durability, ease of maintenance, and maximum economic return in agricultural pellet production.
Key Features
Why Choose This Mill?
- High moulding pressure and efficiency
- Dual-layer die for multiple specifications
- Pressure and abrasion resistant components
- Automatic lubrication system
- Simplified operation and maintenance
Performance Metrics
Performance Overview
75 Kw
Minimum Power
660 Kw
Maximum Power
12 t/h
Max Capacity
Technical Specifications
Model Specifications
| Model | Power (Kw) | Pellet Size (mm) | Capacity (t/h) |
|---|---|---|---|
| FKL55 | 75 | φ4-φ12 | 0.8-1.5 |
| FKL56 | 90 | φ4-φ12 | 1.2-1.8 |
| FKL58 | 160 | φ4-φ12 | 1.8-2.1 |
| FKL68 | 160 | φ4-φ12 | 2-2.5 |
| FKL85 | 220 | φ4-φ12 | 2.5-3.5 |
| FKL88 | 315 | φ4-φ12 | 3.5-4.5 |
| FKL105 | 360-450 | φ4-φ30 | 5-8 |
| FKL125 | 550-660 | φ4-φ30 | 8-12 |
