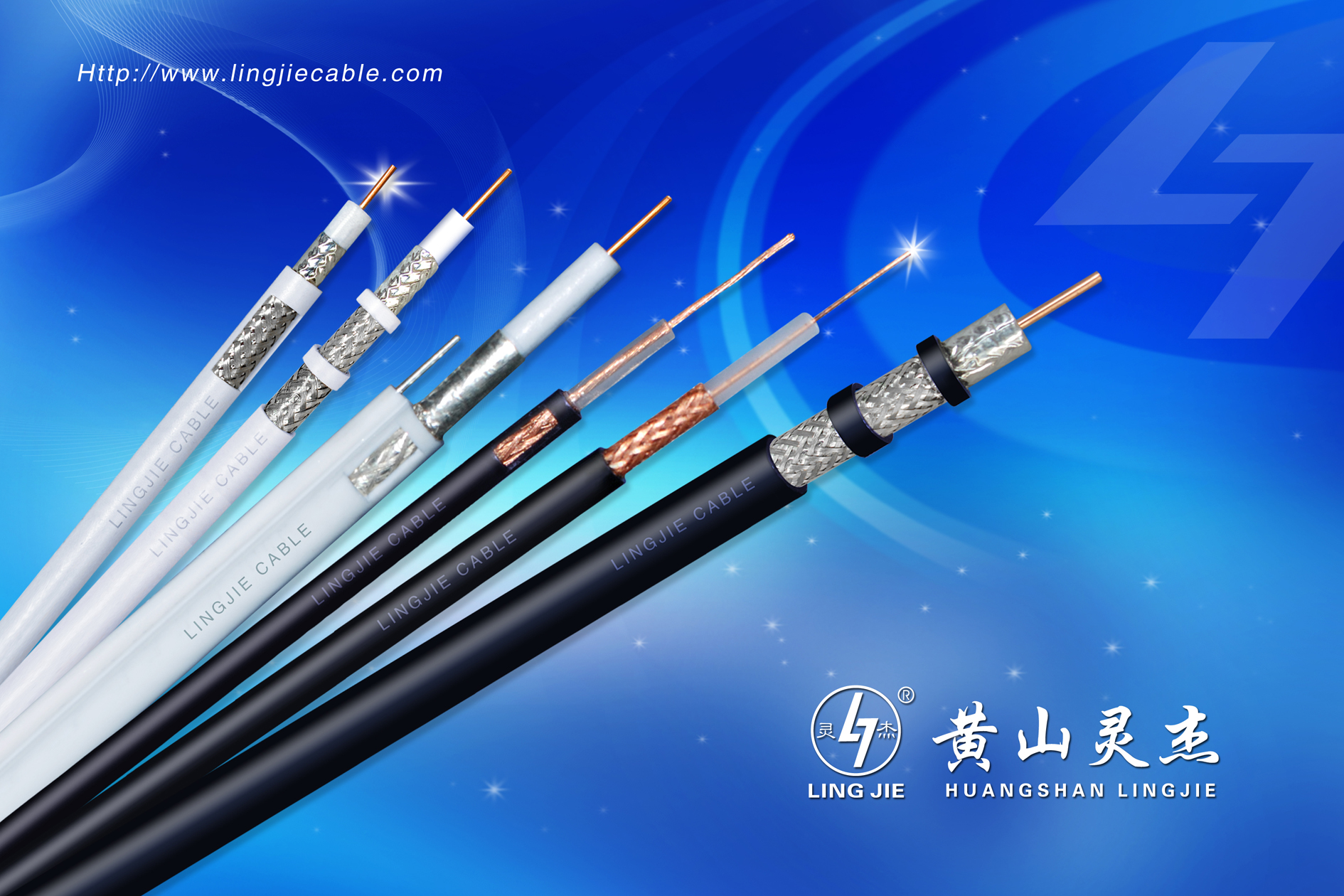

RG6 Coaxial Cable
RG6 coaxial cables are designed for reliable signal transmission. These cables feature a CCS center conductor, FPE dielectric, and multiple shielding options, encased in a PVC jacket.
Technical Specifications
Product Overview
High-Performance RG6 Coaxial Cable
This series of RG6 coaxial cables is engineered for reliable signal transmission in demanding environments, including cable television, satellite communication, and data transmission systems. Featuring a CCS center conductor and FPE dielectric, these cables provide excellent signal integrity and durability. With multiple shielding configurations available, they are designed to minimize electromagnetic interference while maintaining optimal performance.
Mechanical Specifications
Mechanical Properties
- Cable Temperature Rating: 70°C
- Jacket Break Point: ≥ 10.34 Mpa
- Minimum Bending Radius: 15x Outer Diameter
Electrical Specifications
Core Electrical Metrics
75 Ω
Impedance
85 %
Velocity of Propagation
3,000 Vac
Sparker Test
Model Comparison
Model Specifications
| Model | Shielding | Jacket Diameter |
|---|---|---|
| RG6E | Foil1/AL | 6.80mm |
| RG6 | A/P/AL | 6.90mm |
| RG6U | A/P/BC/CCA | 6.90mm |
| RG6T | BA/P/AL | 7.06mm |
| RG6Q | BA/P/DA/P | 7.40mm |
Attenuation
Attenuation (dB/100m @ 20°C)
| Frequency (MHz) | Attenuation (dB/100m) |
|---|---|
| 5 | 1.9 |
| 55 | 5.3 |
| 200 | 9.4 |
| 250 | 10.8 |
| 300 | 11.3 |
| 400 | 13.1 |
| 550 | 16.1 |
| 750 | 18.4 |
| 870 | 20 |
| 1,000 | 21.5 |
| 1,450 | 26.3 |
| 1,750 | 28.7 |
| 2,050 | 31 |
| 2,250 | 32.8 |
Compliance & Standards
Certifications
RoHS Compliant
