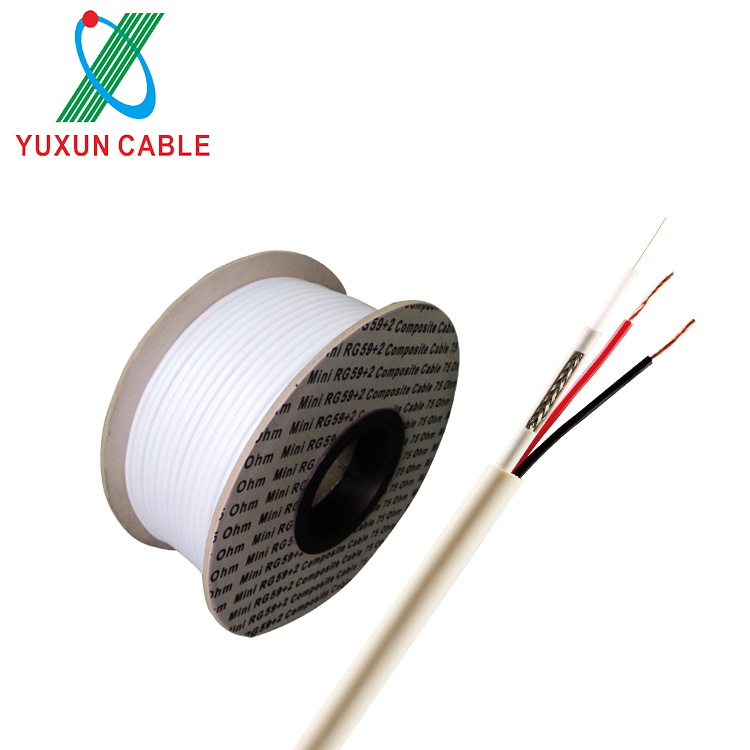

RG59 Coaxial Cable with Power Conductors
This RG59 coaxial cable combines video signal transmission with power conductors in one cable. It is designed for CCTV and security camera installations, simplifying wiring by carrying both video and power.
Technical Specifications
Product Overview
RG59 Composite Cable Solution
This RG59 coaxial cable with integrated power conductors is designed for efficient CCTV and security camera installations. By combining video signal transmission and power supply into a single composite cable, it significantly reduces wiring clutter and installation time. The cable features a high-quality shielded coaxial core for video and two dedicated power conductors, all protected by a durable outer jacket suitable for various environments.
Key Features
- Primary Applications
- CCTVSecurity CamerasVideo SurveillanceLow-Voltage Power
Technical Specifications
Impedance
75 Ohm
Impedance
Cable Dimensions
| Component | Specification |
|---|---|
| RG59 Jacket Diameter | 6.0 ± 0.2 mm |
| Power Conductor Insulation | 2.0 ± 0.05 mm |
| Power Jacket Diameter | 5.5 ± 0.2 mm |
Materials and Construction
RG59 Core Construction
- Conductor: Bare Copper (BC)
- Insulation: Foamed PE
- Shield 1: Aluminum Foil
- Shield 2: CCAM Braiding (144/0.12mm)
Power Conductor Details
- Material: CCA
- Construction: 11/0.3mm
- Insulation Color: Red/Black
- Outer Jacket Material
- PVC (White)
