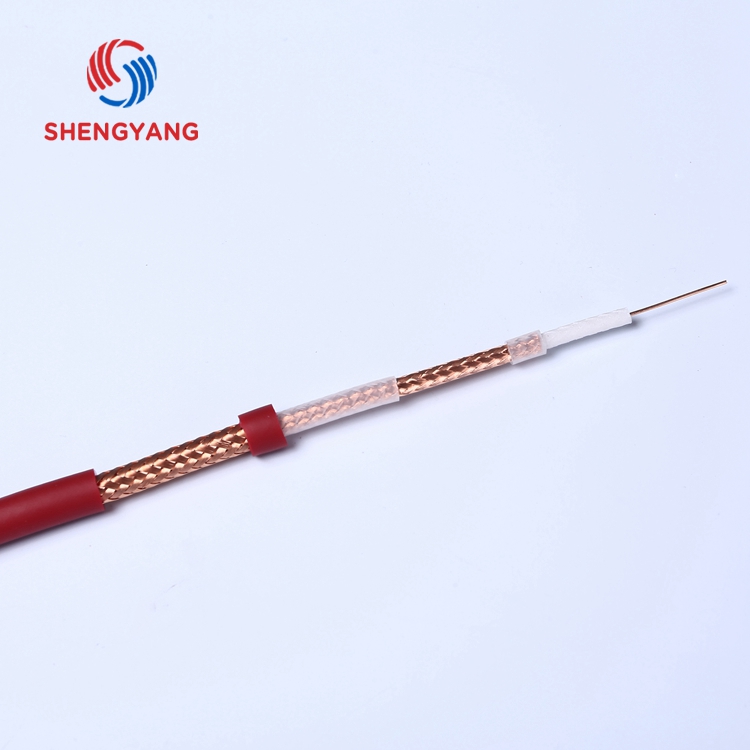

RG59 Coaxial Cable
RG59 coaxial cable is designed for signal transmission in various applications. It features a copper braid shield and dielectric insulation.
Technical Specifications
Product Overview
Professional Grade RG59 Coaxial Cable
This high-performance RG59 coaxial cable is engineered for reliable signal transmission, making it an ideal choice for diverse industrial and commercial market applications. Featuring a robust quad-shield construction and a premium silver-plated CCS conductor, the cable ensures minimal interference and signal loss across a wide frequency range. Designed for durability and environmental compliance, this solution meets strict ROHS standards and remains functional in harsh conditions ranging from -40°C to +75°C.
Construction Details
- Inner Conductor Diameter
- 0.81 mm
- Dielectric Insulation Diameter
- 3.68 mm
- Outer Jacket Diameter
- 6.73 mm
- Shielding Configuration
- Bonded AL FoilAl-Mg AlloyQuad Shielding
Performance Metrics
Mechanical Specifications
70 mm
Min Bending Radius
22.5 N
Inner Conductor Adhesion
Return Loss Profile
| Frequency Range | Loss |
|---|---|
| 5-1000 MHz | >23 dB |
| 1001-2150 MHz | >20 dB |
| 2151-3000 MHz | >16 dB |
- Characteristic Impedance
- 75 Ω
- Transmission Rate
- 83 %
General Information
Regulatory Standards
ROHS
- Operating Temperature
- -40°C to +75°C
