Reversible Disc Plough for Soil Preparation
This reversible disc plough is designed for efficient soil preparation, leaving a smooth surface. Its rotating discs reduce soil friction, preventing clogging and ensuring high productivity with low oil consumption.
Technical Specifications
Product Overview
High-Efficiency Reversible Disc Plough

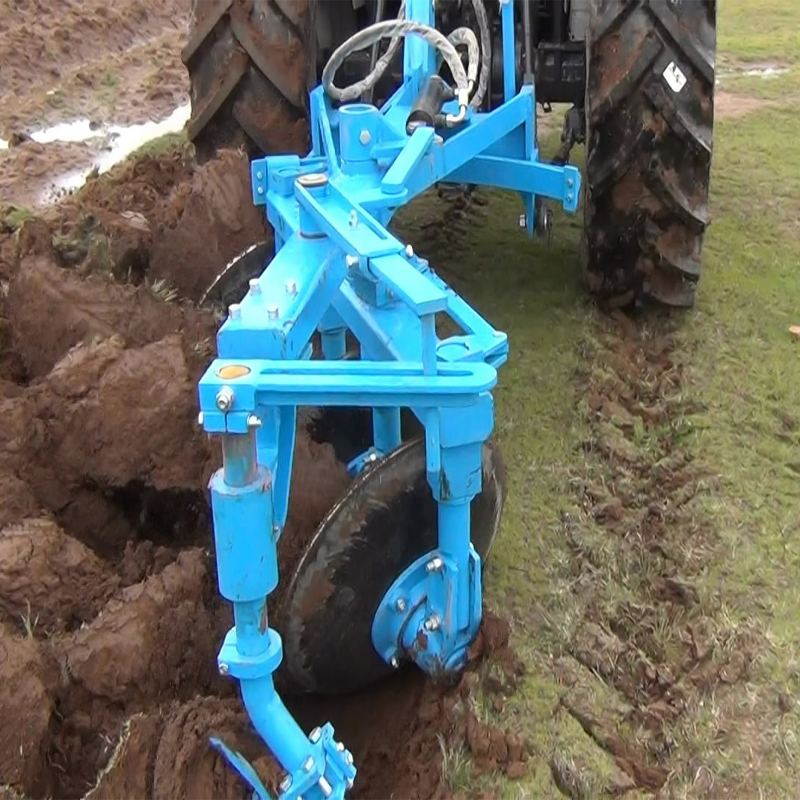

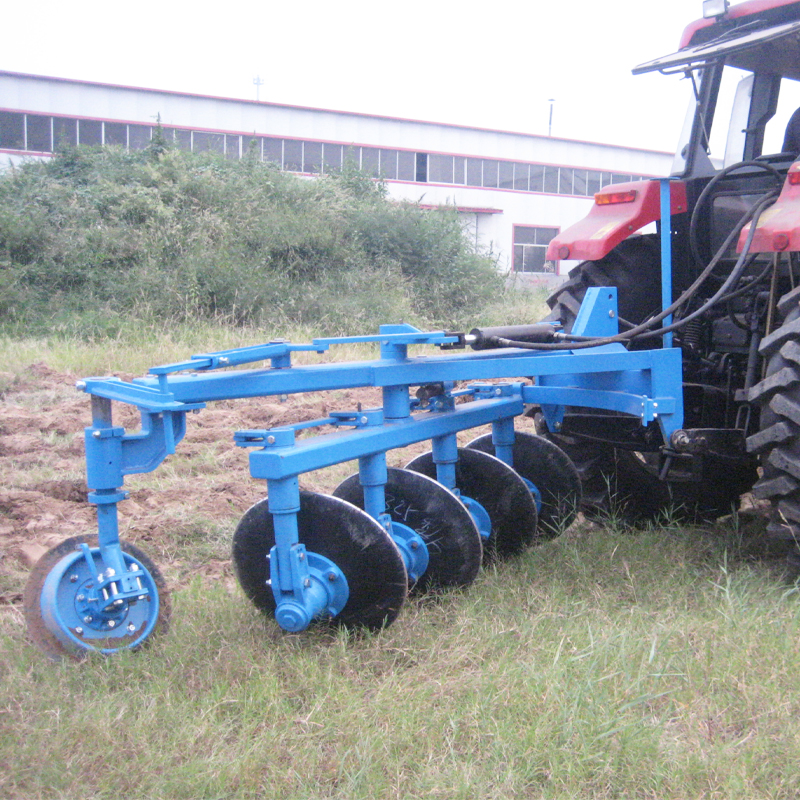

The 1LYS series reversible disc plough is designed for superior soil preparation with a focus on high productivity and low fuel consumption. Its horizontal swing construction and rotating discs minimize soil friction, preventing the unit from being blocked by grasses or crop residue. This plough is particularly effective in terraced fields and small block fields, leaving a smooth land surface after operation.
- Key Features
- Horizontal SwingLow Oil ConsumptionHigh ProductivityWear Resistant DiscsAnti-Wrapping Design
Technical Specifications
Model Specifications Comparison
| Model | Discs (Qty) | Working Width (mm) | Weight (kg) | Tractor Power (hp) |
|---|---|---|---|---|
| 1LYS-325 | 3 | 750-900 | 626-650 | 75-90 |
| 1LYS-425 | 4 | 1000-1200 | 758-790 | 90-100 |
| 1LYS-525 | 5 | 1250-1500 | 1050-1100 | 100-120 |
| 1LYS-625 | 6 | 1500-1800 | 1300-1350 | 120-130 |
| 1LYS-725 | 7 | 1750-2100 | 1450-1520 | 150-180 |
| 1LYS-825 | 8 | 2000-2400 | 1600-1680 | 180-210 |
- Disc Diameter
- 660-710 mm
- Working Depth
- 250-300 mm
Performance Metrics
Performance Highlights
300 mm
Max Depth
2,400 mm
Max Width
210 hp
Max Power
Application & Build
Suitable Land Types
- Dry cultivated land
- Terraced fields
- Small block fields
- Construction
- High-strength steel frame with heavy-duty bearings
