Technical Specifications
Overview

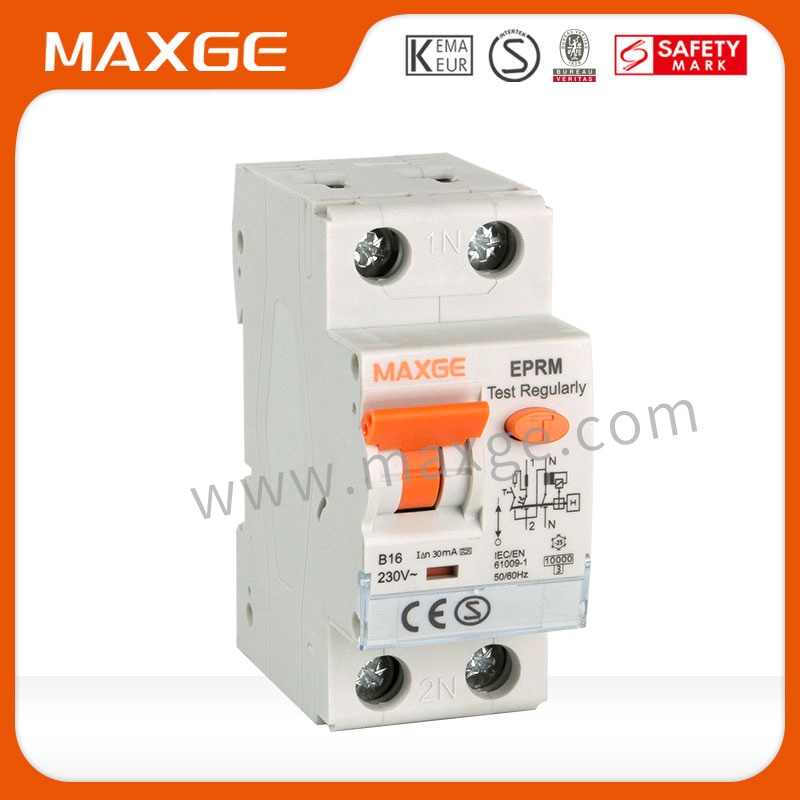

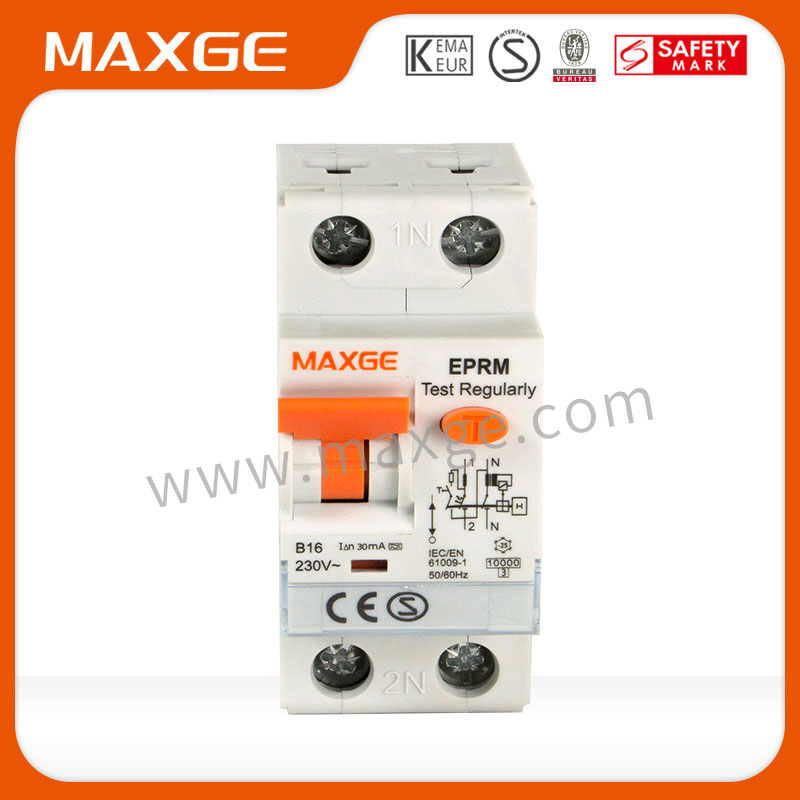

Comprehensive Circuit Protection
This Residual Current Operated Circuit Breaker (RCBO) provides robust protection against overcurrent, short circuits, and earth leakage faults. By combining the functions of a residual current device and a miniature circuit breaker in a single, compact unit, it ensures rapid disconnection during fault conditions to prevent electrical shock and reduce fire risks. Engineered for reliability and ease of use, this device is suitable for a wide range of residential, commercial, and industrial electrical systems.

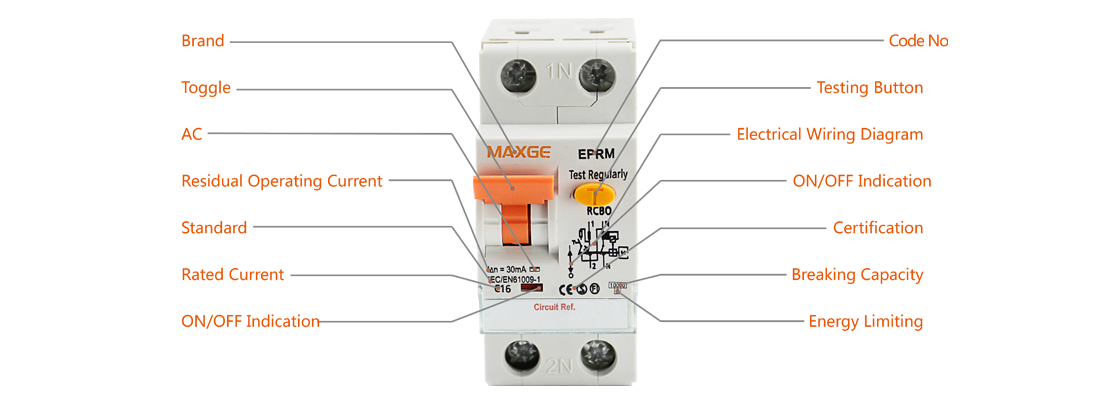

Technical Specifications

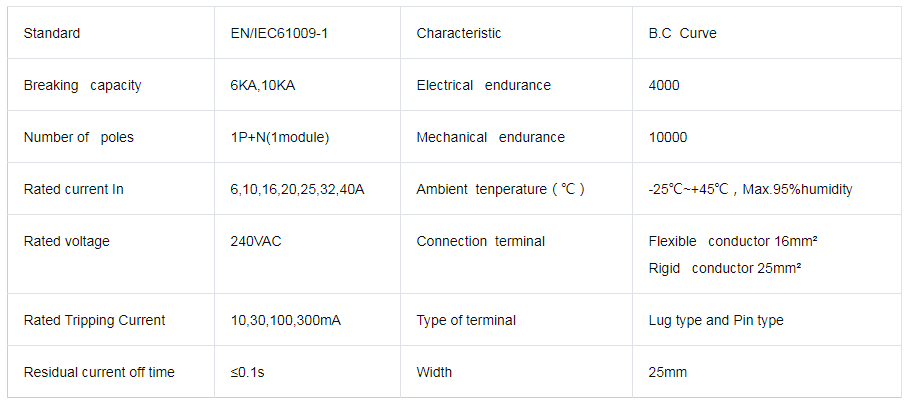

Electrical Ratings
240 VAC
Rated Voltage
30 mA
Rated Tripping Current
6 kA
Breaking Capacity
Device Endurance
- Electrical Endurance: 4000 cycles
- Mechanical Endurance: 10000 cycles
Operating Conditions
| Parameter | Value |
|---|---|
| Temperature Range | -25°C to +45°C |
| Max Humidity | 95% |
- Standards Compliance
- EN/IEC 61009-1CE
Dimensions & Installation

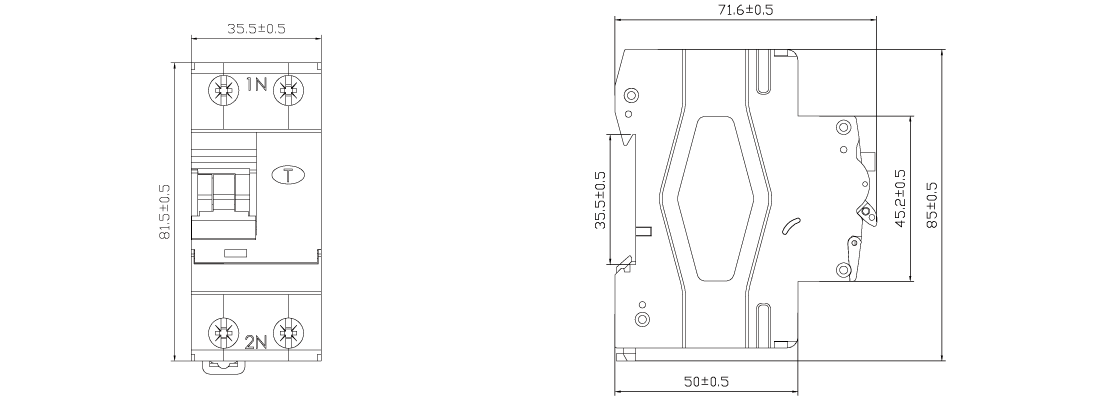

Physical Dimensions
| Dimension | Measurement |
|---|---|
| Height | 81.5 mm |
| Width | 35.5 mm |
| Depth | 71.6 mm |
Terminal Compatibility
- Flexible Conductor: up to 16mm²
- Rigid Conductor: up to 25mm²
- Terminal Types: Lug and Pin
