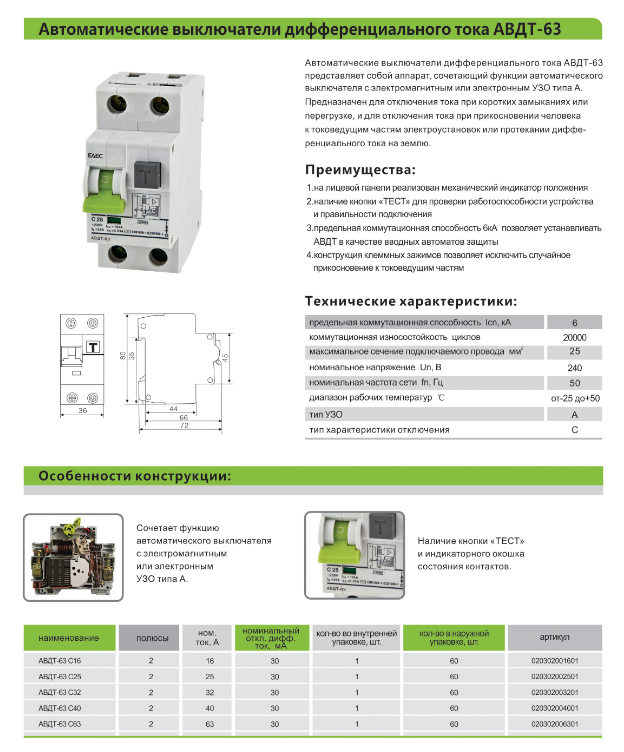

Residual Current Circuit Breaker with Overload Protection
This RCBO provides residual current circuit breaker functionality with overload protection. It is designed to disconnect current in case of short circuits or overloads, and to disconnect current when a person touches live parts of electrical installations or leakage of differential current to ground.
Technical Specifications
Product Overview
Professional RCBO Series
This Residual Current Circuit Breaker with Overload Protection (RCBO) provides comprehensive safety by combining the functions of an automatic circuit breaker and a residual current device. It is designed to disconnect power immediately during short circuits, overloads, or ground fault leakage. With a focus on reliability, the device features a mechanical status indicator and a manual test button for routine operability checks.
Technical Specifications
Available Rated Currents
- 25
- 32
- 40
Rated Residual Operating Currents
- 30
- 100
- 300
- 500
Key Performance Metrics
6 kA
Ultimate Switching Capacity
20,000 cycles
Switching Endurance
25 mm²
Max Wire Cross-section
- Number of Poles
- 2 Pole
- Rated Voltage
- 230/415V AC
- Operating Temperature Range
- -25°C to +50°C
Features and Compliance
Device Features
Mechanical Status IndicatorTest ButtonTouch-Proof TerminalsType A RCD
- Standards Compliance
- EN61009-1IEC61009-1
