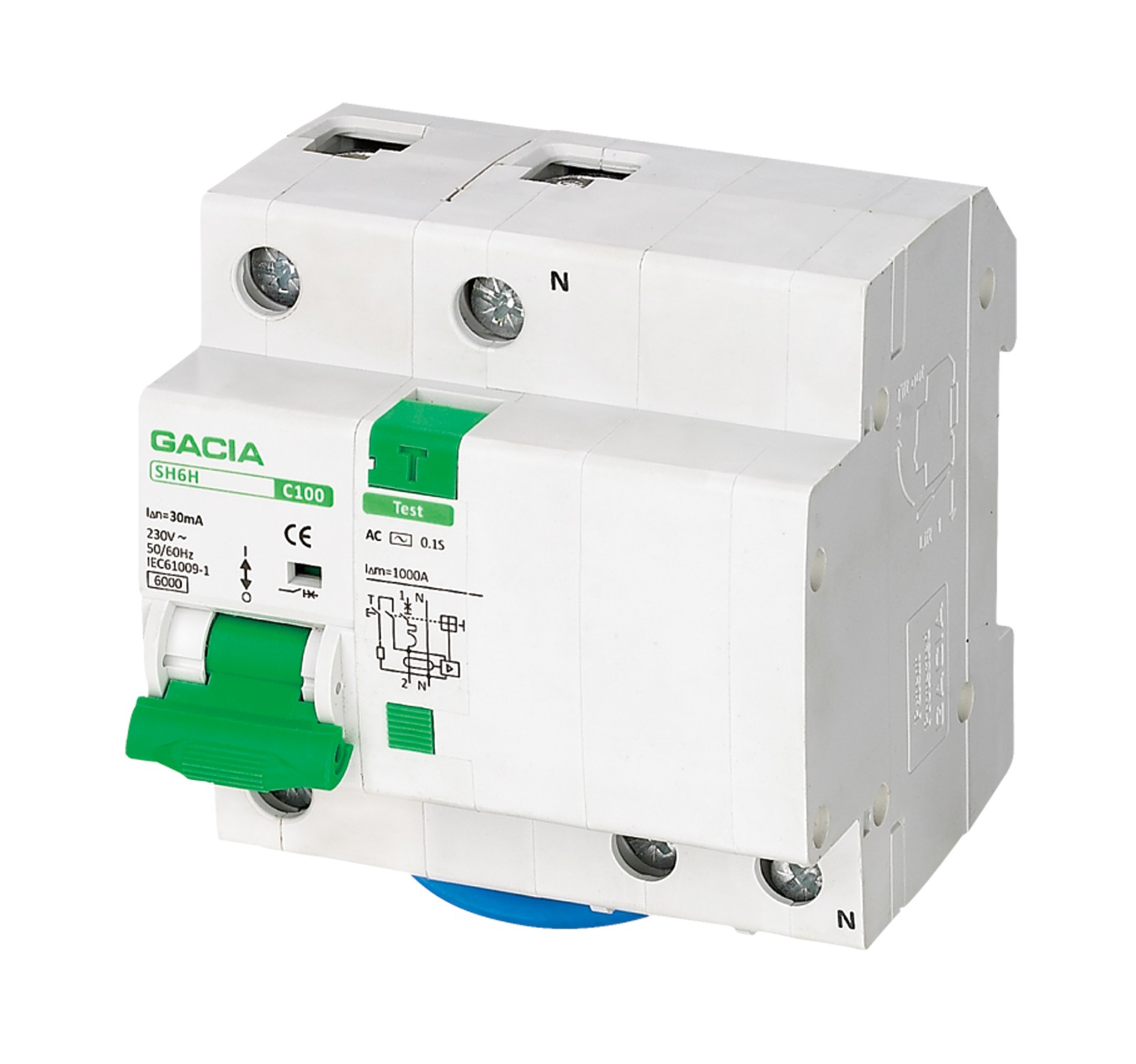

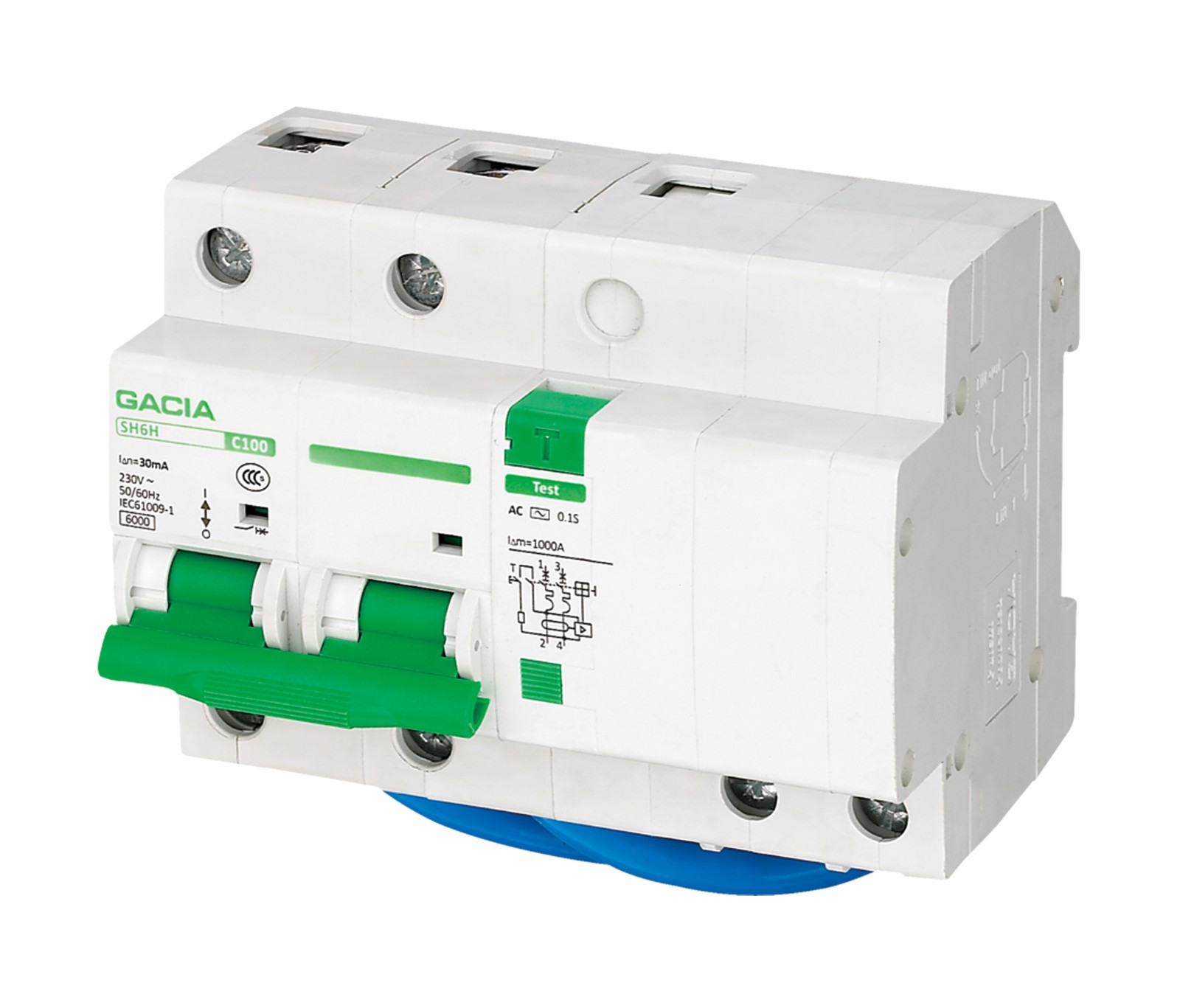

Residual Current Circuit Breaker with Overcurrent Protection
These SH6H residual current circuit breakers combine a residual current device with a circuit breaker. They feature thermal overload release and magnetic short circuit current release.
Technical Specifications
Product Overview
Professional RCBO Solution
The SH6H residual current circuit breaker with overcurrent protection is engineered for reliable use in both domestic and industrial environments. Combining a residual current device with a thermal-magnetic circuit breaker, this unit provides comprehensive protection against overloads and short circuits. It features voltage-independent operation and meets international safety standards for consistent, high-performance power management.
Technical Specifications
Rated Breaking Capacity
6 kA
Rated Breaking Capacity
Rated Residual Current
- 30mA
- 100mA
- 300mA
Tripping Characteristics
B-TypeC-TypeD-Type
Operational Performance
| Parameter | Value |
|---|---|
| Impulse Withstand | 1000A |
| AC Trip Time | 0.15s |
| Frequency | 50/60Hz |
- Rated Operational Voltage
- 230V - 400V AC
- Rated Current Capacity
- 32 A
Standards & Compliance
- Compliance Standards
- IEC/EN 61009-1CE
