Residual Current Circuit Breaker 40A
This residual current circuit breaker (RCCB) protects against electrical shock and fire hazards caused by earth leakage currents. It is rated for 40A and has a residual operating current of 0.03A (30mA).
Technical Specifications
Product Overview

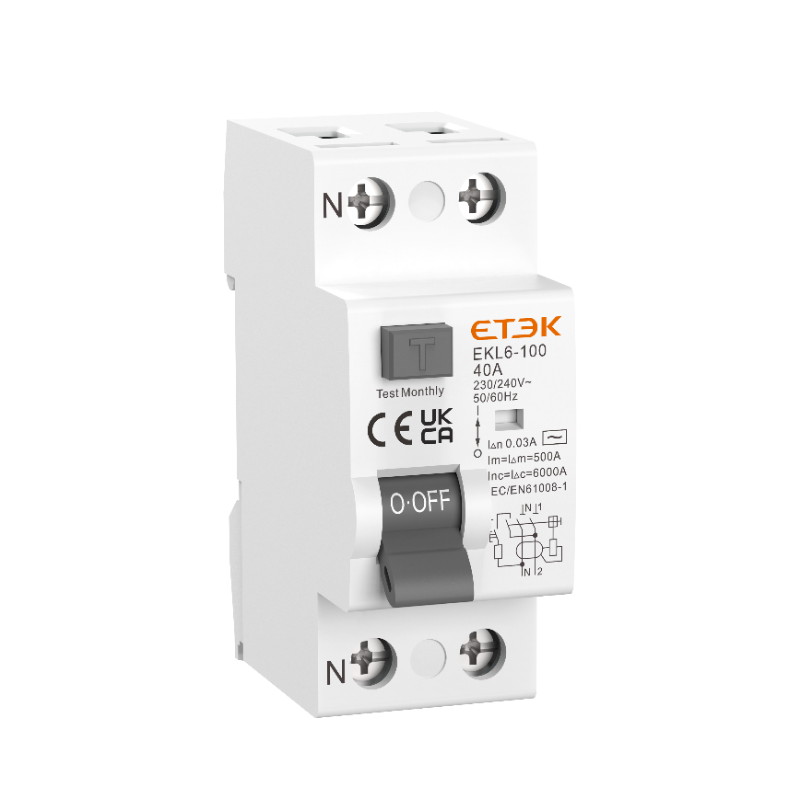

Residual Current Circuit Breaker (RCCB)
This EKL6-100 series Residual Current Circuit Breaker is engineered to provide essential protection against electrical shock and fire hazards caused by earth leakage currents. It is designed to react to both AC and pulsating DC fault currents, ensuring reliable safety in residential and commercial electrical systems. The device features a user-friendly test button for monthly functional verification and clear status indicators.
Electrical Ratings
- Rated Current
- 40 A
- Rated Voltage
- 230/240V AC400/415V AC
- Frequency
- 50/60 Hz
Performance Metrics
Key Performance Metrics
0.03 A
Residual Operating Current (IΔn)
500 A
Making and Breaking Capacity (Im)
6,000 A
Rated Conditional Short-Circuit Current (Inc)
Compliance and Standards
Standards & Compliance
IEC/EN 61008-1CEUKCA
Installation & Usage
Status Indicators
- O-OFF position indication
- Neutral (N) terminal marking
- Maintenance
- Includes test button for monthly testing
