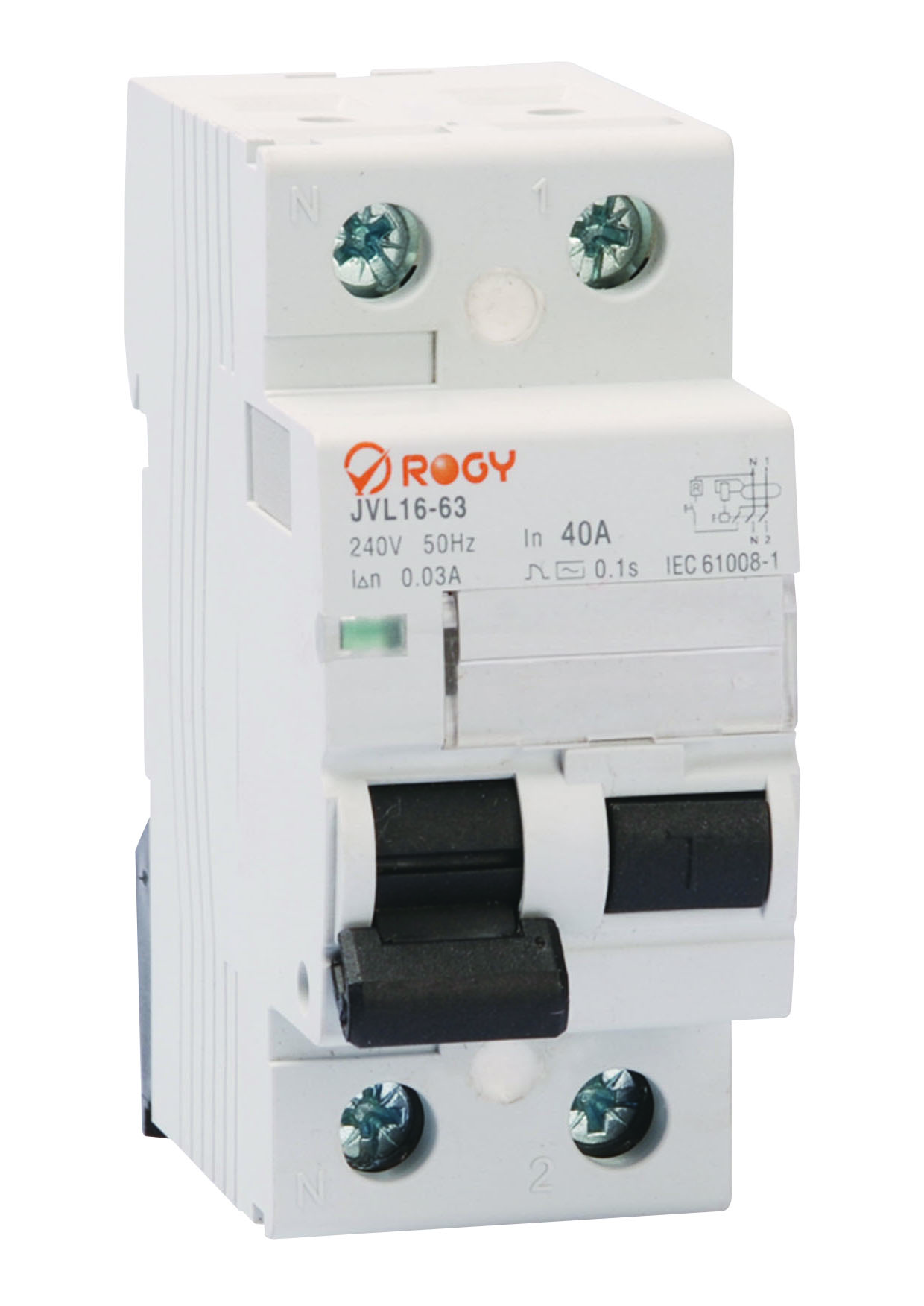

Residual Current Circuit Breaker 40A 0.03A
This residual current circuit breaker is designed for electrical safety. It has a rated voltage of 240V/415V at 50Hz, a rated current of 40A, and a residual operating current of 0.03A, tripping in 0.1 seconds and complying with IEC 61008-1 standards.
Technical Specifications
Product Overview
Professional Protection Solutions
This Residual Current Circuit Breaker (RCCB) is engineered for superior electrical safety, providing reliable protection against earth faults and leakage currents. Featuring an elegant arc-shape design with a clear contact position indicator, it allows for quick identification of faulty lines. Its fire-resistant construction and high short-circuit withstand capacity ensure durable and safe operation in demanding commercial and industrial environments.
Key Metrics
Performance Highlights
40 A
Rated Current
0.03 A
Rated Residual Operating Current
10 kA
Rated Short-Circuit Current
Technical Data
Electrical Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | 230/400V AC |
| Frequency | 50/60Hz |
| Poles | 2, 4 |
| Type | Electro-magnetic |
| Endurance | 4000 cycles |
- Residual Current Types
- AACGS
Features
Design Advantages
- Finger-protected connection terminals
- Fire-resistant enclosure material
- Compatible with pin and fork busbars
- Independent of power supply voltage
- Clear visual contact position indicator
