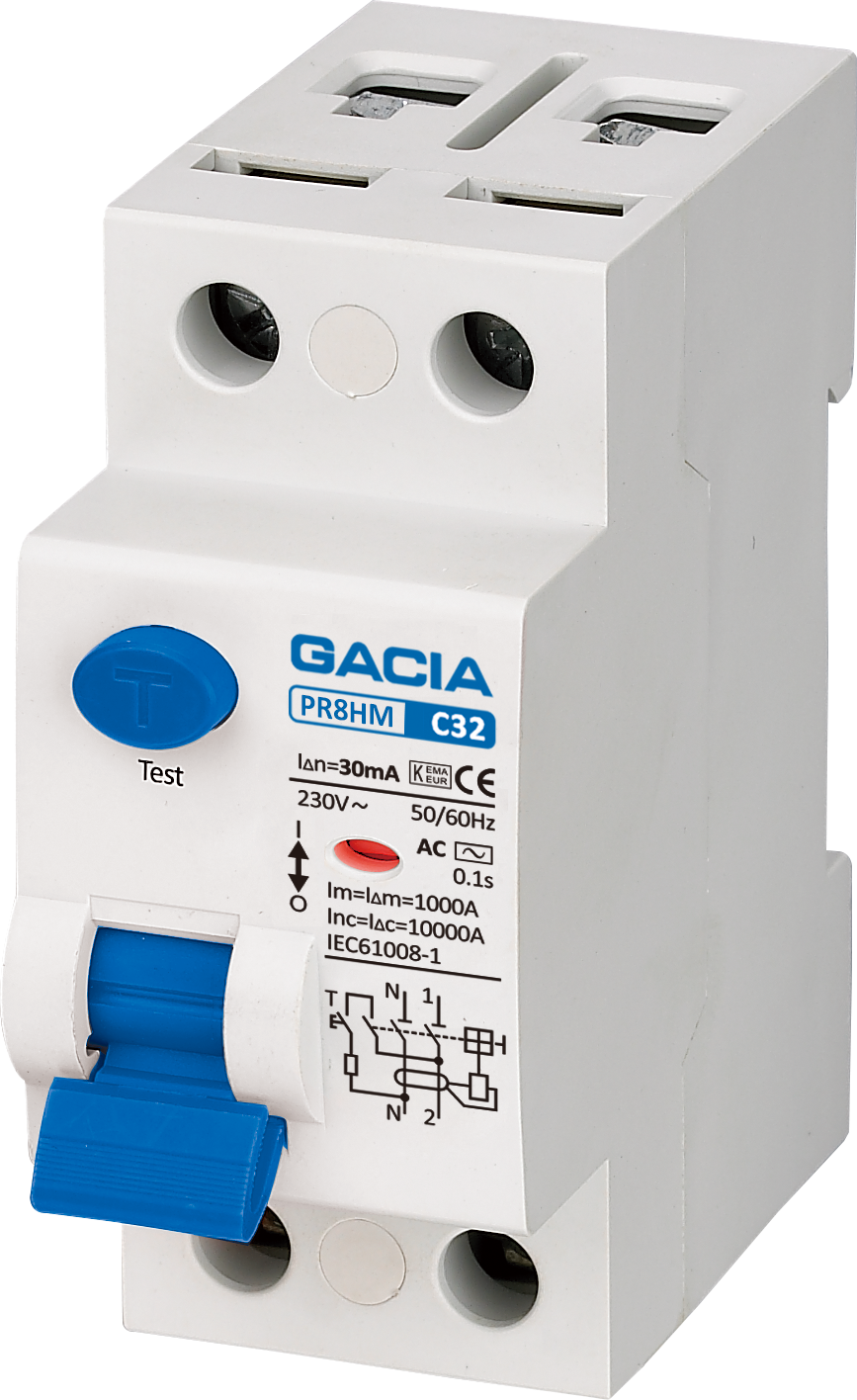

Residual Current Circuit Breaker
This residual current circuit breaker is suitable for both domestic and industrial applications. Based on a permanent magnet principle, it offers voltage independent function, with voltage only necessary when testing with the T test button.
Technical Specifications
Product Overview
Versatile Electrical Protection
The PR8HM residual current circuit breaker is engineered for both domestic and industrial environments. Utilizing a permanent magnet principle, it provides voltage-independent protection for reliable circuit safety. The device is fully compliant with IEC/EN 61008-1 standards, ensuring high performance under demanding conditions.
Key Performance Metrics
Essential Electrical Data
100 A
Rated Current
10 kA
Short Circuit Strength
0.1 s
Response Time
Electrical Specifications
Operational Ratings
| Parameter | Value |
|---|---|
| Operational Voltage | 230/400V AC |
| Residual Currents | 10, 30, 100, 300mA |
| Frequency | 50/60Hz |
Certification and Standards
- Certifications
- CEKEMA
Technical Details
Compatible Types
- AC
- AC+S
- A
- A+S
- Pole Configuration
- 2 and 4-pole versions available
