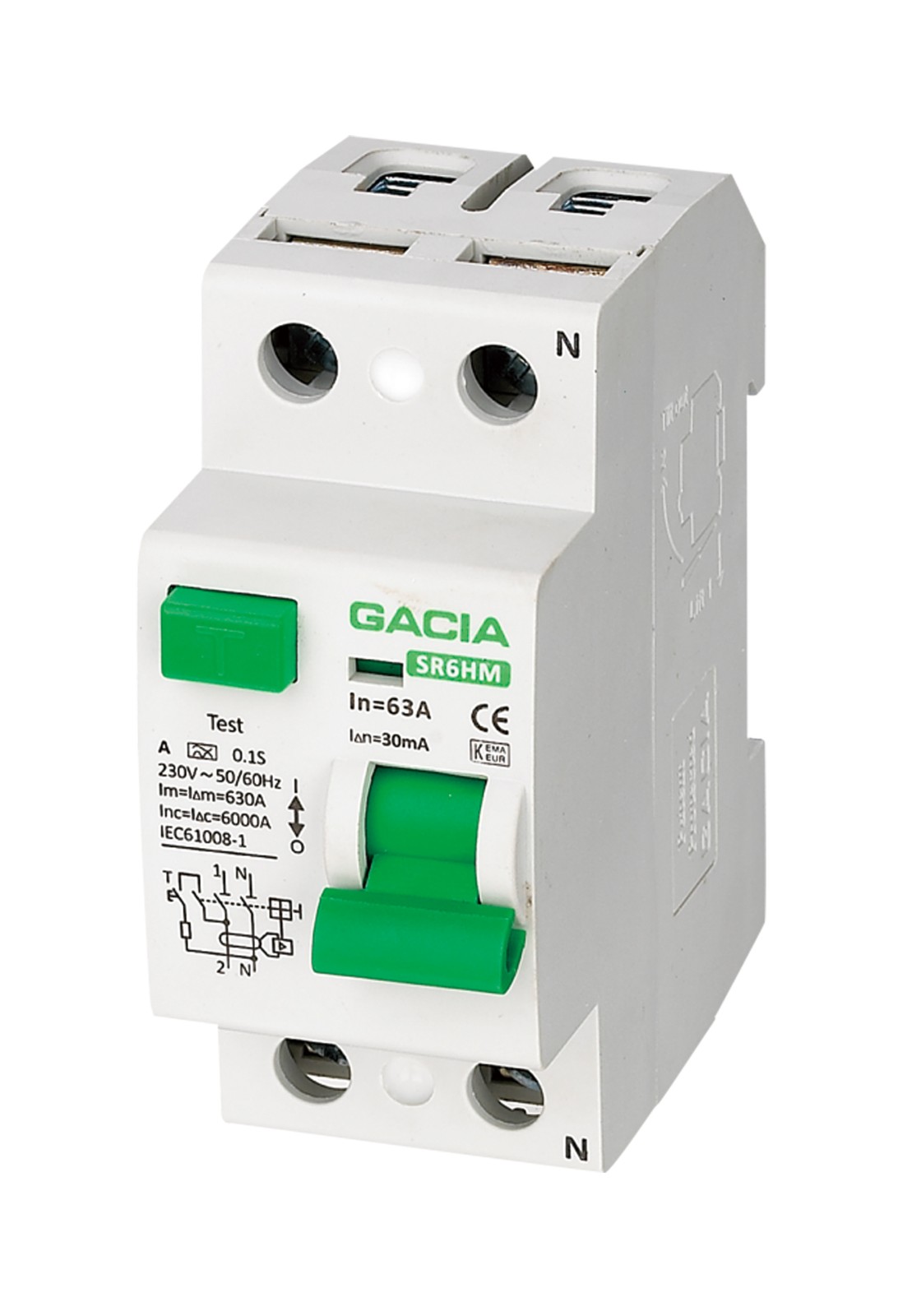

Residual Current Circuit Breaker
These residual current circuit breakers are suitable for both domestic and industrial applications. Based on a permanent magnet principle, they offer voltage independent function, with voltage only necessary when testing with the T test button.
Technical Specifications
Product Overview
Professional Grade Residual Current Protection
The SR6HM series residual current circuit breakers are engineered for both domestic and industrial environments, providing reliable electrical safety. Utilizing the permanent magnet principle, these devices offer voltage-independent functionality for enhanced protection. These breakers comply with IEC/EN 61008-1 standards, ensuring robust performance under demanding operational conditions.
Technical Specifications
Rated Current
63 A
Max Rated Current
Rated Residual Current
- 10
- 30
- 100
- 300
Device Types
ACA
- Conditional Rated Short Circuit Strength
- 6 kA
- Rated Operational Voltage
- 230/400V AC
- Pole Versions
- 2-pole4-pole
Compliance and Testing
- Certifications
- CEKEMA
- Primary Standard
- IEC/EN 61008-1
- Maintenance Recommendation
- Test periodically with the T test button once every month.
