Residual Current Circuit Breaker
Residual current circuit breakers are suitable for use in domestic and industrial settings. These devices utilize a permanent magnet principle, providing voltage-independent function.
Technical Specifications
Overview

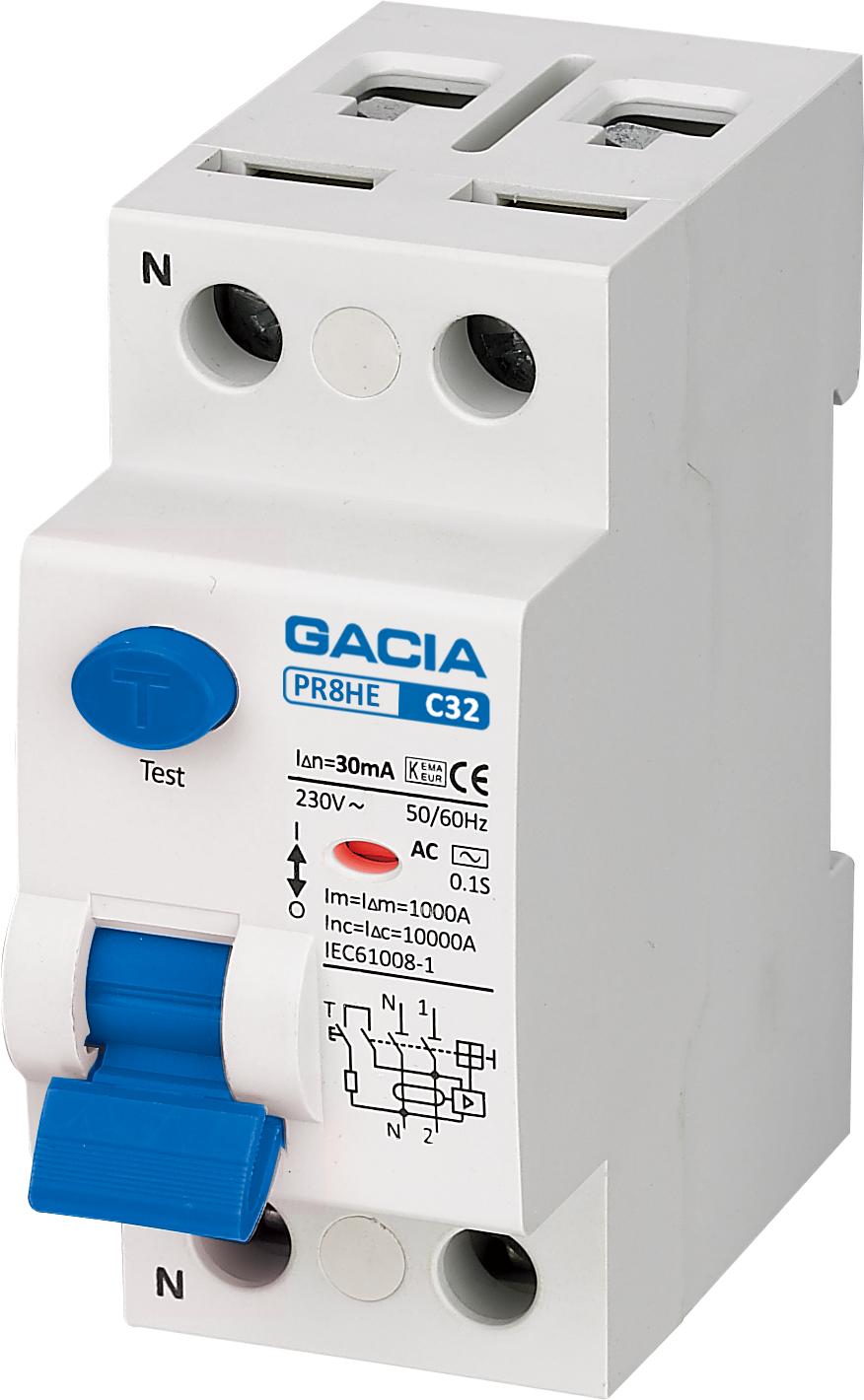

About the PR8HE Series
The PR8HE series residual current circuit breakers are engineered for both domestic and industrial electrical protection. Built on the permanent magnet principle, these devices offer voltage-independent functionality for enhanced reliability. They provide comprehensive protection against earth leakage currents, ensuring safety in compliance with international standards.
Electrical Ratings
Residual Current Sensitivity
- 10mA
- 30mA
- 100mA
- 300mA
- Rated Current
- 100 A
- Operational Voltage
- 230V AC400V AC
Technical Performance
Key Performance Metrics
10 kA
Short Circuit Strength
1,000 A
Impulse Withstand
- Pole Configuration
- 2-pole4-pole
Standards & Compliance
Standards & Certifications
IEC/EN 61008-1CEKEMA
Design Features
- Device Types
- ACAC+SAElectronic
