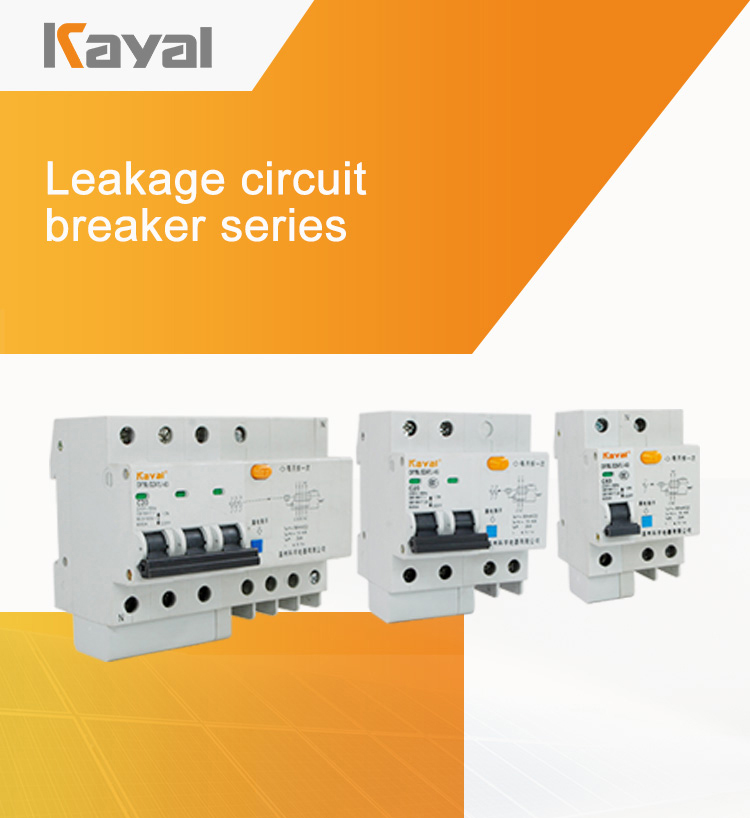

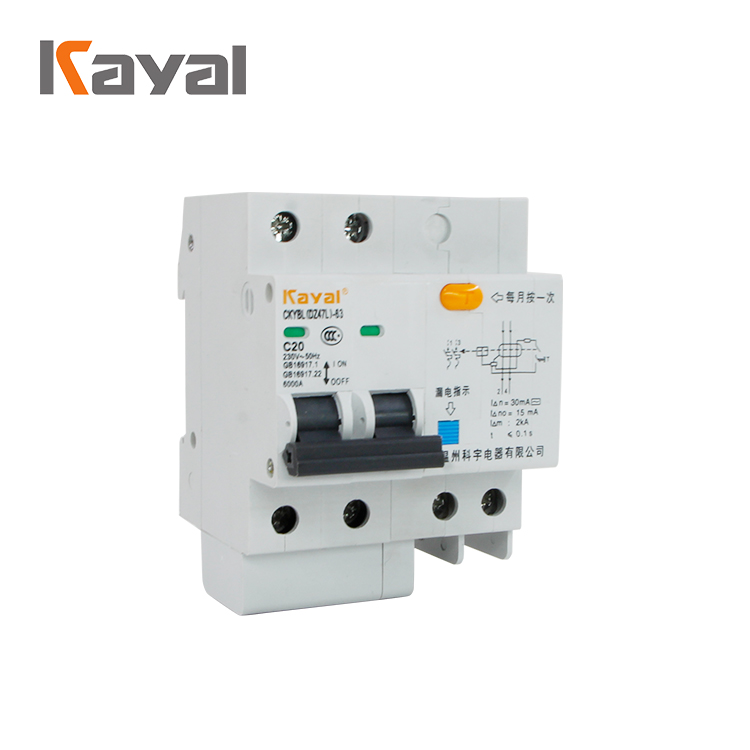

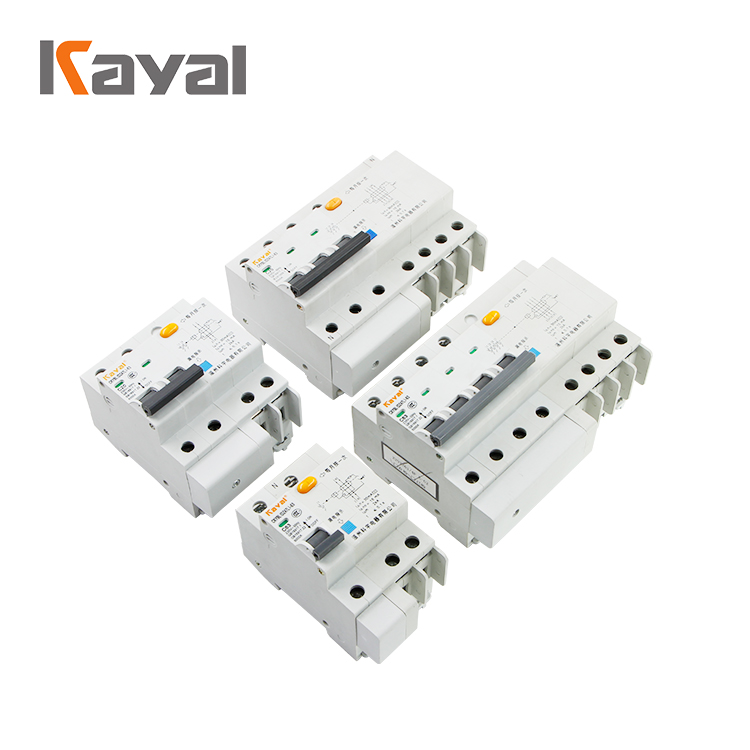

Residual Current Circuit Breaker
This residual current circuit breaker (RCCB) quickly disconnects a circuit when it detects current leakage. It is designed to protect against electric shock and reduce the risk of electrical fires.
Technical Specifications
Product Overview

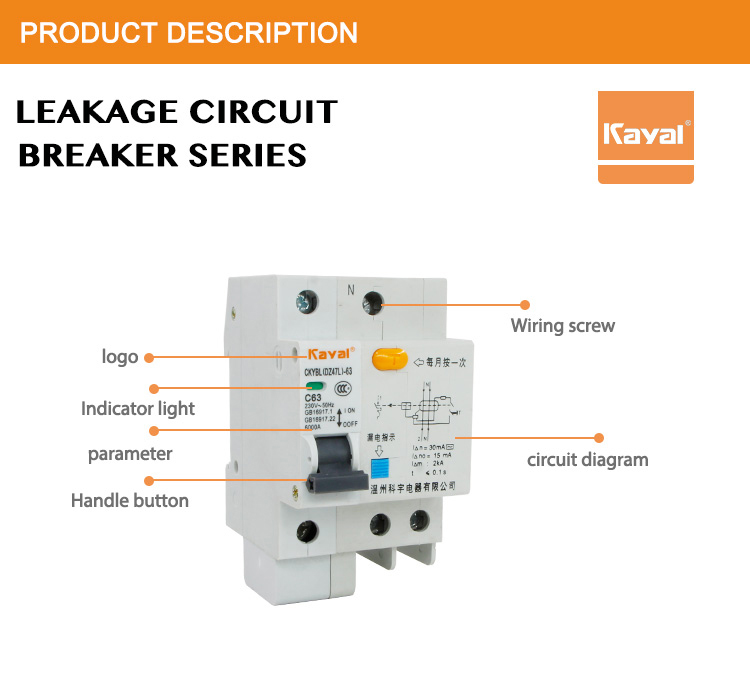

Professional Residual Current Circuit Breaker
This Residual Current Circuit Breaker (RCCB) is designed to provide critical electrical safety by immediately cutting off fault circuits during shock hazards or earth leakage events. Compliant with IEC61008 standards, it is engineered to prevent fire and shock risks in residential, commercial, and industrial environments. The device is suitable for both 1-phase 230V and 3-phase 400V systems, offering reliable protection with a robust 6000A short-circuit capacity.
Electrical Specifications
Rated Current
- 16
- 20
- 25
- 40
- 50
- 63
Key Performance Metrics
0.3 s
Max Off-time
4,000 cycles
Endurance
20 IP
Protection Degree
- Rated Voltage
- AC 230/240VAC 400/415V
- Short Circuit Capacity
- 6000 A
Installation & Environment
Operating Environment
| Parameter | Requirement |
|---|---|
| Temperature | -5°C to +40°C |
| Altitude | < 2000m |
| Pollution Class | II |
| Installation Class | II or III |
- Mounting Method
- DIN Rail mounting (Vertical installation required)
