Reclaimed Rubber Cutting Machine

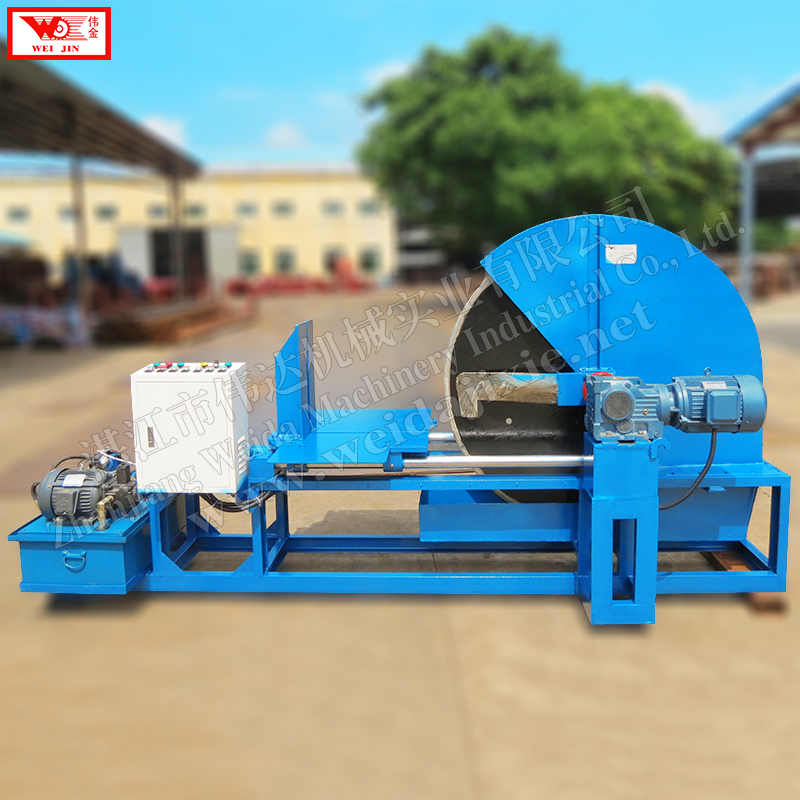

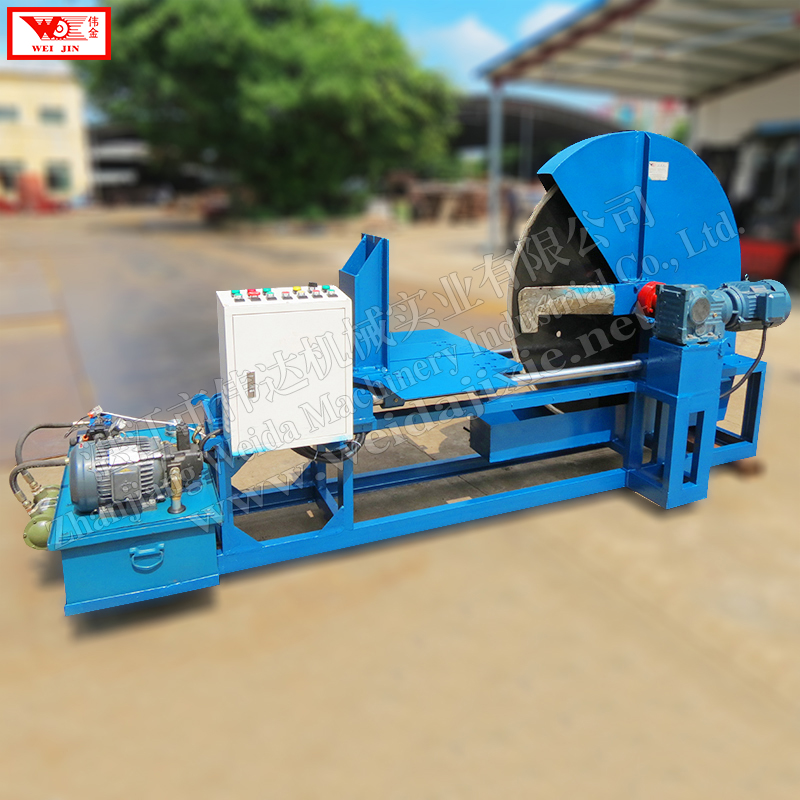

This rotating-disc cutting machine is designed for processing reclaimed rubber. It cuts rubber blocks into smaller pieces such as slices, granules, and bars.
Technical Specifications
Overview
Professional Rubber Cutting Solution
This high-performance rotating-disc cutting machine is engineered to process natural, synthetic, reclaimed, and compound rubber materials efficiently. It offers versatile cutting capabilities, allowing rubber blocks to be transformed into smaller blocks, slices, granules, or bars. Built with a robust hydraulic system for consistent performance, it is an essential component for modern industrial rubber and plastic processing facilities.
Technical Specifications
Model Specifications
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Production Capacity | 2t/h | 3t/h |
| Rotational Speed | 50r/min | 50r/min |
| Power Rating | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
- Compatible Materials
- Natural RubberReclaimed RubberCompound RubberSynthetic RubberPlastic
Operational Features
Key Operational Features

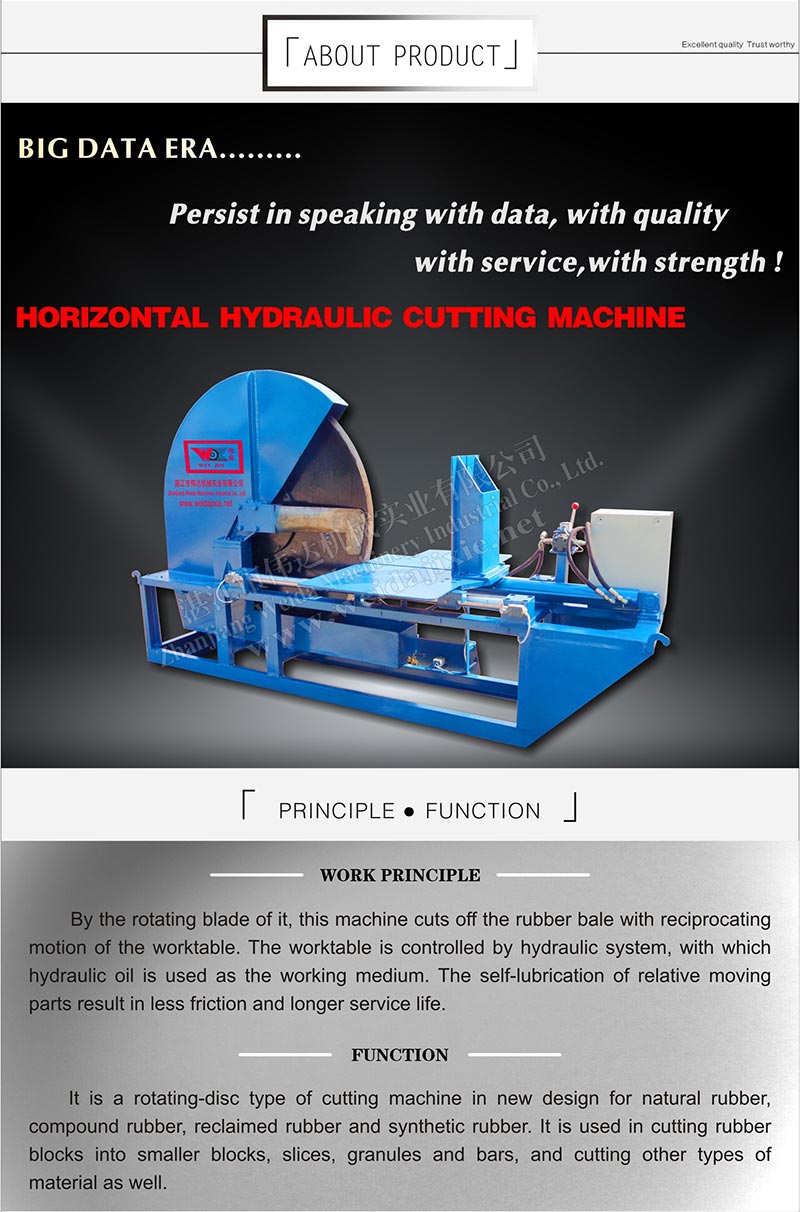

- Rotating-disc cutting mechanism for precision
- Hydraulic control system for powerful, consistent operation
- Self-lubricating moving parts to reduce friction and maintenance
- Integrated water box for cooling and lubrication
- Includes cutting guide plate and pushing plate for controlled feed
Support and Maintenance
The equipment is delivered as a complete unit for easy installation via electrical connection and ground fixing. It includes a one-year warranty on the main machine structure and equipment, with technical support available for equipment selection and operational training.
