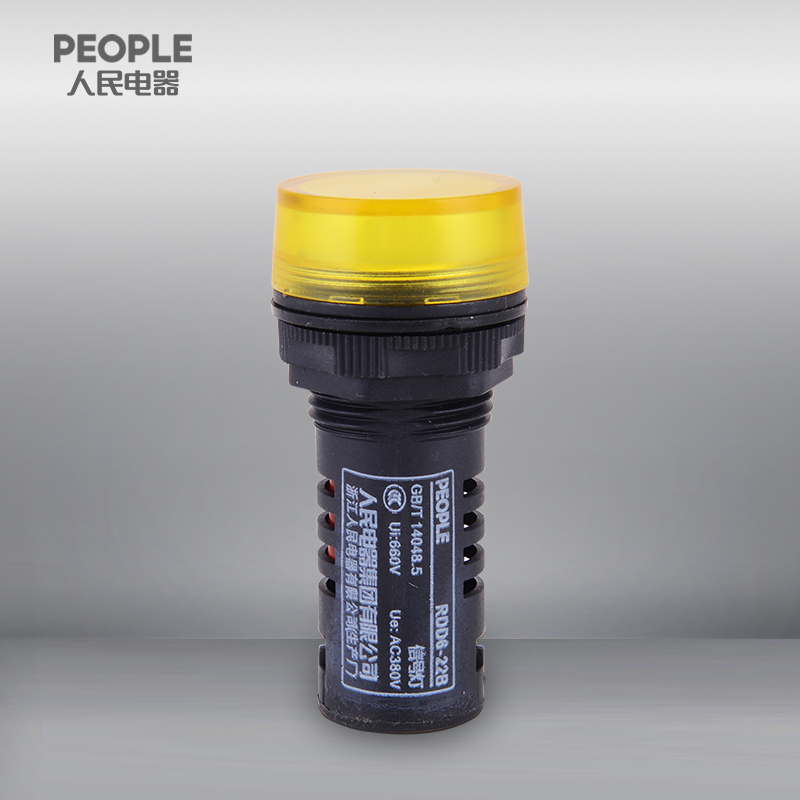

RDD6 Series Industrial Signal Light
The RDD6 series signal light is designed for industrial applications requiring reliable visual indication. It operates at Ui:660V and Ue: AC380V, conforming to GB14048.5 standards.
Technical Specifications
Product Overview
Industrial Signal Light Performance
The RDD6 series industrial signal light features high-brightness LED chips designed for long service life and low energy consumption. Engineered with premium imported materials, these lights are wear-resistant and highly durable, capable of maintaining reliable performance in high-vibration environments. They serve as critical components for visual status indication, accident alerts, and pre-announcement signals across various industrial sectors.
Technical Specifications
Rated Operational Voltage (Ue)
- AC 220V
- AC 380V
Vibration Frequency Tolerance
2 Hz
Min Frequency
80 Hz
Max Frequency
- Rated Insulation Voltage (Ui)
- 660 V
- Acceleration Tolerance
- 0.7 G
Compliance and Usage
Typical Industrial Applications
- Power Systems
- Telecommunications
- Machine Tools
- Shipping Industry
- Textile Manufacturing
- Printing Equipment
- Mining Machinery
- Standards Compliance
- GB/T 14048.5
