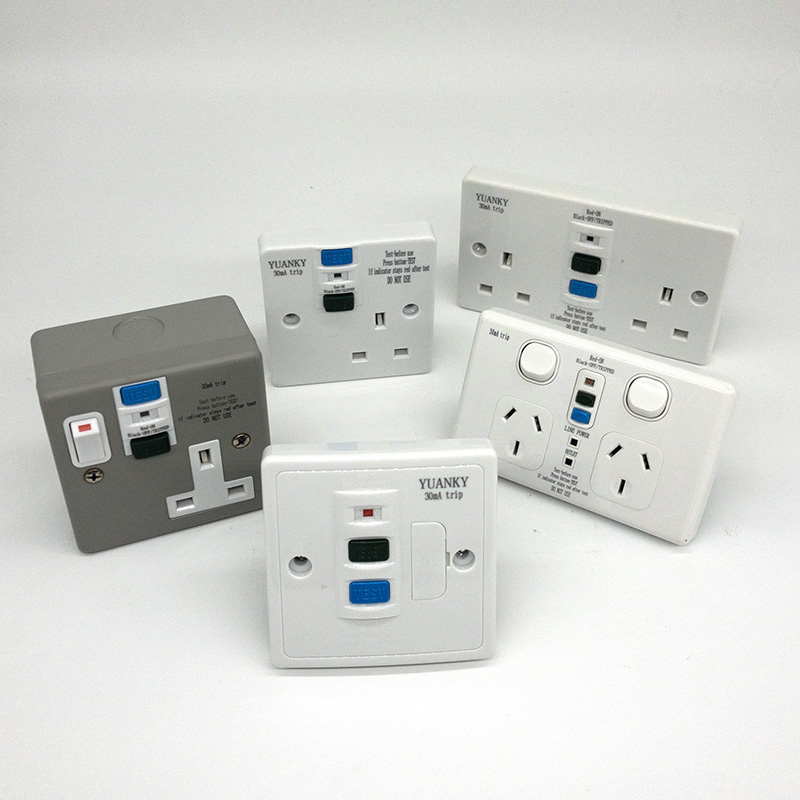

RCD Protected Electrical Safety Socket
This RCD protected safety socket provides enhanced electrical safety by immediately cutting off power in the event of a ground fault or leakage current. It is equipped with a test button to ensure proper functionality and clear indication of power status.
Technical Specifications
Product Overview
Safety Enhanced RCD Socket
This RCD protected safety socket is designed to provide critical protection against the risk of electrocution in residential and professional environments. It monitors current flow and instantly cuts power in the event of leakage, providing a high level of electrical safety. The unit features easy-to-use testing mechanisms to ensure the device remains fully operational and reliable at all times.
Technical Specifications
Trip Sensitivity
30 mA
Trip Sensitivity
- Minimum Installation Depth
- 25 mm
- Compliance Standards
- BS7288BS1363BS1362
Operation and Maintenance
Visual Status Indicators
| Indicator Color | Status Meaning |
|---|---|
| Red | ON / Power Active |
| Black | OFF / Tripped |
Testing Procedures
- Press white test button to simulate leakage
- Indicator must turn black to signify successful trip
- Press green reset button to restore power
- Do not use if indicator remains red after test
Installation Details
Available Materials
SPR PlasticSMR Metal
