RCBO Circuit Breaker with Overcurrent Protection
This RCBO circuit breaker provides electric shock hazard protection in case of electrical installation insulation failures. It prevents fires caused by earth current leakages, and provides overload and short circuit protection.
Technical Specifications
Product Overview

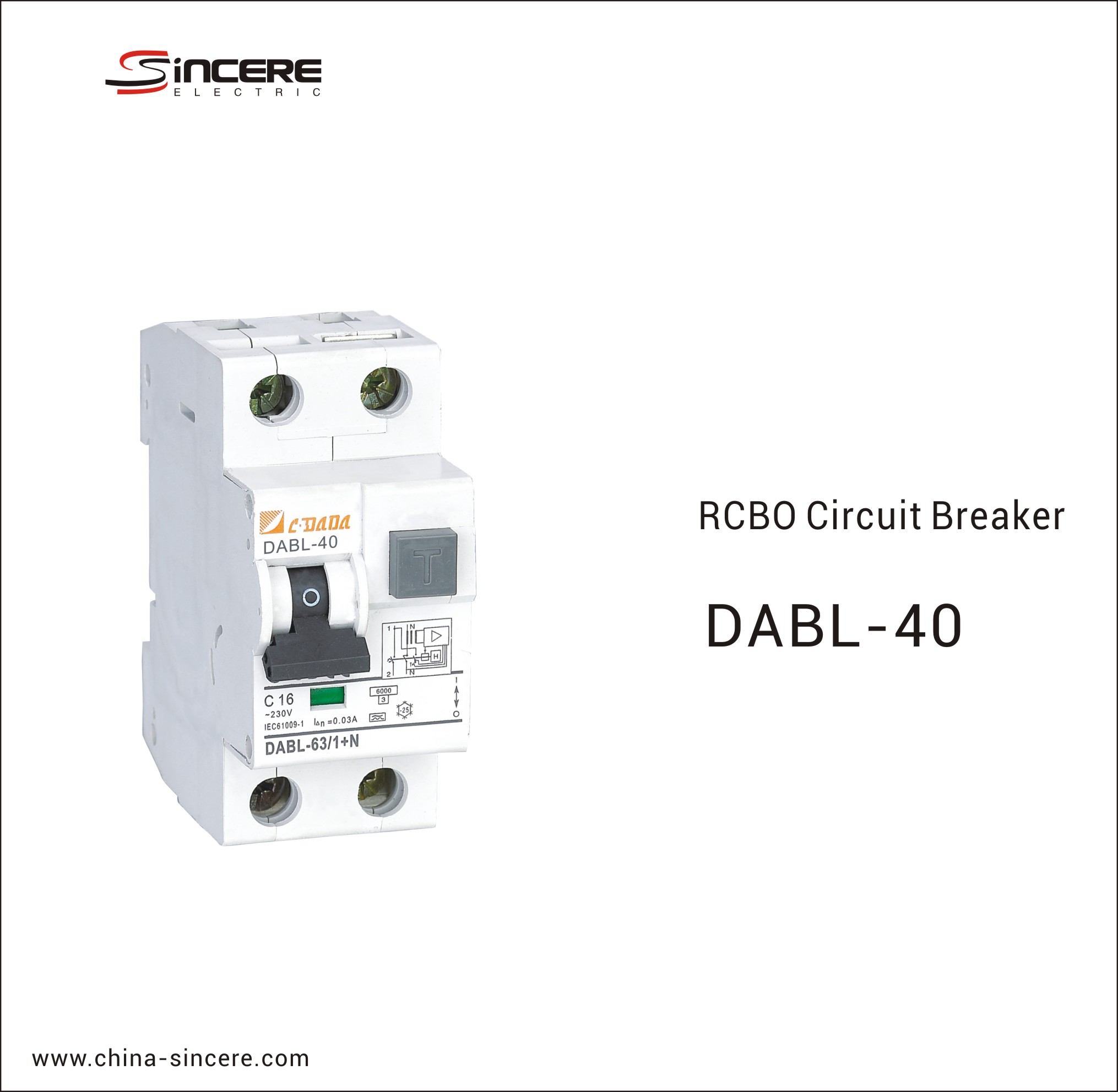

RCBO Circuit Breaker with Overcurrent Protection
The DABL-40 series residual current operated circuit breaker provides comprehensive protection against electric shock, insulation failures, overload, and short circuits. Engineered for reliability in group lines, these devices are suitable for both indoor and outdoor installations including residential, commercial, and industrial lighting or appliances. With integrated electronic modules and high-strength construction, they ensure safe operation across a wide range of climatic conditions.
Technical Specifications
Breaking Capacity
6 kA
Breaking Capacity
- Certifications & Standards
- ISO 9001:2008IEC 61009-1GB 16917.1
- Operating Temperature Range
- -25°C to +40°C
Key Advantages
Advanced Features
- Combined circuit with differential protection electronic module
- Independent contact position indicator
- Integrated TEST button for operational checks
- Thermal loss reduction via terminal clamp notches
- Surge overvoltage protection via D-class varistor
Installation Details
Mounting Features
- 2-modular compact design
- Cross-functional screw heads (+/-) to facilitate mounting
- Anti-fall screw design for installation safety
