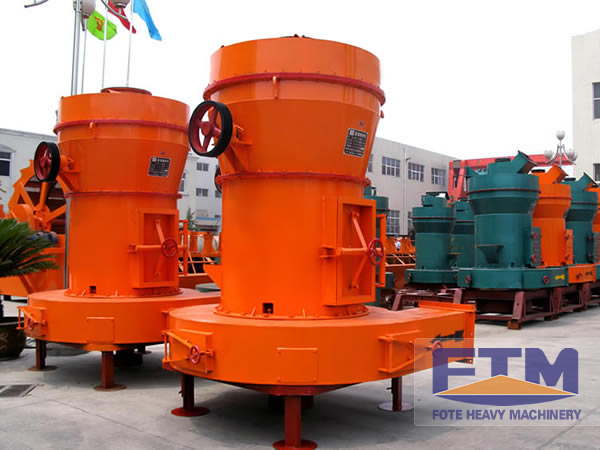

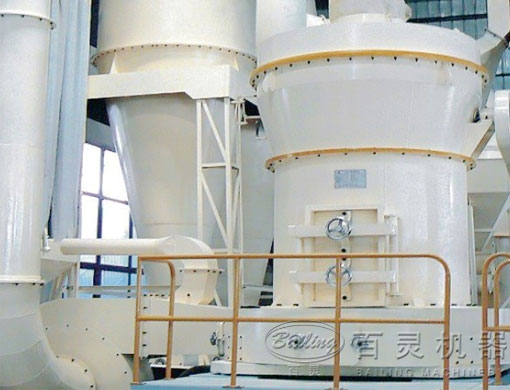

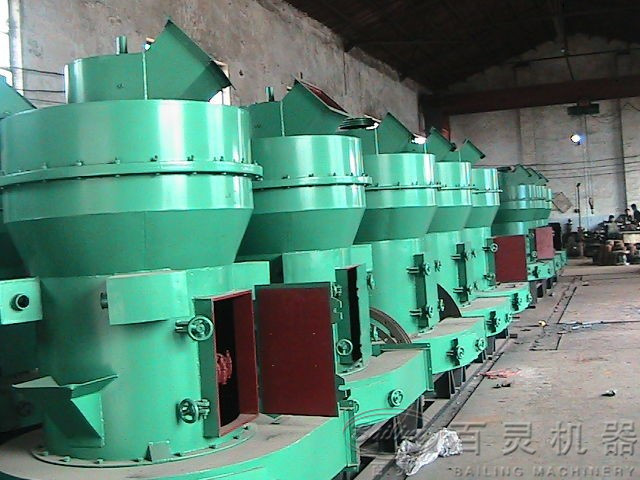

Raymond Grinding Mill
This Raymond grinding mill is designed with an improved plum flower shelf and bearing room. It is engineered with a high-pressure spring device to fully grind materials and increase output.
Technical Specifications
Product Overview
High-Efficiency Grinding Technology
The Raymond grinding mill is a versatile vertical roller mill engineered for grinding non-inflammable and non-explosive materials across the metallurgy, chemical, and mining industries. Featuring an upgraded plum flower shelf and a robust high-pressure spring device, this mill delivers superior crushing power and consistent output. It is specifically designed to handle materials with a Mohs hardness below 7-8 and a moisture content of less than 6%, ensuring a reliable grinding process for various mineral applications.
Material Suitability
- Compatible Materials
- FeldsparClayCalciteTalcBariteFluoriteMarbleLimestoneDolomiteActivated CarbonKaolinPhosphate RockManganeseIron OreCopper Ore
Technical Specifications
Model Performance Data
| Model | Rollers | Max Feed Size (mm) | Power (Kw) | Capacity (t/h) | Weight (t) |
|---|---|---|---|---|---|
| 3R2115 | 3 | 15 | 15 | 0.4-1.6 | 3.6 |
| 3R2615 | 3 | 20 | 18.5 | 0.8-2.5 | 4.2 |
| 3R2715 | 3 | 20 | 22 | 0.9-2.8 | 4.8 |
| 4R3016 | 3 | 20 | 30 | 1.2-3.5 | 8.5 |
| 4R3216 | 4 | 25 | 37 | 1.8-4.5 | 15 |
Key Components
System Components
- Mainframe
- Analyzer
- Blower
- Finished product cyclone separator
- Micro mist cyclone separator
- Air duct
