Product Overview
High-Efficiency WPC Extrusion Technology

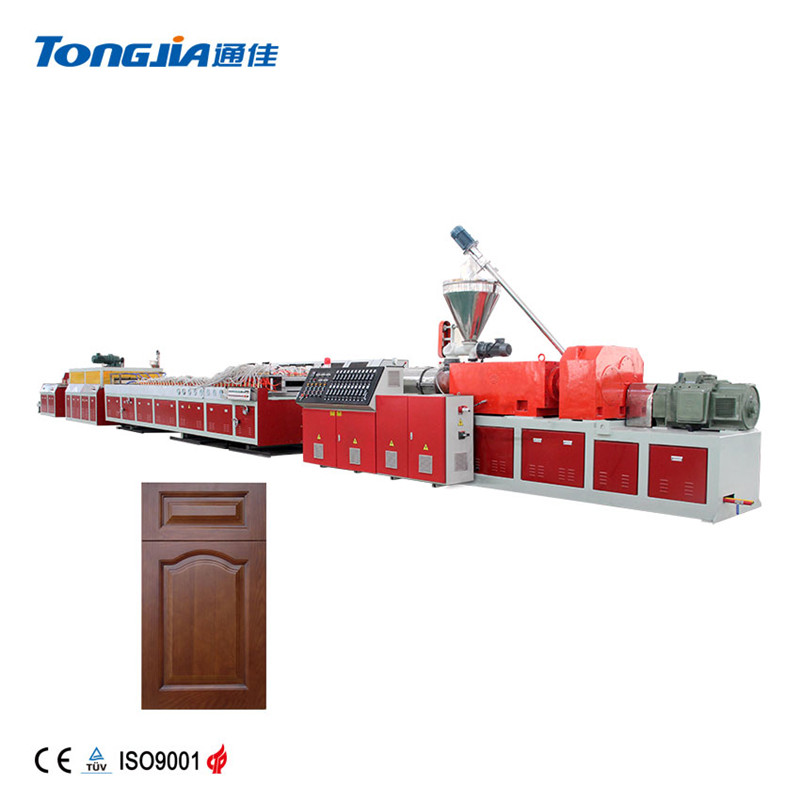

This PVC wood-plastic composite production line utilizes the latest international extrusion technology to symmetrically mix PVC with plant fiber. The system features high-efficiency conical double-screw extruders with specialized cooling to produce durable, damp-proof, and antiseptic door panels. Its versatile design is ideal for manufacturing partition panels, construction templates, container base plates, and furniture components.
Certifications
- Industry Standards
- CETUVISO 9001
Technical Specifications
Extruder Performance Metrics
| Metric | JG-MSB80/156 | JG-MSB92/188 |
|---|---|---|
| Screw Diameter (mm) | 80 | 92 |
| Output (kg/h) | 200 | 300 |
| Main Power (KW) | 55 | 110 |
| Heating Power (KW) | 36 | 45 |
Auxiliary Machine Performance
| Parameter | BF800 | BF1000 |
|---|---|---|
| Max Product Width (mm) | 800 | 1000 |
| Draw-off Force (KN) | 50 | 50 |
| Draw-off Speed (m/min) | 0-3 | 0-2.5 |
| Total Auxiliary Power (KW) | 35 | 40 |
Utility Requirements
Cooling Water Consumption
9 m3/h
BF800 Model
12 m3/h
BF1000 Model
- Compressed Air Pressure
- 0.6 Mpa
