PUR Adhesive Profile Wrapping Machine
This PUR adhesive profile wrapping machine is designed for applying adhesive sheeting to profiles. It ensures precise and consistent adhesive application for high-quality laminated profiles.
Technical Specifications
General Overview
Industrial PUR Profile Sheeting System
This PUR adhesive profile sheeting machine is engineered for high-precision wrapping of diverse materials including PVC, veneer, paper, PP, PET, and PU onto MDF, plastic, or aluminum profiles. Featuring a robust construction with an integrated PUR adhesive supply system, it ensures reliable and durable bonding for professional furniture, door, and window manufacturing. Advanced control systems, including PLC touch screen operation, allow for precise adjustments of adhesive thickness, tension, and profile alignment to optimize production efficiency.
Technical Specifications
Wrapping Capacity
350 mm
Max Wrapping Width
120 mm
Max Processing Thickness
Operational Performance
- Wrapping speed: 0-50 m/min
- Total power: 13 kW
- Main motor: 2.2 kW
- Dusting motor: 0.37 kW x 3
- PUR glue machine power: 8 kW
Machine Configuration
Dimensions and Weight
| Component | Dimensions (L x W x H) |
|---|---|
| Main Machine | 5780 x 900 x 1900 mm |
| Glue Machine | 1030 x 420 x 1600 mm |
- Total Weight
- 3200 kg
Advanced Features
- Integrated Systems

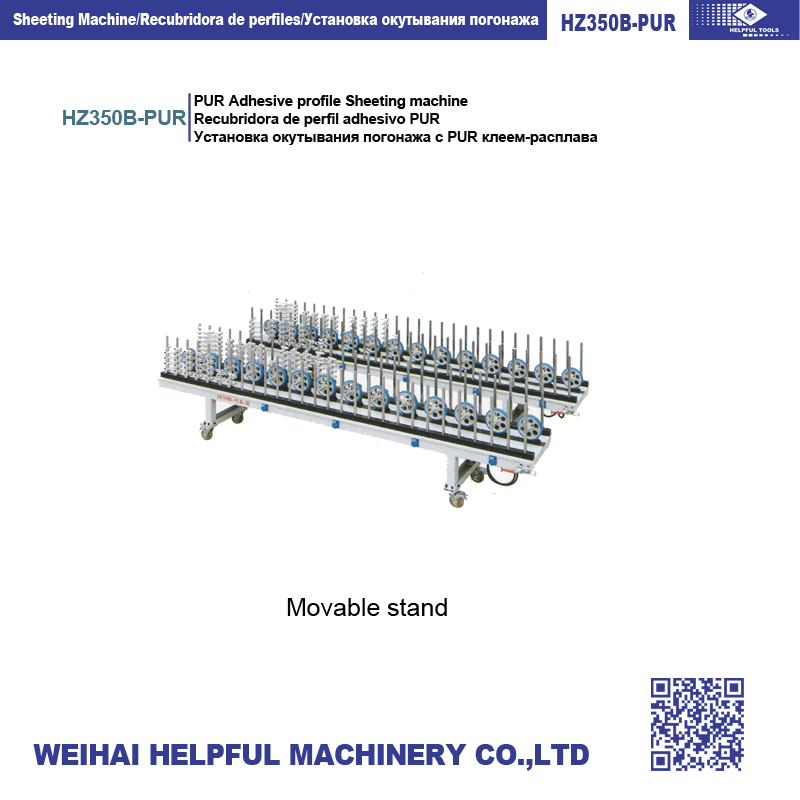

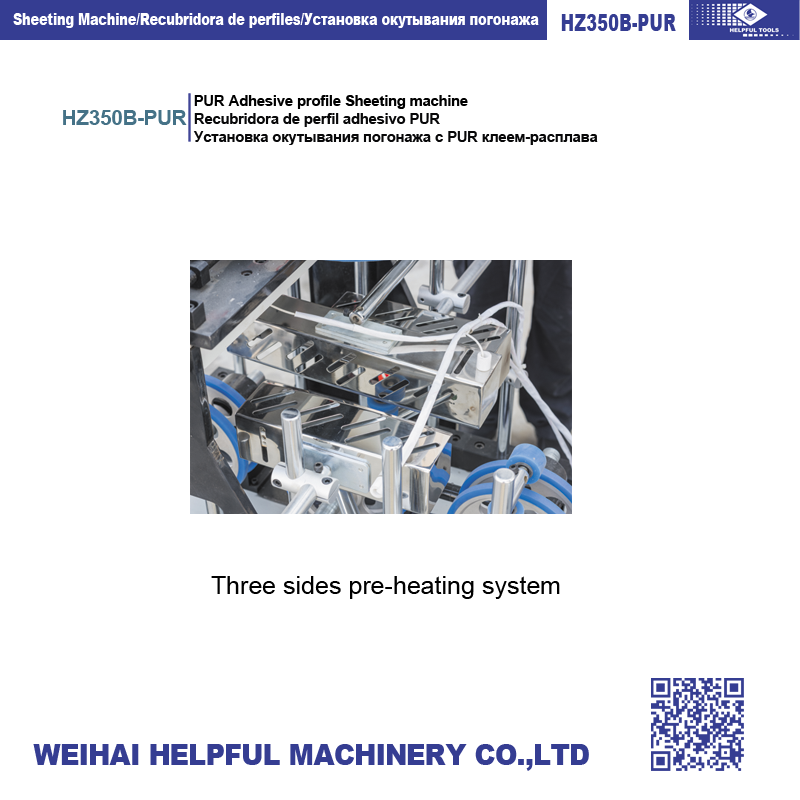

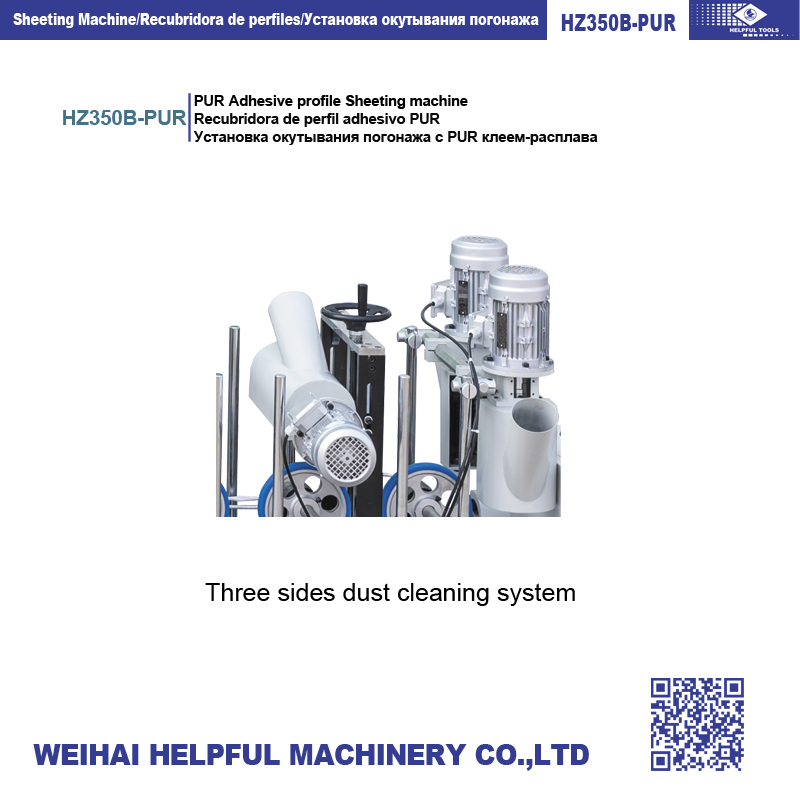

- PUR Adhesive SupplyThree-sided Dust CleaningThree-sided Pre-heatingPLC Touch Screen ControlPhotoelectric CorrectionMovable Stand
