Pulp Thickening Equipment for Slurry Separation
Pulp thickeners are essential for dehydrating fine ore and gangue in beneficiation factories. They are used across metallurgy, chemical, coal, non-metal, and environmental protection industries.
Technical Specifications
Product Overview

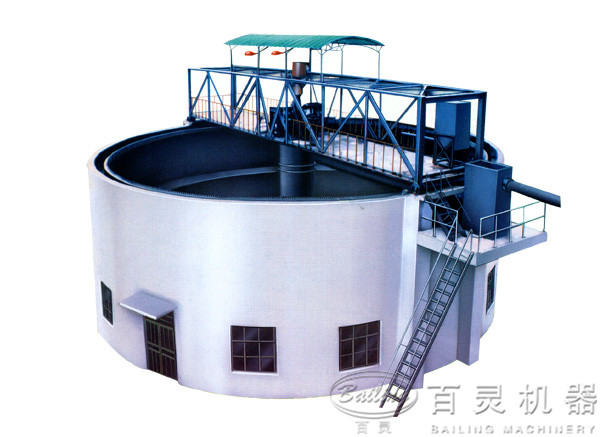

High-Efficiency Pulp Thickening Equipment
This advanced pulp thickening equipment is designed for effective solid-liquid separation in ore and gangue processing. It integrates filtration and compression techniques to significantly increase dehydration efficiency compared to traditional precipitation methods. Featuring automated control facilities, the system is suitable for diverse applications in metallurgy, coal, chemical, and environmental protection industries.
Key Features
Advantages
- Enhanced settling velocity through flocculant addition
- Increased settlement area via inclined plate technology
- Combined filtration and compression stages for higher throughput
- Equipped with comprehensive automated control systems
Technical Specifications
Standard Model Dimensions and Power
| Model | Diameter (m) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|
| NZS-1 | 1.8 | 1.8 | 1.1 |
| NZS-3 | 3.6 | 3.6 | 1.1 |
| NZS-6 | 6 | 6 | 3 |
| NZS-9 | 9 | 9 | 3 |
| NZS-12 | 12 | 12 | 3 |
| NZS-15 | 15 | 15 | 5.5 |
| NZS-18 | 18 | 18 | 5.5 |
Application Sectors
- Target Industries
- MetallurgyChemical IndustryCoal MiningNon-metal BeneficiationEnvironmental Protection
