Technical Specifications
Product Overview
High-Performance Industrial Conveying

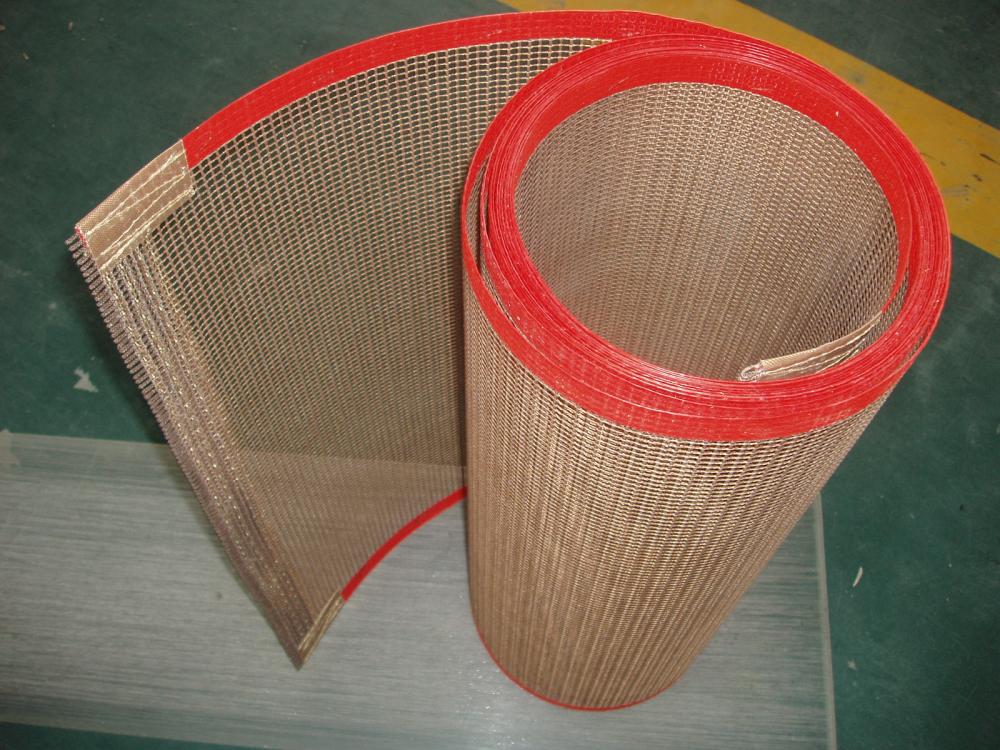

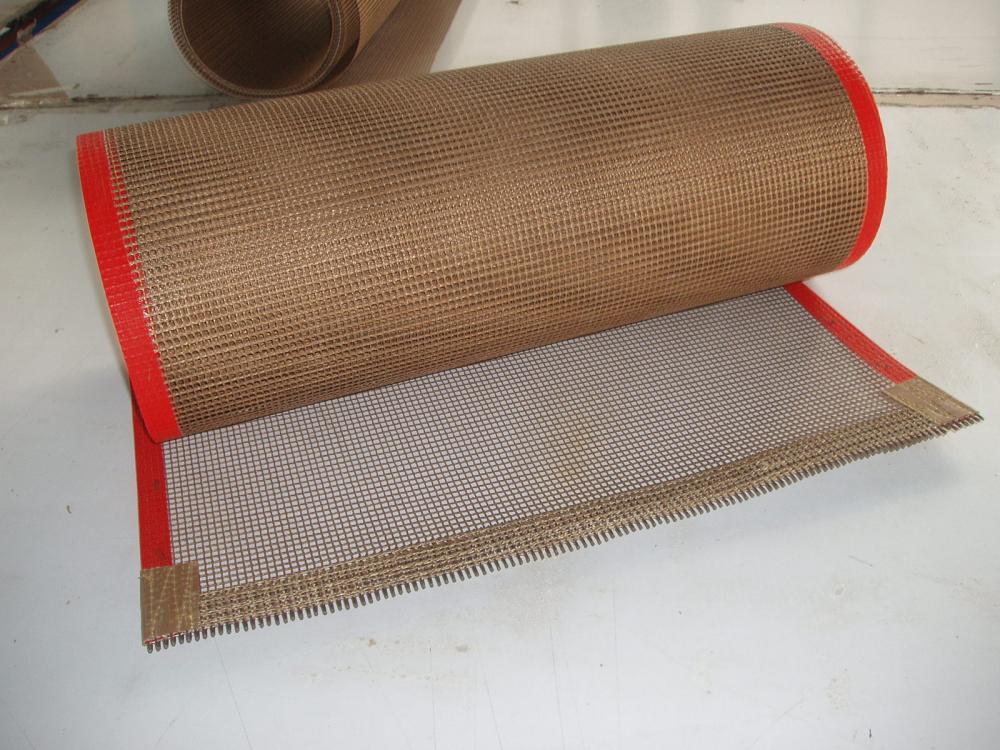

These PTFE-coated open mesh conveyor belts are engineered for demanding industrial applications requiring extreme temperature resistance and efficient airflow. Featuring a durable fiberglass or aramid base, they provide exceptional chemical inertness and non-stick properties for drying, cooling, and heat transfer processes. Designed for dimensional stability and longevity, these belts are essential for food processing, textile manufacturing, and packaging industries.
Technical Data
Operating Characteristics
260 ℃
Max Operating Temp
4,000 mm
Max Belt Width
Detailed Material Matrix
| Item | Mesh Size | Material | Thickness | Weight |
|---|---|---|---|---|
| H601 | 1x1mm | Fiberglass | 0.5mm | 370g/m² |
| H602 | 2x2mm | Fiberglass | 0.7mm | 450g/m² |
| H603 | 4x4mm | Fiberglass (black) | 1.0mm | 400g/m² |
| H604 | 4x4mm | Fiberglass | 1.0mm | 450g/m² |
| H607 | 4x4mm | Kevlar + fiberglass | 1.2mm | 600g/m² |
| H608 | 4x4mm | Fiberglass | 1.2mm | 580g/m² |
- Common Applications
- Food ProcessingTextile ManufacturingScreen PrintingPackagingDrying & Curing
