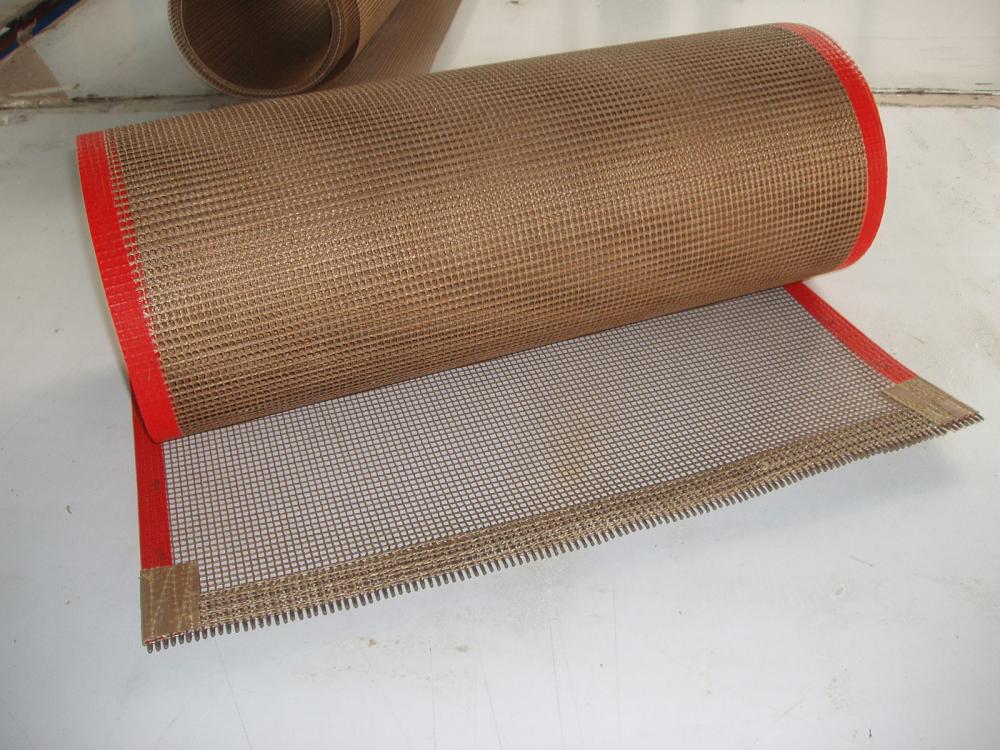

PTFE Open Mesh Conveyor Belt
This PTFE open mesh conveyor belt is constructed from Teflon-coated fiberglass. It is designed for use in drying, curing, and conveying applications where maximum airflow and heat resistance are required.
Technical Specifications
Product Overview
Industrial High-Performance Conveying
These PTFE-coated open mesh conveyor belts are engineered for demanding industrial processes requiring excellent heat resistance and chemical inertness. The open-weave design ensures maximum airflow, making them the ideal solution for drying, curing, and thermal processing applications. With high tensile strength and durable surface coatings, they provide reliable performance in environments ranging from textile manufacturing to food processing.
Technical Properties
Belt Grade Specifications
| Grade | Mesh Size | Weight | Thickness |
|---|---|---|---|
| H601 | 1x1mm | 370g/m² | 0.5mm |
| H602 | 2x2mm | 450g/m² | 0.7mm |
| H603 | 4x4mm | 400g/m² | 1.0mm |
| H604 | 4x4mm | 450g/m² | 1.0mm |
| H607 | 4x4mm | 600g/m² | 1.2mm |
| H608 | 4x4mm | 580g/m² | 1.2mm |
- Temperature Resistance
- -70 to 260°C
- Maximum Belt Width
- 4000 mm
Material Composition
- Reinforcement Materials
- FiberglassKevlar
