Technical Specifications
Overview

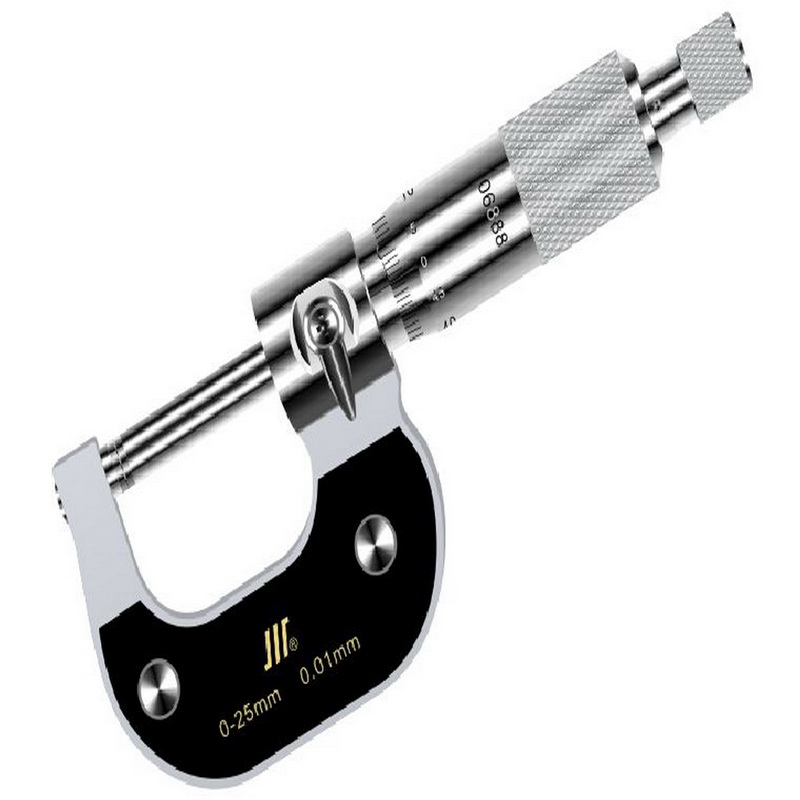

Precision Outside Micrometer
This precision outside micrometer is engineered for accurate dimensional measurements in demanding environments like machining, manufacturing, and quality control. Featuring a hard alloy measuring surface and a robust powder metallurgy frame, it ensures durability and consistent performance. With an adjustable zero position and a resolution of 0.01mm, it provides the reliability needed for professional-grade external dimension measurement.
Technical Specifications
- Measuring Range
- 25 mm
- Resolution
- 0.01 mm
- Key Features
- Hard Alloy SurfacePowder Metallurgy FrameAdjustable Zero Position
Dimensions
Component Dimensions
| Component | Diameter/Value |
|---|---|
| Spindle Diameter | Ø6.5 mm |
| Thimble Diameter | Ø18 mm |
Applications
Suitable Applications
- Machining
- Manufacturing
- Quality Control
- External Dimension Measurement
