Technical Specifications
Product Overview
Precision Measurement Instrument

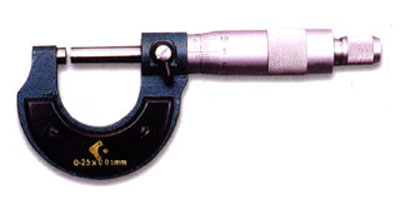

This outside micrometer is a precision instrument designed for accurate measurement of small external distances. Featuring a robust frame and a finely threaded spindle, it ensures high repeatability for industrial applications. Each unit includes clear scale markings for precise readings and comes with necessary accessories for calibration and protection.
Technical Specifications
Measuring Range
0 mm
Min Range
25 mm
Max Range
- Graduation
- 0.01 mm
- Available Systems
- Metric (mm)Inch (0.001")
Model Range Table
Available Micrometer Models
| Article No. | Range | Graduation |
|---|---|---|
| OM01-1011 | 0-25mm | 0.01mm |
| OM01-1021 | 25-50mm | 0.01mm |
| OM01-1031 | 50-75mm | 0.01mm |
| OM01-1041 | 75-100mm | 0.01mm |
| OM01-1051 | 100-125mm | 0.01mm |
| OM01-1061 | 125-150mm | 0.01mm |
| OM01-1071 | 150-175mm | 0.01mm |
| OM01-1081 | 175-200mm | 0.01mm |
| OM01-1091 | 200-225mm | 0.01mm |
| OM01-1101 | 225-250mm | 0.01mm |
| OM01-1111 | 250-275mm | 0.01mm |
| OM01-1121 | 275-300mm | 0.01mm |
