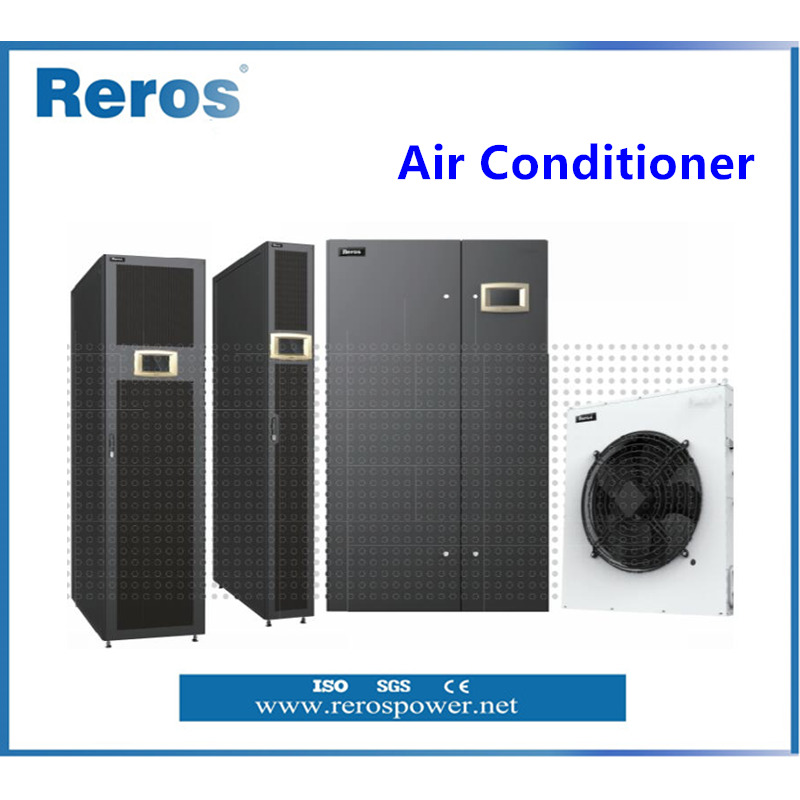

Precision Air Conditioning Unit
This air conditioning unit features both indoor and outdoor units. It has a galvanized sheet metal structure, a powder coating panel, and a soundproof panel.
Technical Specifications
Overview
High-Precision Climate Control
This precision air conditioning unit is engineered for critical environments like data centers, server rooms, and laboratories where stable temperature and humidity are essential. It features a robust galvanized sheet metal structure with soundproof panels and high-efficiency G4 filtration to maintain air quality. Controlled by an advanced micro-processor, the system ensures reliable operation through intelligent compressor management and comprehensive safety monitoring.
Key Features
Structural Features
- Galvanized sheet metal structure with powder coating
- Soundproof paneling for noise reduction
- Double suction centrifugal fan unit
- Standard G4 filter (F5-F8 optional) with 90.1% efficiency
- Micro-processor control with 'first start, first stop' logic
- Integrated thermal expansion valve and high/low pressure safety switches
Applications
- Suitable Environments
- 3G/4G/5G Base StationsData CentersOutdoor Equipment RoomsSubstationsCommunication RoomsLaboratoriesWarehouses
Performance Metrics
Cooling Performance
8 kW
Min Cooling Capacity
101 kW
Max Cooling Capacity
380 V
Rated Voltage
Technical Specifications
Model Range Specifications
| Model Series | Total Cooling (kW) | Air Volume (m3/h) | Compressors | Noise dB(A) |
|---|---|---|---|---|
| RCU/S 0075 | 8.0 | 2200 | 1 | 52 |
| RCU/S 0250 | 25.0 | 5750 | 1 | 57 |
| RCU/D 0356 | 35.6 | 11550 | 2 | 60 |
| RCU/D 1010 | 101.0 | 28000 | 2 | 65 |
Compliance & Quality
Compliance Standards
ISO 9001ISO 14001ISO 45001CEIEC 204-1EN60204-1CEN-EN Filter Standard
Operational Parameters
- External Static Pressure
- 350 Pa
- Power Supply
- 380V / 3N / 50Hz
