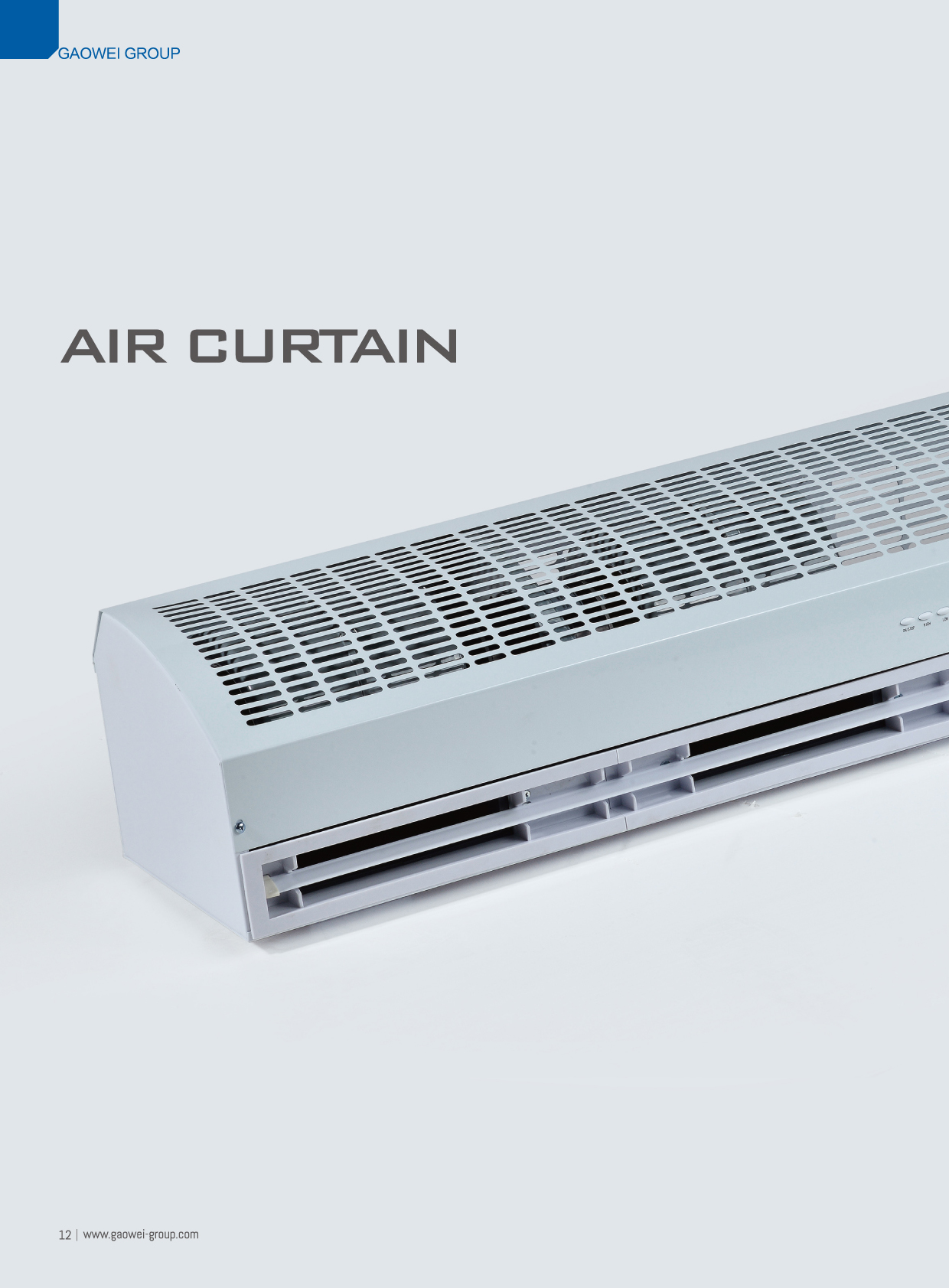

Air Curtain for Climate Control
Air curtains create a protective air barrier, separating two distinct environments. They are designed for installation above doorways and openings, preventing the transfer of heat, humidity, and airborne particles.
Technical Specifications
Overview
High-Efficiency Climate Control
This industrial-grade air curtain is designed to create a powerful barrier over doorways up to 4 meters high, effectively separating indoor and outdoor environments. By preventing air transfer, it minimizes energy loss while keeping out dust, insects, and humidity. Available with advanced brushless DC motor options, the unit offers an energy-efficient, low-noise solution suitable for various commercial and industrial applications.
Key Features
- Key Features
- Energy SavingHigh Temperature ResistanceLow Noise OperationBrushless DC Motor OptionMetal Housing
Performance Metrics
Max Installation Height
4 m
Max Height
Technical Specifications
Model Specifications
| Model | Power | Air Volume | Rotation Speed |
|---|---|---|---|
| AD-900 | 230 | 1,000 | 1,020 |
| AD-1000 | 230 | 1,000 | 1,020 |
| AD-1200 | 305 | 1,200 | 1,360 |
| AD-1800 | 450 | 2,000 | 2,040 |
| AD-900DC | 210 | 2,000 | 2,000 |
| AD-1000DC | 210 | 2,000 | 2,000 |
| AD-1200DC | 210 | 2,000 | 2,000 |
| AD-1800DC | 315 | 3,000 | 2,000 |
- Voltage Rating
- 220 V
- Frequency
- 50 Hz
