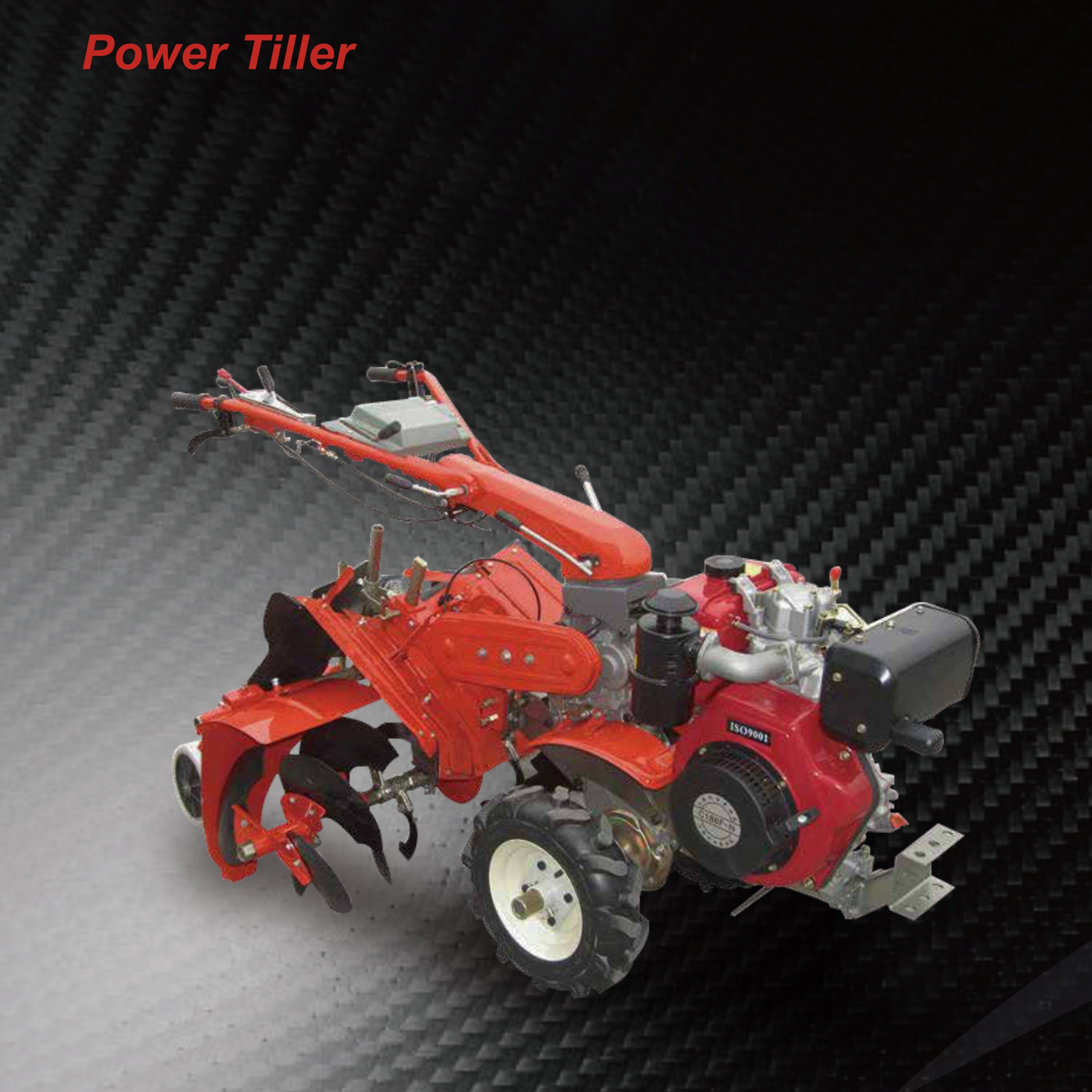

Power Tiller for Soil Preparation
This power tiller is a versatile machine for preparing soil and cultivating land. It efficiently tills the soil, breaking it up to create a fine seedbed for planting.
Technical Specifications
Overview
Versatile Soil Preparation Solution
This multifunctional power tiller is engineered for precision soil preparation, offering rotary, ridging, and filming capabilities in a single unit. Designed for agricultural efficiency, it features a robust engine and adjustable tilling depth and width to accommodate diverse crop requirements and soil conditions. Its ergonomic construction ensures operator comfort while promoting healthy root growth through effective soil aeration.
- Certifications
- ISO9001
Engine Specifications
Core Engine Performance
8.6 PS
Rated Output
406 cc
Displacement
3.5 L
Fuel Tank
Engine Details
- Model: 186FS
- Type: Single cylinder, vertical, air-cooled, 4-cycle
- Starting System: Recoil start / Electric start
- Lubricating Oil Capacity: 1.65 L
Operational Performance
Tillage Capabilities
| Operation | Width (mm) | Depth (mm) |
|---|---|---|
| Plough Tillage | 220-270 | 100-180 |
| Rotary Tillage | 400 | 100-120 |
| Ridging Tillage | 400-900 | 100-600 (Height) |
Transmission & Speed
- Gear Configuration: F3, R1 (handrail reverse, F1, R3 gear)
- Forward Speeds: 1.37 km/h (1), 4.15 km/h (2), 10.3 km/h (3)
- Reverse Speed: 1.68 km/h (1)
- Output Speed: 700 rpm
Physical Dimensions
Physical Dimensions
- Length: 1770 mm
- Width: 645 mm
- Height: 1040 mm
- Weight: 140 kg
- Minimum Turning Radius
- 600 mm
