Technical Specifications
Overview
Professional Soil Preparation Solution

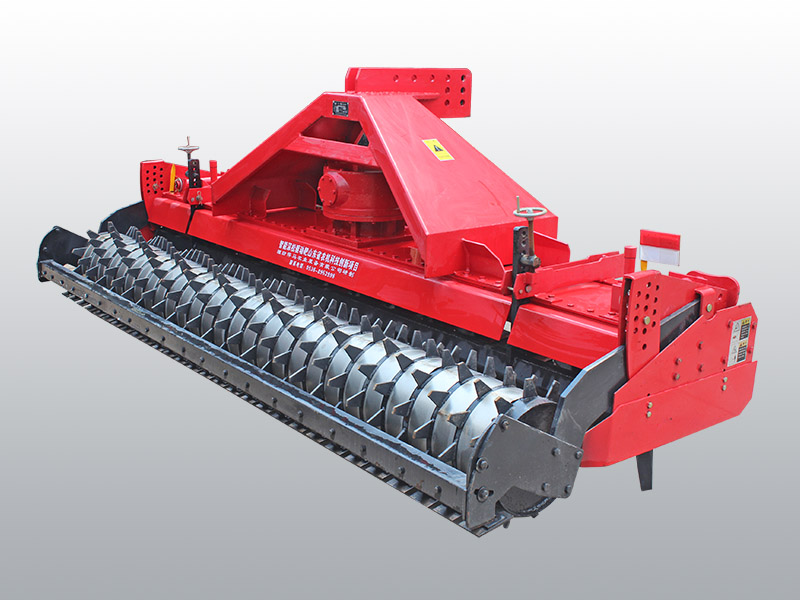

This power harrow is designed for efficient land cultivation and seedbed preparation, capable of breaking up soil without damaging its structure. It features a robust gearbox and thickened spline shafts for enhanced durability under demanding conditions. With its multi-purpose design, it is ideal for primary tillage, stubble control, and preparing optimal seedbeds for various economic crops.
Technical Specifications
Compatible Tractor Power
50 HP
Minimum HP
280 HP
Maximum HP
Model Specifications
| Parameter | Value |
|---|---|
| Working Width | 2.5 m |
| Working Depth | 25 cm |
| Number of Rotors | 10 |
| Weight | 1200 kg |
| Blade Type | Spiral |
- Working Width Range
- 1.25m - 4.7m
Key Features
Operational Highlights

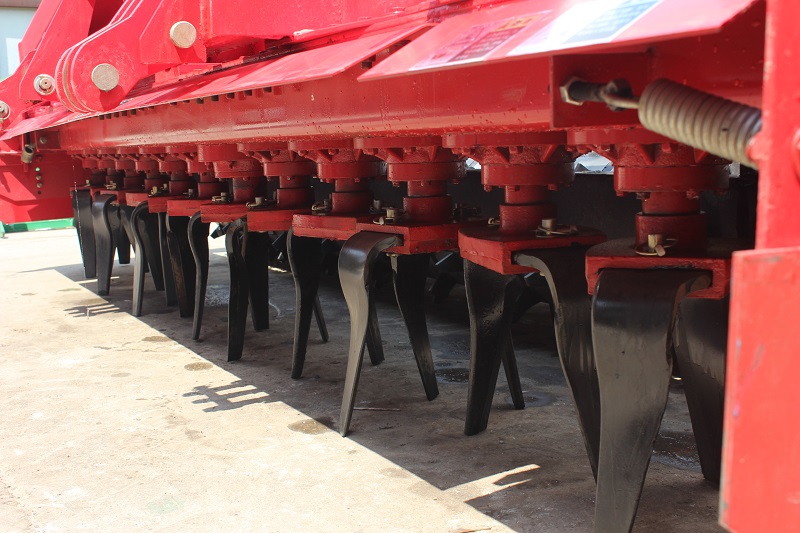

- Deep soil breaking without structure damage
- Even soil distribution, avoiding large clods
- Integrated flat soil plate and roller for compaction
- Elastic tooth overload clutch for protection
- Quick-change cutter head system
- Durability & Construction
- Strengthened GearboxThickened Spline ShaftsSuper Large Type BearingsHeavy-duty Rotor Construction
