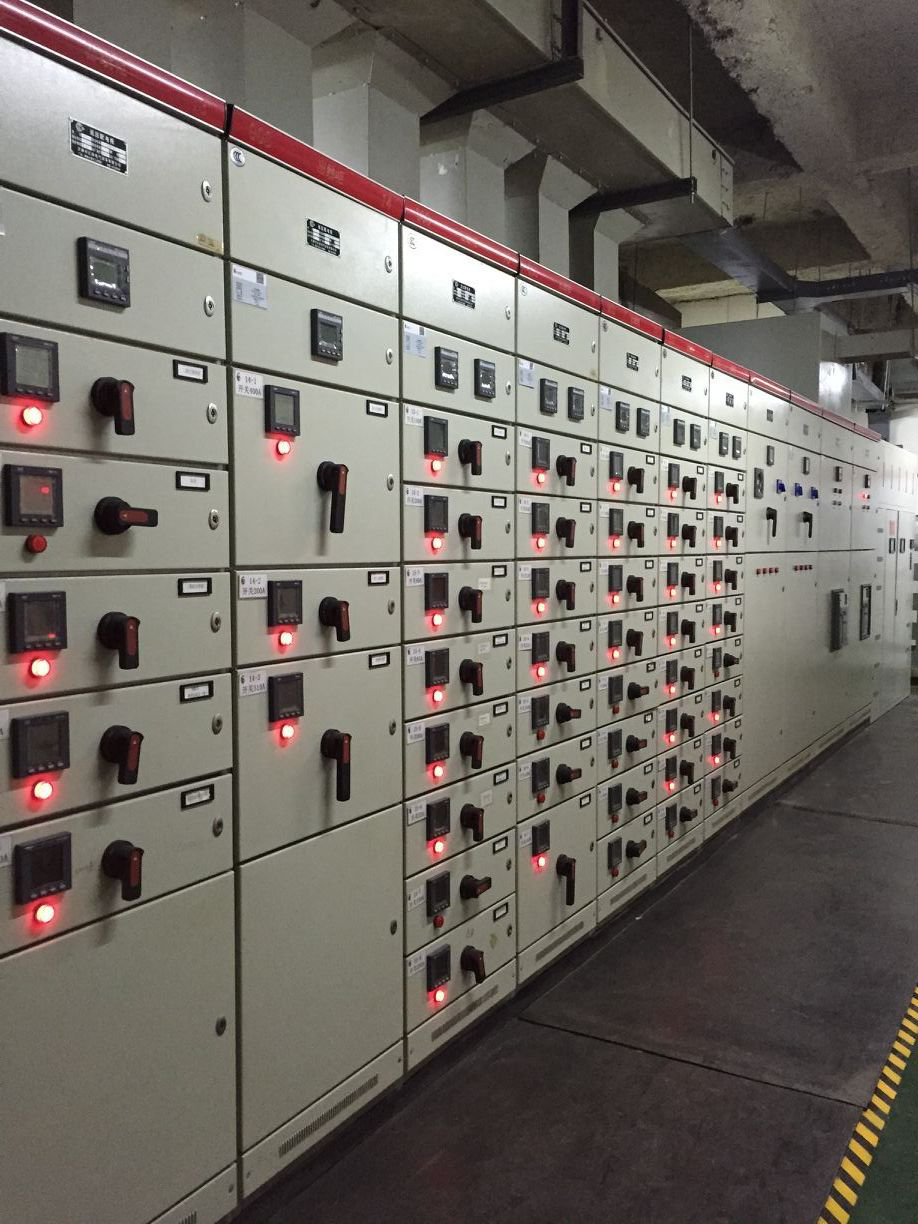

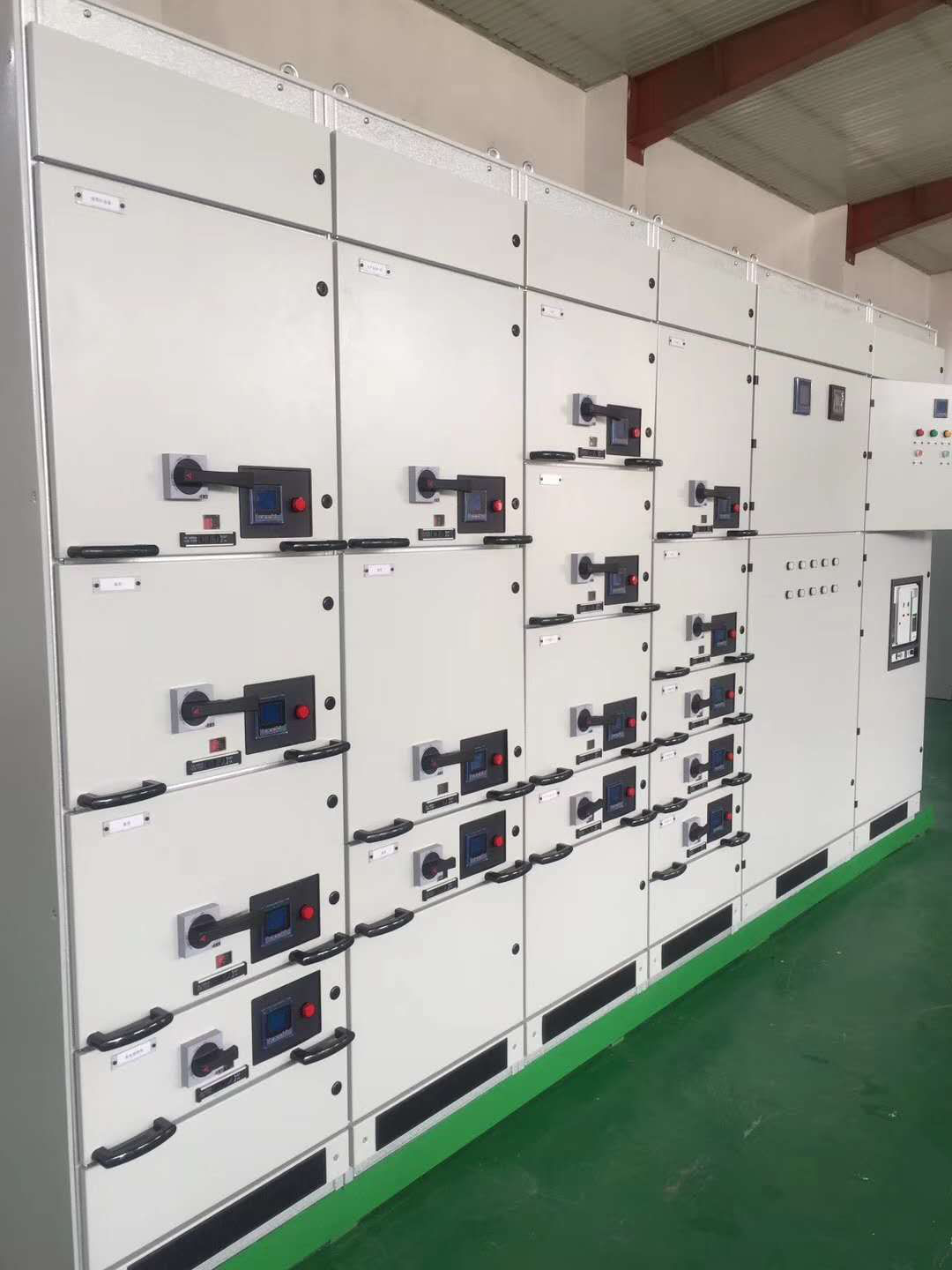

Power Distribution Switchgear Cabinet
This power distribution switchgear cabinet is designed for efficient power distribution and control. It features interconnected switchgear with multiple compartments, switches, indicators, and monitoring devices for reliable power management and circuit protection.
Technical Specifications
Overview
Industrial Power Distribution Solution
This power distribution switchgear cabinet is designed for reliable electrical management in industrial and commercial environments. It features a robust, enclosed metal structure that houses measuring instruments, protective appliances, and auxiliary equipment. The system supports both manual and automatic circuit control, offering essential protection against faults while providing real-time parameter monitoring.
Technical Specifications
Rated Current Capacity
4,000 A
Primary Switch
2,000 A
Secondary Switch
Protection Features
- Circuit breaking on fault
- Abnormal operation alarm
- Overload protection
- Operational Modes
- Manual ControlAutomatic Control
Design & Construction
Monitoring Capabilities
Digital DisplaysIndicator LightsParameter Adjustment
Connectivity Components
- Terminal blocks
- Color-coded wiring
- Multiple outlets
- Enclosure Type
- Closed or semi-enclosed metal cabinet
