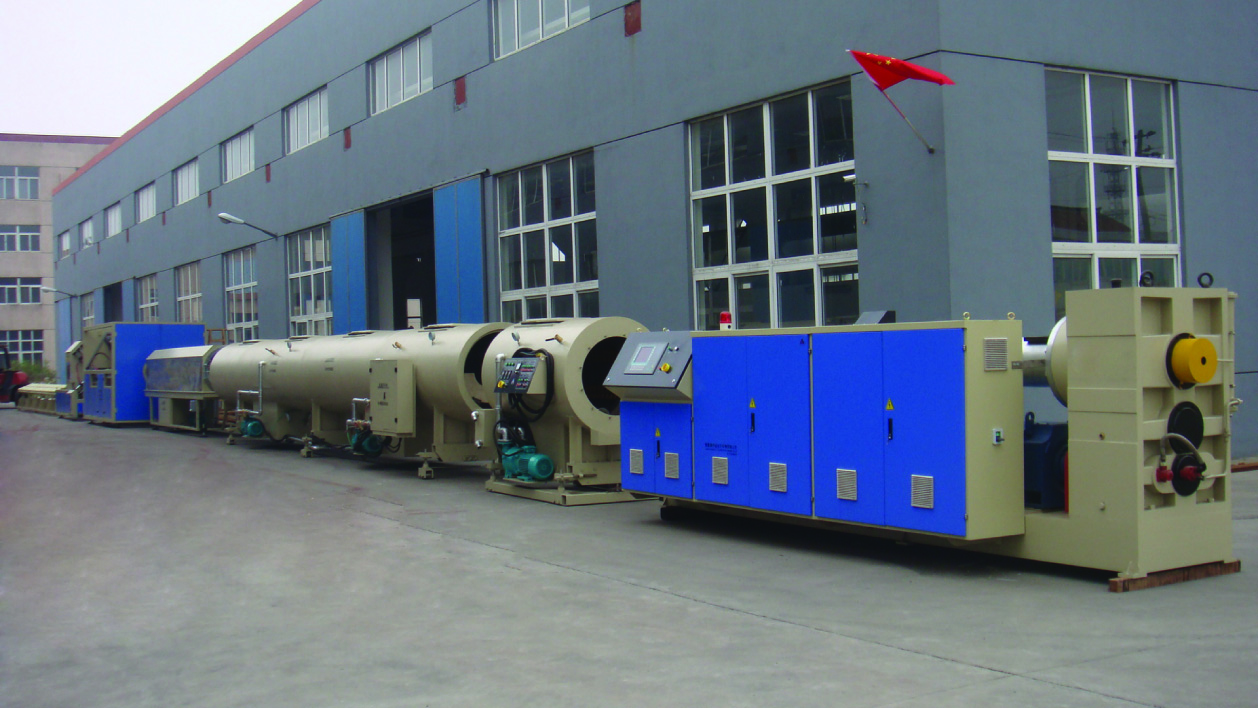

Plastic Pipe Production Line
This production line manufactures plastic pipes from various polymers. It can use PE, PP, and PVC to create a range of plastic pipes.
Technical Specifications
Overview
High-Efficiency Plastic Pipe Extrusion
This state-of-the-art plastic pipe production line is engineered for high-volume manufacturing of durable piping solutions. Designed to handle various polymers including PE, PP, and PVC, the system integrates advanced extrusion, vacuum shaping, cooling, hauling, and cutting units. It offers a cost-effective solution for producing high-quality pipes suitable for diverse environmental and energy-related applications.
- Compatible Materials
- PEPPPVC
Components
System Components
- Extruder
- Vacuum Shaping Unit
- Cooling System
- Haul-off Device
- Cutter
- Stirring-up Rack
Single Screw Extrusion Specs
Performance Metrics (Single Screw)
| Model | Capacity (kg/h) | Screw Dia (mm) | Main Motor (kw) |
|---|---|---|---|
| HIM-SJ-60 | 100~200 | 60 | 90 |
| HIM-SJ-75 | 150~250 | 75 | 110 |
| HIM-SJ-90 | 200~300 | 90 | 160 |
| HIM-SJ-120 | 300~400 | 120 | 315 |
Pipe Diameter Range
20 mm
Min Diameter
500 mm
Max Diameter
