Technical Specifications
Product Overview

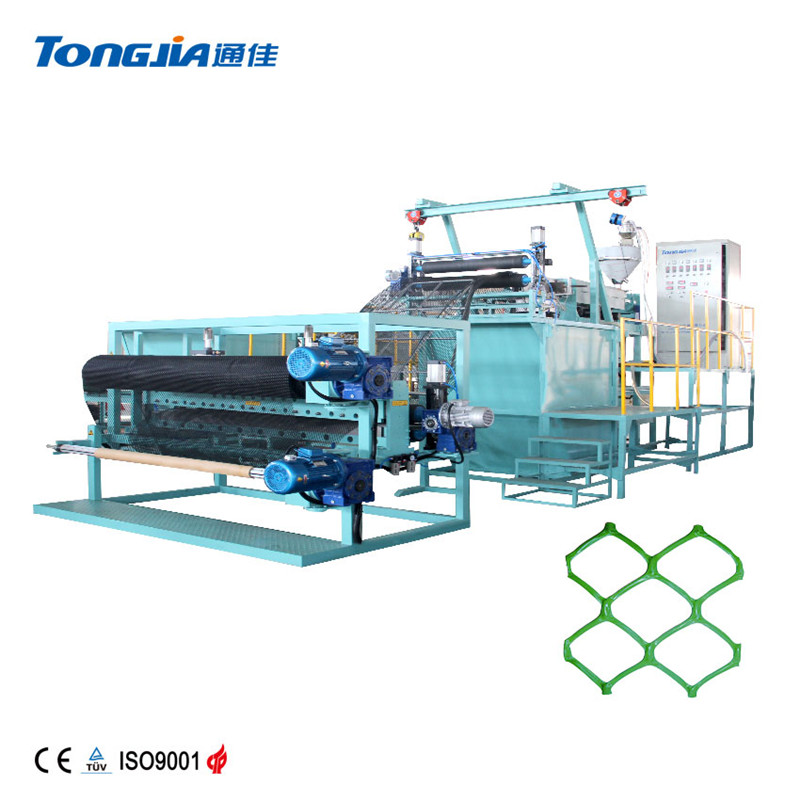

Versatile Net Production Solution
This specialized production line is engineered for the manufacturing of high-quality PE plastic rigid flat nets and various geonets. By utilizing interchangeable dies and sizing devices, the system allows for the flexible production of diverse net structures and types. These nets are essential for applications ranging from roadbed reinforcement and dam protection to agricultural plant supports and mine roof safety.
Certifications
- Quality Standards
- CETUVISO 9001
Technical Specifications
Model Specifications
| Model | Extruder (Ø) | Screw Speed (r/min) | Product Width (mm) | Installed Capacity (KN/m) | Weight (T) |
|---|---|---|---|---|---|
| JG-YZW65H | 65/28 | 5-40 | 2,000 | 60 | 5 |
| JG-YZW90 | 90/30 | 5-30 | 2,500 | 86 | 6 |
| JG-YZW120 | 120/33 | 5-25 | 3,000 | 150 | 8 |
| JG-YZW150 | 150/33 | 5-20 | 4,000 | 200 | 10 |
Dimensions (L*W*H)
- JG-YZW65H: 9.6 x 2.9 x 3.4 m
- JG-YZW90: 12 x 3.1 x 3.5 m
- JG-YZW120: 16 x 3.8 x 4.2 m
- JG-YZW150: 18 x 5.2 x 4.8 m
Applications
Primary Applications
Roadbed ReinforcementDam ProtectionPlant SupportMine Roof SafetyAquacultureGeocell Manufacturing
