Parking Assist Sensor for Vehicles
This parking assist sensor is designed to detect obstacles and aid drivers in parking. It provides audible and visual alerts, ensuring safe and efficient parking.
Technical Specifications
Product Overview
Precision Parking Assistance
This high-performance parking assist sensor utilizes advanced ultrasonic technology to provide precise obstacle detection. Engineered for reliability, it integrates seamlessly into vehicle parking assistance systems to deliver accurate distance measurements. Its robust construction ensures consistent performance and safety during parking maneuvers, making it an essential component for modern automotive safety.
Technical Specifications

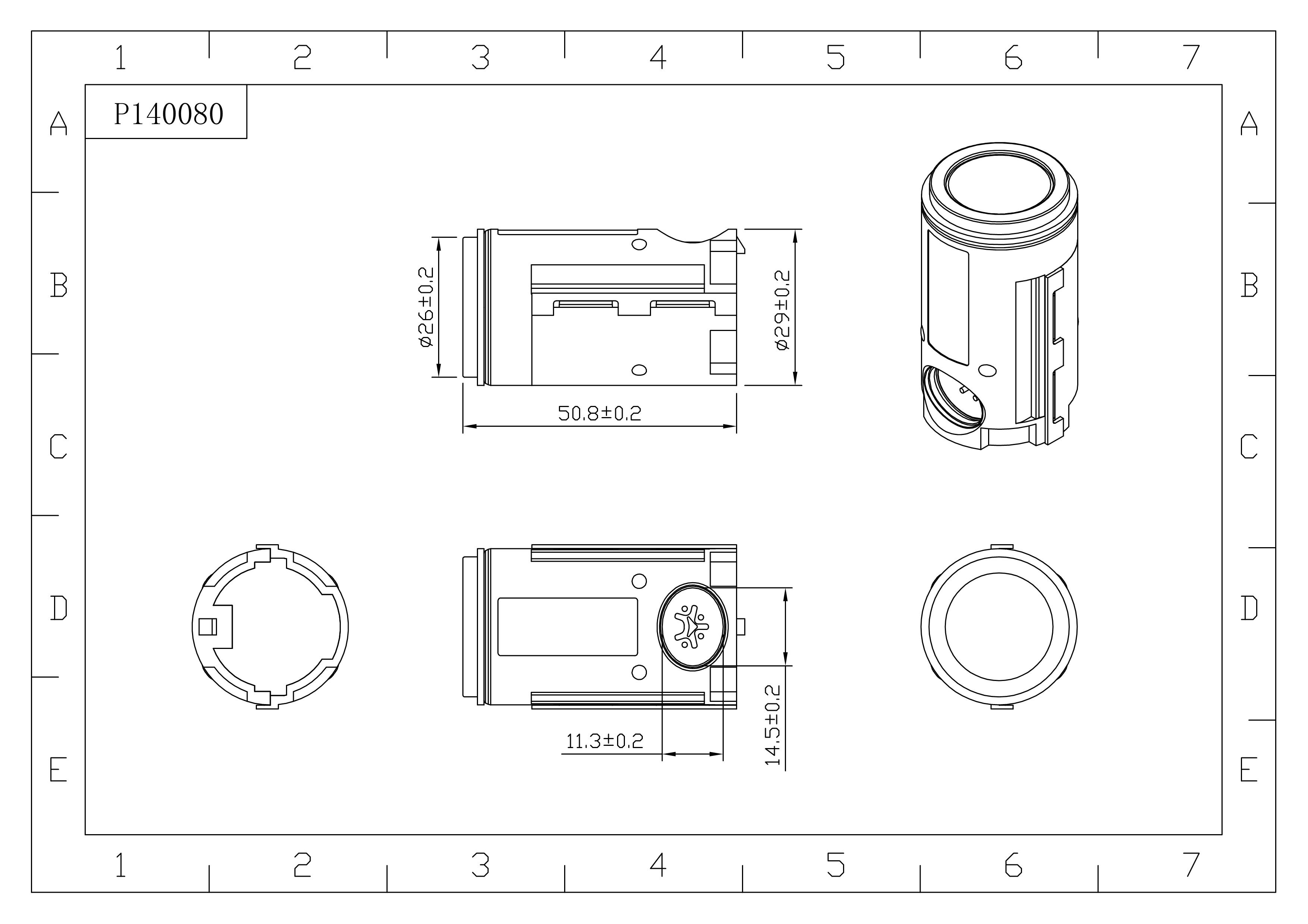

Dimensional Specifications
| Measurement | Value (mm) |
|---|---|
| Diameter 1 | Ø26 ± 0.2 |
| Diameter 2 | Ø29 ± 0.2 |
| Total Length | 50.8 ± 0.2 |
| Offset A | 11.3 ± 0.2 |
| Offset B | 14.5 ± 0.2 |
Ingress Protection
IP67
- Compatible Part Numbers
- A001542591800154259180263003013
Quality & Compliance
Certifications
- IATF 16949:2016
- ISO 14001:2015
- OHSAS 18001:2007
- RoHS Directive 2011/65/EU

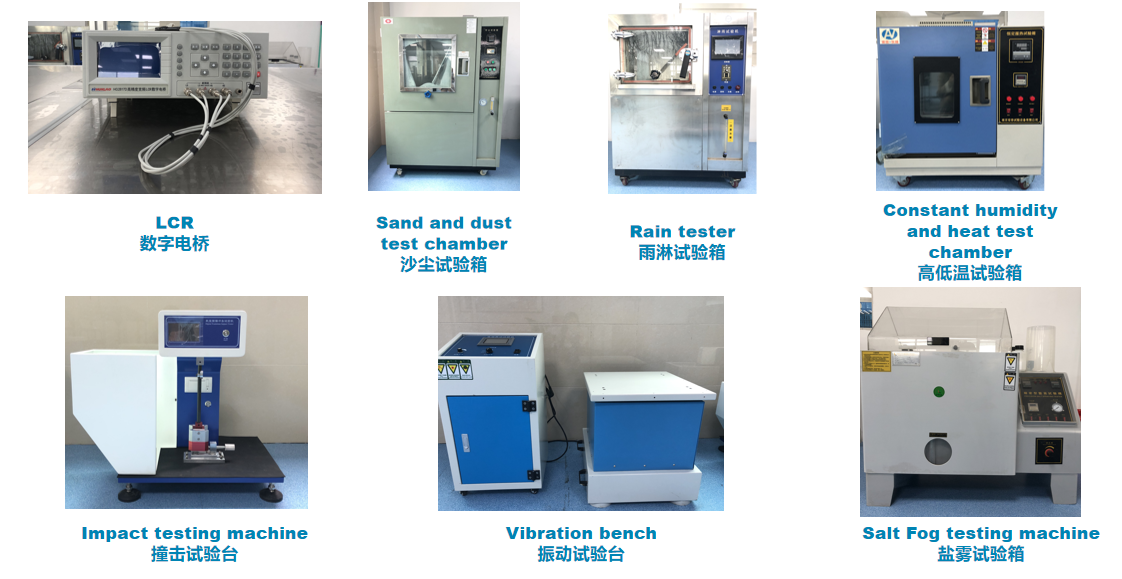

Quality Testing Standards
- Electrical Component Analysis (LCR)
- Sand and Dust Resistance
- Rain Resistance
- Constant Humidity and Heat
- Impact Testing
- Vibration Testing
- Salt Fog Corrosion Testing
